Product Description

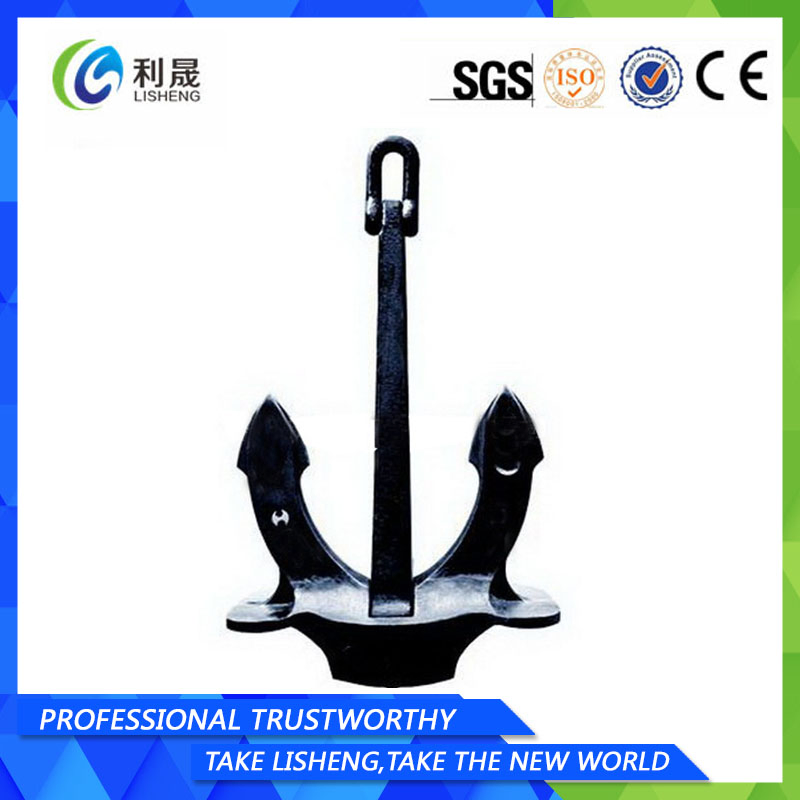

2015 newest cast steel hall ship anchor

PRODUCT DETAILS
Service	Your inquiry will be replied within 12 hours.
Product name	2015 newest cast steel hall ship anchor
Place of origin	Shandong,China.
Certificate:	ABS, LR, BV, NK, DNV, RINA, RS, IRS,CCS
Material	Steel
Size	50kg-20000kg
Surface	black bitumen paint
Stock	There are emergency stocks for regular sizes.
Sample	The sample is free,the freight should on your account before your first order.
Payment term	30% advanced by T/T,the balance should be paid after see the copy of the B/L;L/C at sight;Western Union.
Delivery time	Usually within 15-30days according to your required size&quantity.
Using range	freighter,warship,passenger ships,boat,etc.

Advantageous Service.
1. Customers' special need is welcomed,from mold to samples within 10 days.
2. With 10 years' exporting experience, all inquiries responded within 12 hours.
3. Exported to over 50 countries, products test reports provided on request.
4. ISO,CE Certificated, product quality strictly controlled by QC depart.
5. No MOQ limit, Timely delivery, High quality and competitive prices.
6. Our Creed: Better because of Specialization.
We are professional supplier for anchors ,we have professional team and high efficent working ablity ,we could try our best to meet your any requirements.
How happy we are, To meet friends from afar!
We are a new company with young and studious team. But, we have done

export and import about 11 years from 2003 till now.
Click Here To Visit Our Home Page~And You Will Find More surprises~~
http://lisheng-trading.en.made-in-china.com/

LS HALL ANCHOR
ANCHOR WEIGHT	A			L	L1	H1	B	B1
(kg)	A	B	C	L	L1	H1	B	B1
50	656	594	467	466	326	72	192	214
75	750	683	536	530	372	82	208	244
100	825	760	590	584	410	90	228	270
125	915	817	630	631	443	97	244	290
150	945	866	675	670	470	103	260	308
180	1004	920	718	710	500	109	277	328
200	1040	955	740	736	520	114	286	340
240	1105	1019	788	782	550	120	305	362
250	1120	1035	800	796	560	123	310	366
300	1190	1095	850	844	595	130	328	388
350	1250	1150	900	890	625	137	344	408
360	1265	1160	898	896	632	138	348	412
380	1290			914	640	141	354	420
400	1310	1200	930	930	650	143	360	428
420	1330	1225	950	944	666	145	366	434
450	1360	1255	972	970	675	149	376	444
480	1390	1282	995	988	696	152	384	454
500	1410	1300	1000	1000	700	154	390	460
570	1475	1355	1042	1046	736	160	406	480
600	1500	1380	1060	1060	745	164	414	490
660	1550	1422	1105	1098	774	170	426	504
700	1580	1450	1130	1120	785	172	436	516
780	1635	1506	1159	1160	818	178	452	534
800	1650	1520	1170	1170	820	180	456	540
900	1720	1580	1225	1220	855	188	474	560
1000	1780	1635	1260	1260	885	194	490	580
1140	1860	1705	1316	1320	925	204	512	606
1250	1910	1760	1360	1360	955	209	526	624
1290	1940	1778	1380	1376	964	212	534	632
1440	2010	1844	1448	1426	1000	220	554	654
1500	2030	1870	1475	1450	1015	222	560	664
1590	2080	1906	1511	1475	1034	228	574	676
1740	2145	1966	1571	1520	1065	234	590	698
1750	2140	1970	1575	1520	1070	134	590	700
2000	2240	2060	1615	1590	1120	245	618	732
2100	2280	2093	1651	1618	1134	250	628	742
2250	2330	2140	1705	1650	1160	254	642	760
2500	2410	2220	1800	1710	1200	263	666	788
2640	2460	2259	1843	1746	1224	270	678	802
3000	2560	2360	1970	1820	1275	280	708	836
3300	2650	2435	1890	1882	1318	290	730	864
3500	3700	2480	2012	1920	1345	294	746	880
4000	2820	2600		2000	1400	308	780	920
4050	2840	2610	2125	2014	1412	310	782	924
4500	2940	2695	2110	2080	1455	320	808	956
5000	3050	2790	2170	2150	1510	332	830	992
5250	3095	2845	2205	2196	1540	338	854	1008
5610	3165	2910	2255	2245	1574	346	872	1030
6000	3230	2970	2310	2290	1610	354	890	1056
6450	3310	3045	2365	2345	1650	362	912	1082
6900	3384	3110	2420	2400	1686	370	932	1106
7350	3455	3180	2470	2450	1722	378	952	1130
7800	3525	3240	2520	2500	1758	386	972	1152
8300	3600	3310	2575	2550	1794	394	992	1176
8700	3655	3360	2615	2590	1822	400	1008	1196
9300	3740	3435	2675	2650	1864	410	1030	1222
9900	3815	3510	2730	2705	1902	418	1052	1248
10500	3890	3580	2785	2760	1940	426	1072	1272
11100	3965	3645	2835	2810	1976	434	1092	1296
11700	40355	3710	2885	2860	2012	442	1112	1320
12300	4105	3775	2935	2910	2045	450	1130	1342
12900	4170	3835	2980	2955	2078	456	1148	1363
13500	4230	3890	3025	3000	2110	464	1160	1384
14100	4295	3950	3070	3045	2140	470	1184	1404
14700	4355	4005	3115	3085	2170	478	1200	1424
15400	4420	4065	3165	3135	2204	484	1218	1446
16100	4490	4125	3210	3180	2238	492	1236	1458
16900	4560	4195	3260	3235	2274	500	1256	1492
17800	4640	4270	3320	3290	2314	508	1278	1518
18800	4725	4345	3380	3350	2356	518	1302	1546
20000	4825	4435	3450	3420	2405	530	1330	1578
