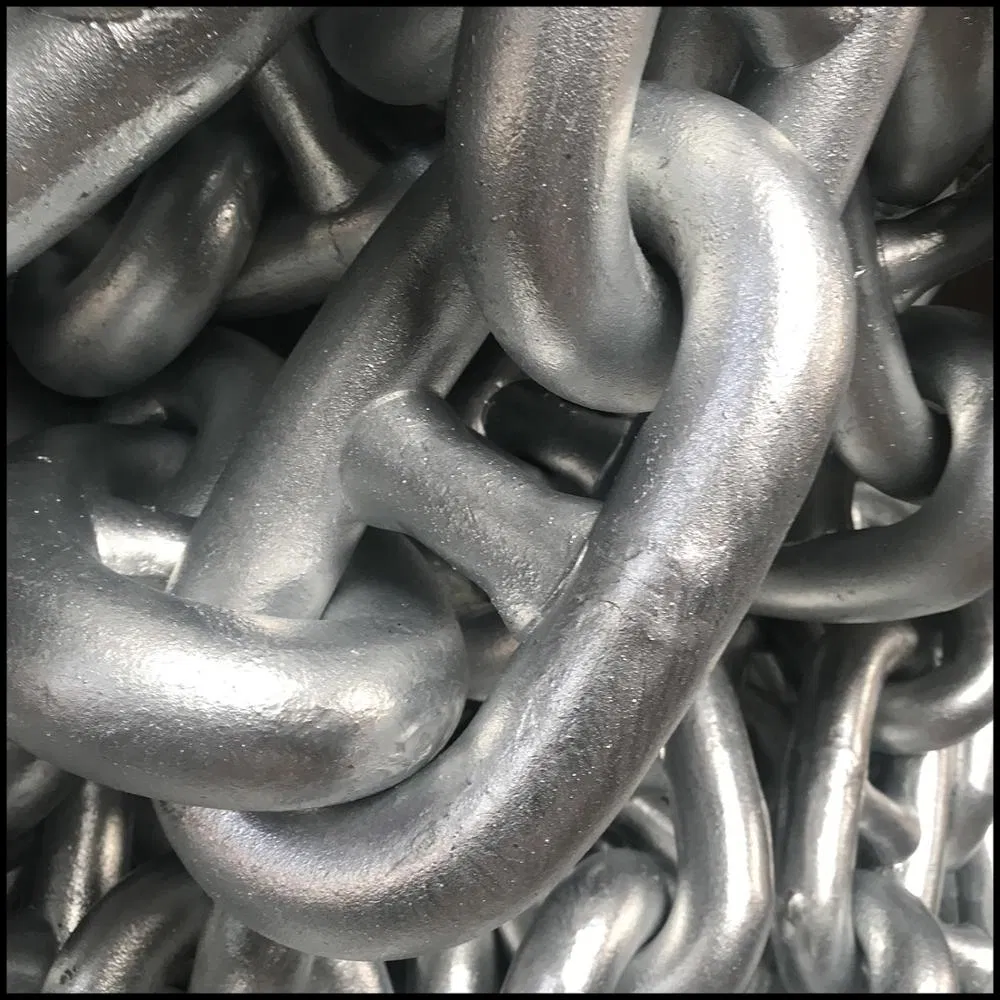

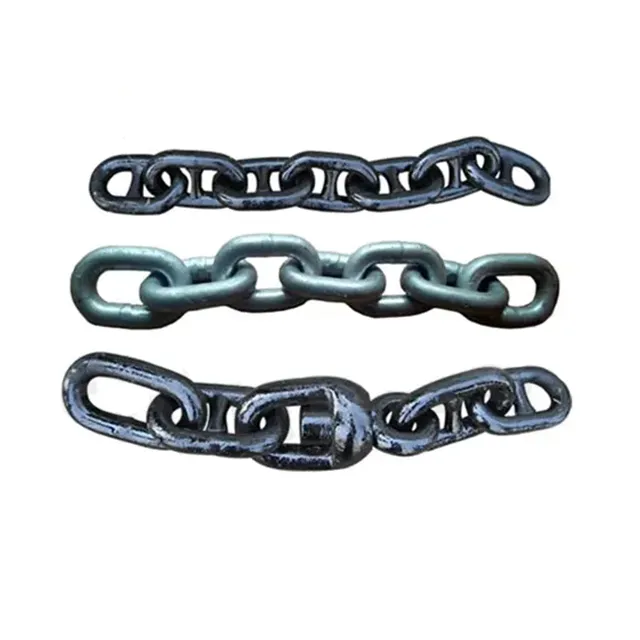

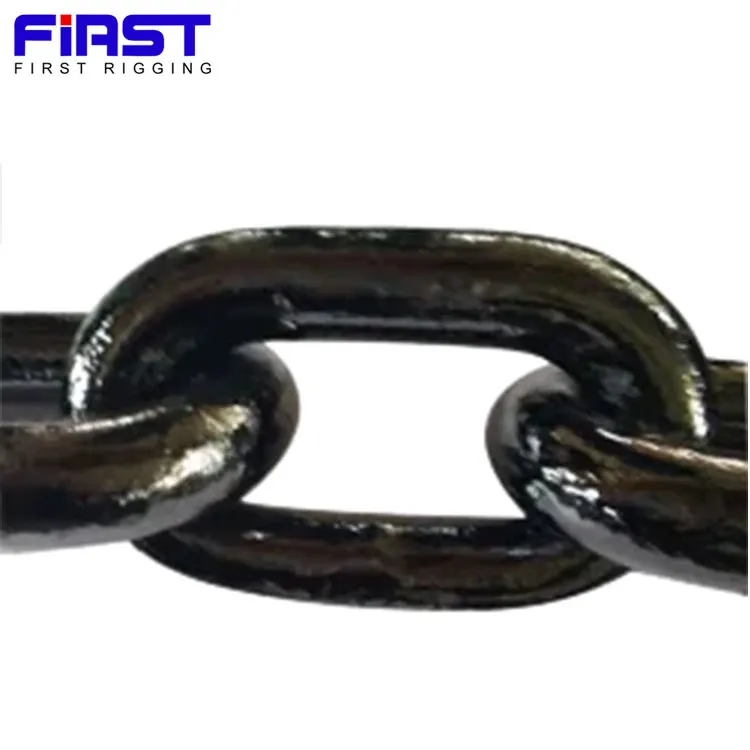

Factory Wholesale High Strength Stud Link Anchor Chain

Product Description

Size: 12.5mm-70mm

Material: Alloy steel, high tensile, heat treated.

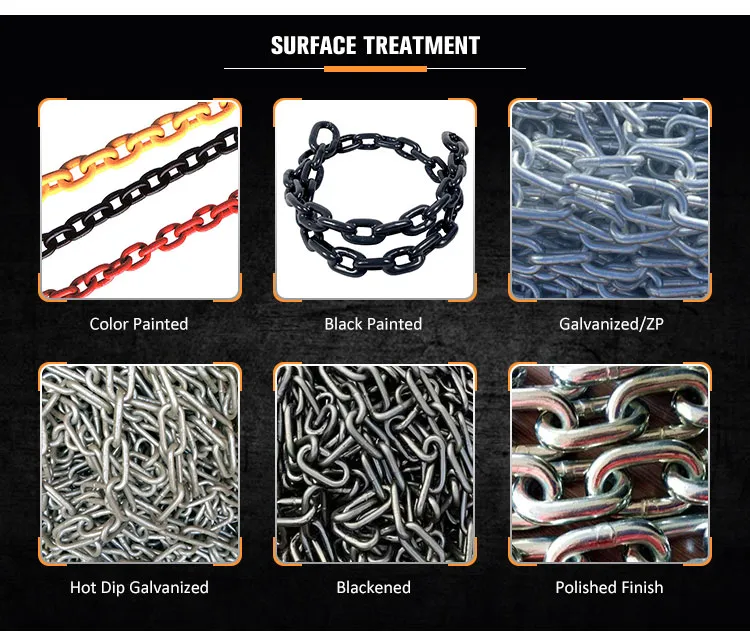

Surface treatment: Galvanized, Black painted, Self color, Polishing, Powder coated

Color: Self color, Red , grey, green, as to your request

Application: Ship, iron and steel industry, petroleum chemical industry, coal mine

Factory Wholesale High Strength Stud Link Anchor Chain
Product Specification

Diameter		Chain Link Size		U2 Stud Link Chain		U3 Stud Link Chain		Approx. Weight
Inch	MM	Outside Length MM	Outside Wide MM	Working Load KN	Breaking Load KN	Working Load KN	Breaking Load KN	27.5m/kg
1/2	12.5	75	45	66	92	92	132	98
9/16	14	84	50.4	82	116	116	165	119
5/8	16	96	57.6	107	150	150	216	156
11/16	17.5	105	63	127	179	179	256	186
3/4	19	114	68.4	150	211	211	301	230
13/16	20.5	123	73.8	175	244	244	349	260
7/8	22	132	79.2	200	280	280	401	300
15/16	24	144	86.4	237	332	332	476	370
1 1/16	26	156	93.6	278	389	389	556	431
1 - 1/8	28	168	100.8	321	449	449	642	496
1 -3/16	30	180	108	368	514	514	735	564
1 -1/4	32	192	115.2	417	583	583	833	635
1 -5/16	34	204	122.4	468	655	655	937	712
1 -7/16	36	216	129.6	523	732	732	1050	800
1 -1/2	38	228	136.8	581	812	812	1160	887
1 -9/16	40	240	144	640	896	896	1280	1032
1 - 5/8	42	252	151.2	709	981	981	1400	1084
1 - 3/4	44	264	158.4	769	1080	1080	1540	1197
1 -13/16	46	276	165.6	837	1170	1170	1680	1310
1 -7/8	48	288	172.8	908	1270	1270	1810	1438
2	50	300	180	981	1370	1370	1960	1546
2 -1/16	52	312	187.2	1060	1480	1480	2110	1661
2 - 1/8	54	324	194.4	1140	1590	1590	2270	1791
2 -3/16	56	336	201.6	1220	1710	1710	2430	1926
2 -5/16	58	348	208.8	1290	1810	1810	2600	2086
2 - 3/8	60	360	216	1380	1940	1940	2770	2249
2 -7/16	62	372	223.2	1470	2060	2060	2940	2361
2 -1/2	64	384	230.4	1560	2190	2190	3130	2516
2 -9/16	66	396	237.6	1660	2310	2310	3300	2676
2 -11/16	68	408	244.8	1750	2450	2450	3500	2885
2 -3/4	70	420	250	1840	2580	2580	3690	3010

Package and transportion

Usually packed in plastic bags, and then in export carton, high quality pallets ;According to your requirements.

Delivery Detail: Usually 25-30 working days after receiving your advance payment.
Bulk packing
Packed in wooden cases
Packed in Iron drum, then in pallets
According to your requirements
Delivery Detail: Usually 25 days after receiving your advance payment.
Factory Wholesale High Strength Stud Link Anchor Chain

Company porfile
Founded in 1998, Weifang First Rigging Co., Ltd, formerly known as Changle Chain Factory, is located in Changle Country of Shandong Province known as "The Gem City of China", and specializes in producing and marketing chain and rigging related products at home and abroadOur company has independent import and export operating rights, and can handle the certifications of CCS, LR, DNV and other famous classification societies for products. Our products are sold to dozens of countries such as Europe, America ano Middle East as well as more than ten provincial and municipal regions in China, and are widely applied to the fields of ships, steel, petrochemical industry, coal mine, etc.In the principle of "Quality-honoring & Promise-keeping", our company meets the requirements of all the customers through service innovation, changes the original production state through technical innovation, improves the product quality through process innovation, and continuously goes to standardization, elaboration, process and scientification through the business thought of constant innovation. Absolute sincerity will move a heart of stone. Our company is willing to cooperate with domestic and foreign new/old customers in utmost sincerity, to create a common future!
Factory Wholesale High Strength Stud Link Anchor Chain

FAQ

1.Are your manufacturer or Trading Company?
First rigging is professional manufacturer, more than 20 years experience.

2. What products do you supply?
1) Lifting link chain, Coal Mining chain
2) Round Master link
3) Other related products

3.What is your lead time?
Usually 25-30 working days after receiving your advance payment.

4. How do I receive the goods ?
FOB, CFR, CIF are most commonly used trade terms.

5.How do I pay?
TT(Telegraphic Transfer),30% payment in advance, 70% balance before shipment.
