Product Description
NANHAI - SHIP LAUCHING AIRBAG
NanHai-Ship Launching Airbag, among the earliest manufacturers of ship airbags, has led and innovated ship launching
airbag technology with its ultra-bigh pressure airbags with working pressure as high as 800KPa and anti-puncture airbags.
NanHai-Ship Launching Airbag can be used to launch and upgrade a ship up to 100,000DWT. Comparing to the traditional slipway launching method, the ship launching airbags are much environmental, because ship airbag can launch a ship at any seaside, so there's no need to worry about the construction of launching facilities; besides, the marine airbag need little maintenance and can be used repeatedly.
THE STRUCTURE OF NANHAI-MARINE AIRBAG
NanHai-Marine Airbag is to be constructed of an outer rubber layer, one or more Synthetic-Tyre-Cord layers, and an inner rubber layer.

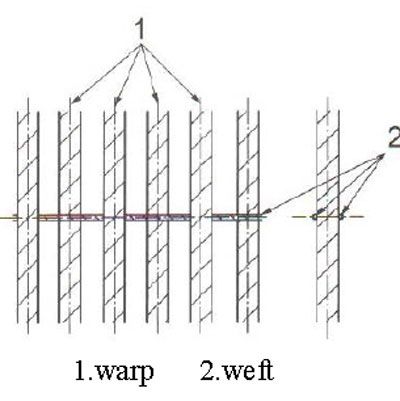

The arrangement of Synthetic-Tyre-Cord reinforcement layers is showed below. All materials shall be vulcanized firmly.

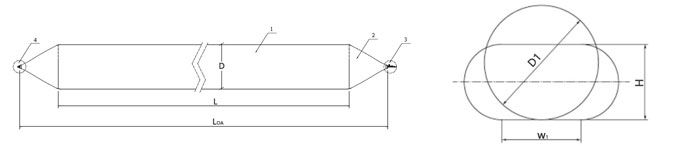

1. Airbag Cylindrical Body
2. Airbag Conical Head
3. Airbag Air Inflate End
4. Airbag Drag End
D. Dimeter of Airbag
LoA. Overall Length of Airbag
L. Effective length of Airbag
D1. Free State Height
H. Operating State Height
W. Operating State Breadth
Normally when we say the length of the airbag, we mean the Effective Length
MAJOR STRENGTHS OF NANHAI-MARINE AIRBAG
NanHai - Pneumatic Fender can totally meet the ISO 14409 standard
1. More safety: Nylon-6 Dipped Cord fabric, 3chords, single strength>313N, 1.5times than commons

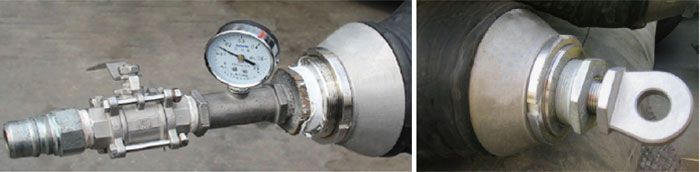

2. More unique design: S316 Stainless steel designed airbag head, avoiding the irreparable damage at the ends; The drag end could stand the whole weight of the airbag, and it is very convenient to be dragged by a crane
3. More longer lifetime: 100% natural rubber, the lifetimes is at least 2 or 3 times than commons
4. Better air tightness: Guarantee 72 hours(3days) no air leakage

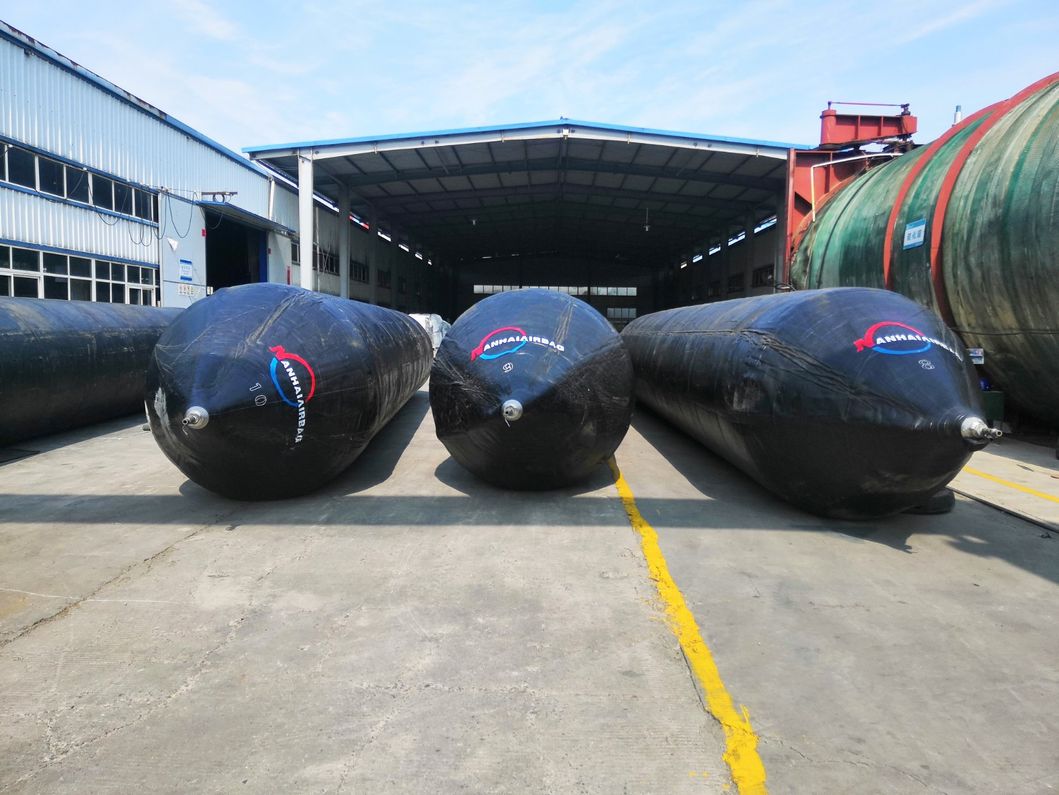

5. Different airbag size stock available, quick delivery
6. No harm to the environment, Time & money saving
7. Wear resistance and anti aging, Long time service life can be reused many times
APPLICATION OF NANHAI-MARINE AIRBAG

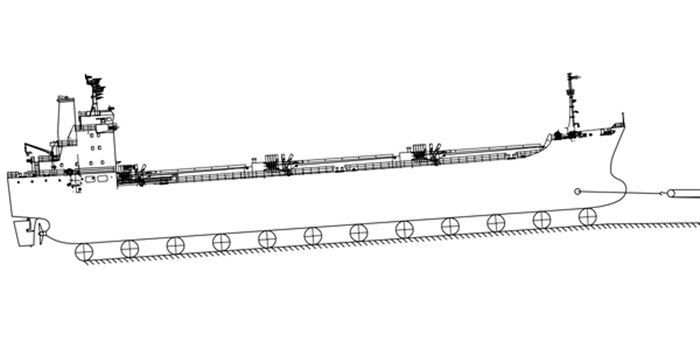

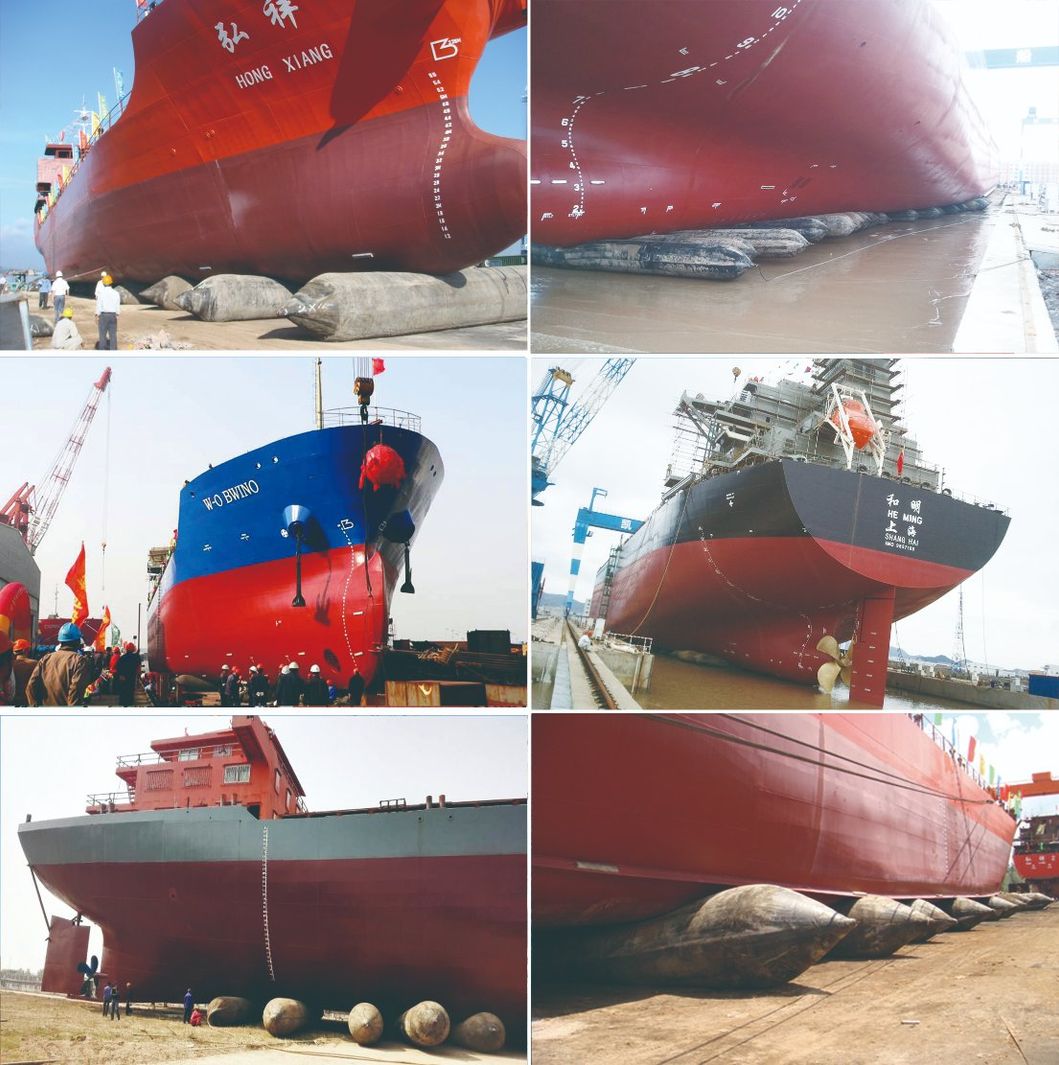

1. For ship upgrading, conversion or new/repair launching
2. Marine airbag for salvaging sunken ship or heavy immersed steel structure
3. For hoisting and transporting heavy goods up to 10,000 tonnes structure on land
4. For heavy lifting
5. For tunnel culverts to stop leaks
NANHAI-MARINE AIRBAG SPECIFICATION
| Series | Type | Diameter D(m) | Operating Pressure (Mpa) | Operating Height(m) | Bearing Capacity Each Meter(t/m) | ||||
| 0.4D | 0.5D | 0.6D | 0.4D | 0.5D | 0.6D | ||||
| S1 | S10 | 0.8 | 0.20 | 0.32 | 0.40 | 0.48 | 15.1 | 12.6 | 10.0 |
| 1 | 0.16 | 0.40 | 0.50 | 0.60 | 15.1 | 12.6 | 10.0 | ||
| 1.2 | 0.14 | 0.48 | 0.60 | 0.72 | 15.8 | 13.2 | 10.6 | ||
| 1.5 | 0.11 | 0.60 | 0.75 | 0.90 | 15.5 | 13.0 | 10.4 | ||
| S11 | 0.8 | 0.19 | 0.32 | 0.40 | 0.48 | 14.3 | 11.9 | 9.5 | |
| 1 | 0.15 | 0.40 | 0.50 | 0.60 | 14.1 | 11.8 | 9.4 | ||
| 1.2 | 0.13 | 0.48 | 0.60 | 0.72 | 14.7 | 12.2 | 9.8 | ||
| 1.5 | 0.10 | 0.60 | 0.75 | 0.90 | 14.1 | 11.8 | 9.4 | ||
| S12 | 0.8 | 0.24 | 0.32 | 0.40 | 0.48 | 18.1 | 15.1 | 12.1 | |
| 1 | 0.19 | 0.40 | 0.50 | 0.60 | 17.9 | 14.9 | 11.9 | ||
| 1.2 | 0.16 | 0.48 | 0.60 | 0.72 | 18.1 | 15.1 | 12.1 | ||
| 1.5 | 0.13 | 0.60 | 0.75 | 0.90 | 18.4 | 15.3 | 12.2 | ||
| 1.8 | 0.10 | 0.72 | 0.90 | 1.08 | 17.0 | 14.1 | 11.3 | ||
| S2 | S20 | 1 | 0.24 | 0.40 | 0.50 | 0.60 | 22.6 | 18.8 | 15.1 |
| 1.2 | 0.20 | 0.48 | 0.60 | 0.72 | 22.6 | 18.8 | 15.1 | ||
| 1.5 | 0.16 | 0.60 | 0.75 | 0.90 | 22.6 | 18.8 | 15.1 | ||
| 1.8 | 0.13 | 0.72 | 0.90 | 1.08 | 22.0 | 18.4 | 14.7 | ||
| 2 | 0.12 | 0.80 | 1.00 | 1.20 | 22.6 | 18.8 | 15.1 | ||
| S21 | 1 | 0.27 | 0.40 | 0.50 | 0.60 | 25.4 | 21.2 | 17.0 | |
| 1.2 | 0.23 | 0.48 | 0.60 | 0.72 | 26.0 | 21.7 | 17.3 | ||
| 1.5 | 0.18 | 0.60 | 0.75 | 0.90 | 25.4 | 21.2 | 17.0 | ||
| 1.8 | 0.15 | 0.72 | 0.90 | 1.08 | 25.4 | 21.2 | 17.0 | ||
| 2 | 0.14 | 0.80 | 1.00 | 1.20 | 26.4 | 22.0 | 17.6 | ||
| S22 | 1 | 0.31 | 0.40 | 0.50 | 0.60 | 29.2 | 24.3 | 19.5 | |
| 1.2 | 0.26 | 0.48 | 0.60 | 0.72 | 29.4 | 24.5 | 19.6 | ||
| 1.5 | 0.20 | 0.60 | 0.75 | 0.90 | 28.3 | 23.6 | 18.8 | ||
| 1.8 | 0.17 | 0.72 | 0.90 | 1.08 | 28.8 | 24.0 | 19.2 | ||
| 2 | 0.15 | 0.80 | 1.00 | 1.20 | 28.3 | 23.6 | 18.8 | ||
| 2.5 | 0.12 | 1.00 | 1.25 | 1.50 | 28.3 | 23.6 | 18.8 | ||
FOR NANHAI BRAND
NanHai Brand established since 2003, Own advanced brand effect in the world. we have always focussed on our valued customers and committed to airbags and pneumatic fenders manufacture and R&D. As time moves on, we are continually engrossed in the challenges of this ever changing world.
Our commitment to you, our customers, is that we endeavour to provide the best value solutions to your technology problems.
During company development history have very famous project case and abundant experience.
We look forward to meeting your challenges of the future as a significant supporter of your business.

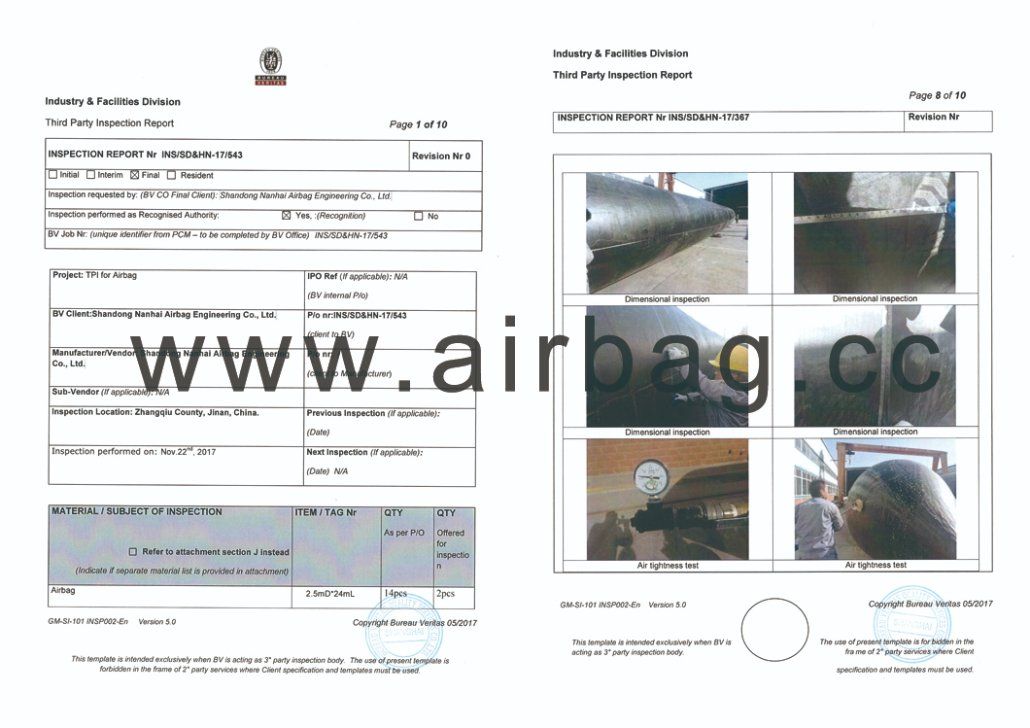

FOR NANHAI QUALIFICATION
FAQ
1. Q: I have a ship need to do launching and landing, I want to use ship airbags, but how can I choose
the airbag size and what other equipments needed.
A: We will give you the professional solution for ship launching. Pls let me know the ship size and weight, we can suggest the best size for you based on the budget .
Besides the airbags, we can provide any equipments that are need druring the ship launching or salvage, including rope or rope net, winch, rubber tube and air compressor machine, etc.
2. Q: How can the rubber airbags can load thousands tons ships when launching.
A:Our airbags are made by 54% natural rubber and use special synthetic-tire-cord layer(tire) material.
It is high kneading and compressing resistance, extend its lifespan to 10years. The heavier the ship, the more airbags needed.
3. Q: How to use marine airbags to salvage ship: what equipments are needed to install / securing / inflate the air bags(for salvage)?
A: You will need diver to go under the water(install); and tie our deflated airbags with rope or net to
the bottom of your ship(securing);then inflate the airbag with air compression machine linked by
rubber hose on the land(inflate ).
