Marine Ship Launching Rubber Airbag Inflatable Floating Pontoon for Salvage Underwater Floating Air Bags for Sale

Product Description

Marine Ship Launching Rubber Airbag Inflatable Floating Pontoon for Salvage Underwater Floating Air Bags for Sale

NANHAI-FLOATING AIRBAG

SALVAGE AIRBAG

NanHai-Floating Airbag is successfully developed with technological innovation on the basis of the airbag technology, which provided a convenient tool for salvage of shipwrecks, installation of pipelines and caisson culverts.

Marine Ship Launching Rubber Airbag Inflatable Floating Pontoon for Salvage Underwater Floating Air Bags for Sale

NanHai-Floating airbags are widely used in marine industry of salvage and buoyancy assistance, including rescue of stranded ships or sinking ships. The maritime salvage and rescue project is sudden and time-sensitive, lifting equipment or high costs; if the salvage company adopts conventional lifting methods, it is often subject to large-scalelifting equipment or high costs; using marine airbag, the salvage company can quick and flexable to complete salvage and rescue work.

THE STRUCTURE OF NANHAI-FLOATING AIRBAG

Marine Ship Launching Rubber Airbag Inflatable Floating Pontoon for Salvage Underwater Floating Air Bags for Sale

Rubberized nylon cord fabric layers provids superior performance for all our products, and especially, the rubber inner layer guarantees a good air tightness.

MAJOR STRENGTHS OF NANHAI-FLAOTING AIRBAG

Marine Ship Launching Rubber Airbag Inflatable Floating Pontoon for Salvage Underwater Floating Air Bags for Sale

Large tonnage: As deep as 100m. Available with 50tons, 100tons, 200tons, 300tons and other standard large tonnage. Can also be customized according to customer needs.

High safety: Great puncture and abrasion resistance by using 1400-D3 high-strength nylon thread. High safety with bursting pressure being over 3 times of safety factor.

Safety valve technology: Safety valve technology is adopted to protect against over-pressure, especially in salvage effectively alleviating the buoy's relative pressure changes when floating from the bottom.

Easy & reliable operation: The Floating airbags adopts the net fixation technique - proprietary technology independently invented by Nanhai-FloatingAirbag. Net structure lock sleeve and the shackle type link are used to solve the problem of force transmission and prevent the buoy from sliding down, making the construction operation quite simple and convenient.

The installation: Floating airbags are easy to fix and can provide a large amount of buoyancy after inflation.

APPLICATION OF NANHAI-PNEUMATIC FENDER

Marine Ship Launching Rubber Airbag Inflatable Floating Pontoon for Salvage Underwater Floating Air Bags for Sale

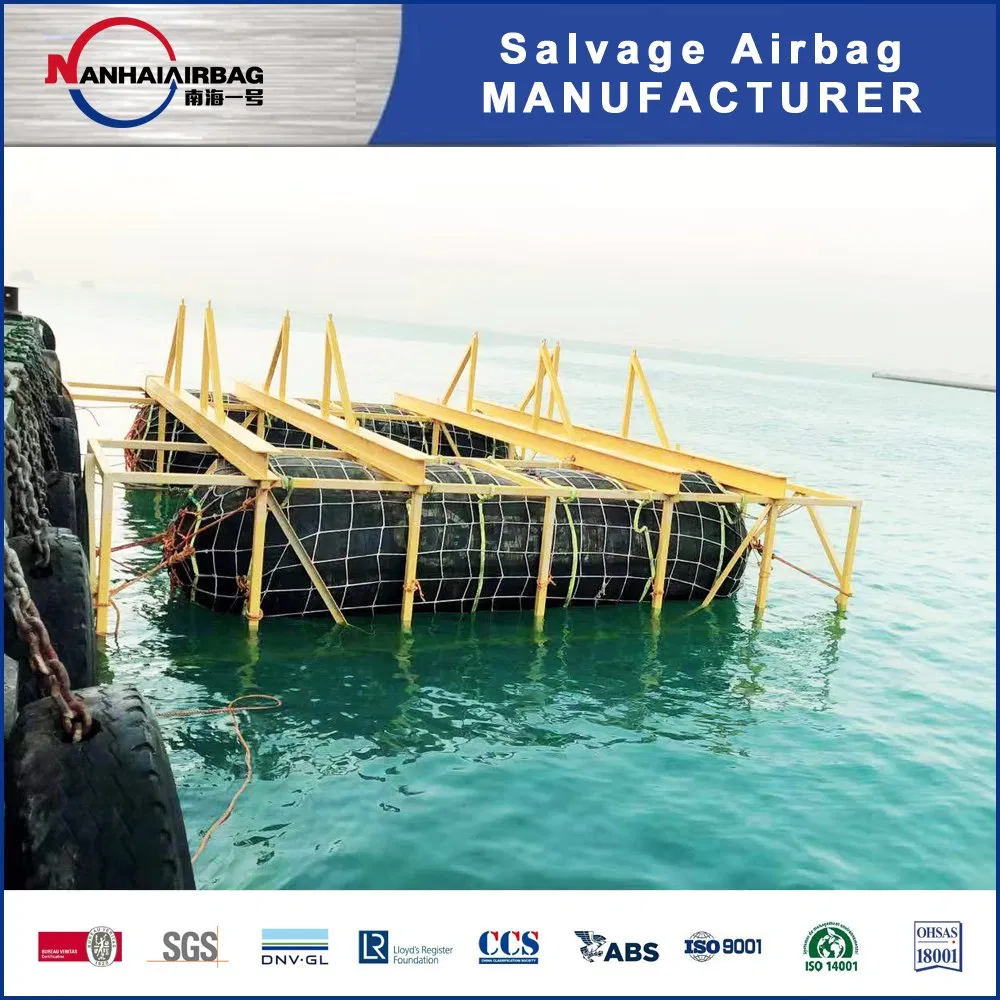

Salvage airbags: NanHai-Floating airbags can be used for underwater aircraft recovery, salvage activities for ships and other underwater objects.

Vessel float-up tool: NanHai-Floating airbags are functioned as a buoyancy assistant tool for vessel float-up in a dry dock and sail-away through a shallow water channel.

Pipeline and cable laying: NanHai-Floating airbags can be used in various pipeline laying and cable installations, such as offshore oil & gas, telecommunication cable etc.
Floating assistant tools:Used for other floating equipment, such as power plant equipment, box culvert installation, floating airbag bridge construction etc.

NANHAI-FLOATING AIRBAG SPECIFICATION

Specification	Maximun Buoyancy(t)	Airbag Specifications D(M)/EL(M)
Specification	Maximun Buoyancy(t)	0.6	0.8	1	1.2	1.5	1.8	2
F1	1T	4	2
F2	2T	7	4	3
F3	3T	11	6	4	3
F5	5T		10	6	4
F7.5	7. 5T		15	10	7	4
F10	10T			13	9	6
F12.5	12. 5T			16	11	7	5
F15	15T			19	14	8	6
F17.5	17.5T				17	10	7	6
F20	20T					11	8	6
F25	25T					14	10	8
F30	30T					17	12	10
F35	35T						14	11
F40	40T						16	13
F45	45T							14
F50	50T							16

Model	Lift Capacity(ton)	Diameter(m)	Overall Length(m)	Pressure Relife Valve	Inlet Assembly	Weight(KG)/7psi	Weight(KG)/14.5psi	Attachment points
SP-5	5	1.2	5.5	Yes	1in	120	170	3
SP-10	10	1.5	7	Yes	1in	1 70	240	5
SP-15	15	1.8	7	Yes	1in	200	350	5
SP-20	20	2	8	Yes	1in	240	440	6
SP-25	25	2.2	8	Yes	1in	260	480	6
SP-30	30	2.5	8	Yes	1.5in	550	790	6
SP-50	50	2.5	12	Yes	1.5in	780	1180	8
SP-75	75	3	12.5	Yes	1.5in	1100	1520	8
SP-100	100	3	16	Yes	1. 5in	1 400	1900	8
SP-125	125	3.5	15	Yes	1.5in	1 500	2150	8
SP-150	0.15	3.5	17.5	Yes	1.5in	2200	3100	8
SP-175	175	3.5	20	Yes	1.5in	2450	3550	10
SP-200	200	3.5	23	Yes	1.5in	2800	4200	10

FOR NANHAI BRAND

Marine Ship Launching Rubber Airbag Inflatable Floating Pontoon for Salvage Underwater Floating Air Bags for Sale
NanHai Brand established since 2003, Own advanced brand effect in the world. we have always focussed on our valued customers and committed to airbags and pneumatic fenders manufacture and R&D. As time moves on, we are continually engrossed in the challenges of this ever changing world.
Our commitment to you, our customers, is that we endeavour to provide the best value solutions to your technology problems.
During company development history have very famous project case and abundant experience.
We look forward to meeting your challenges of the future as a significant supporter of your business.
