Evergreen Floating Net Type YOKOHAMA Pneumatic Rubber Fender

1. Introduction
Evergreen Maritime is the world leading manufacturer of pneumatic rubber fender, and China unique manufacturer complys with ISo17357:2014. His products are certificated by CCS, ABS, LR, BV, SGS, etc.

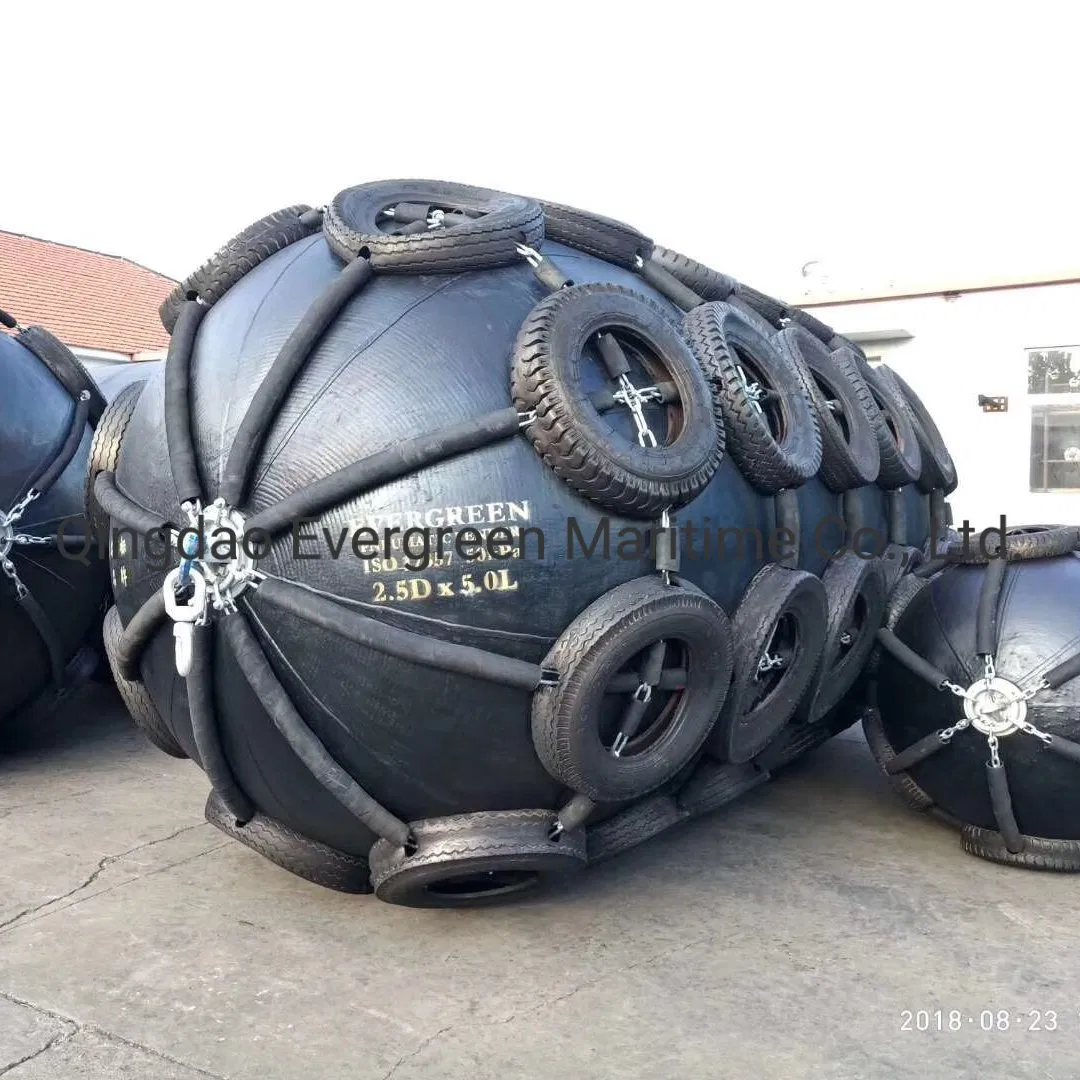

Evergreen Floating Net Type Yokohama Pneumatic Rubber Fender

High pressure floating pneumatic rubber fender is a leading anti-collision device for marine application in the world today. It is made of synthetic cord reinforced rubber sheet with compressed air inside to enable it to flaot on the water and work as a shock absorber when ship to ship transfer operations and ship to quay berthing and mooring operations. The first pneuamtic rubber fender was developed in 1985 based on the technology for auto mobile tires and rubber aircraft fuel tanks by YOKOHAMA RUBBER COMPANY.

Pneumatic fenders have the advantages of massive energy absorption with low unit surface pressure acted upon the ship. So pneumatic fender has become an ideal ship protection medium used extensively by large tankers, LPG vessels,ocean platforms, bulk carriers and floating structures, large docks, harbor and wharfs

COMPLY WITH ISO17357:2014

Evergreen Maritime ensures that all its pneumatic rubber fenders fully company with all requirements of ISO17357:2014

Evergreen Maritime commites to manufacture and provide the high quality pneuamatic rubber fenders for STS, STQ operation.

In order to produce the qualified and famous China Brand of pneumatic fenders, Evergreen Maritime invested the advanced production and test equipments, and invited the foreign experienced engineers of pnematic fenders, which ensure all Evergreen Maritime pneumatic fenders are manufactured comply with ISO17357:2014.

Therefore, Evergreen Maritime is the unique manufacturer of ISO17357 qualified pneumatic fender in China

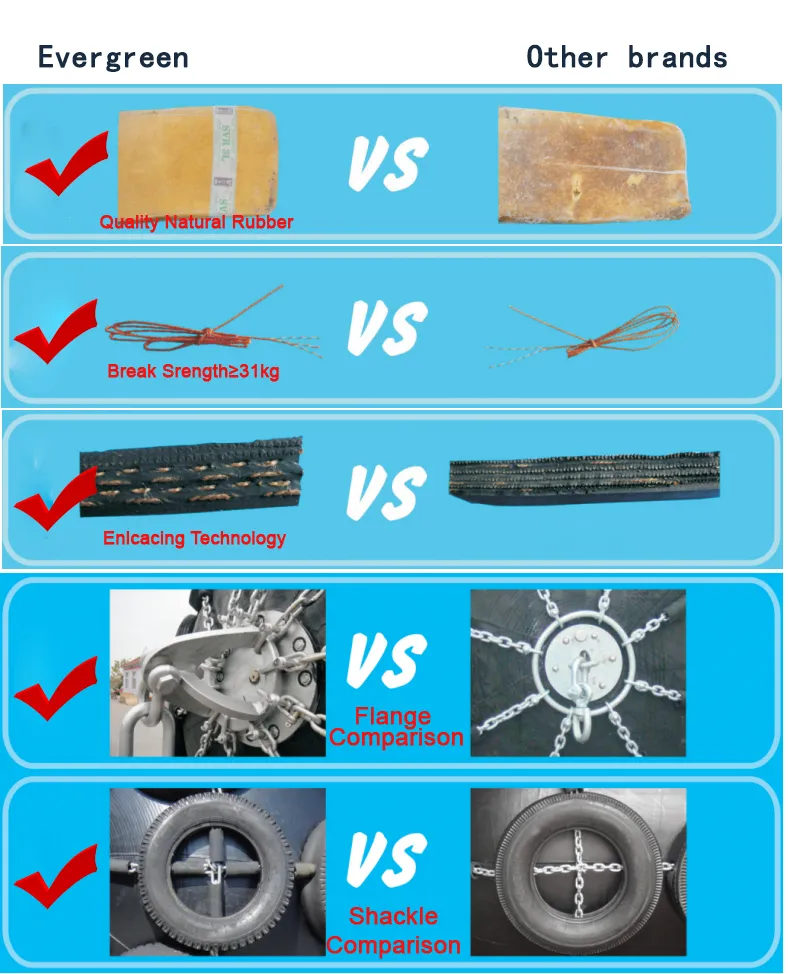

2. Construction

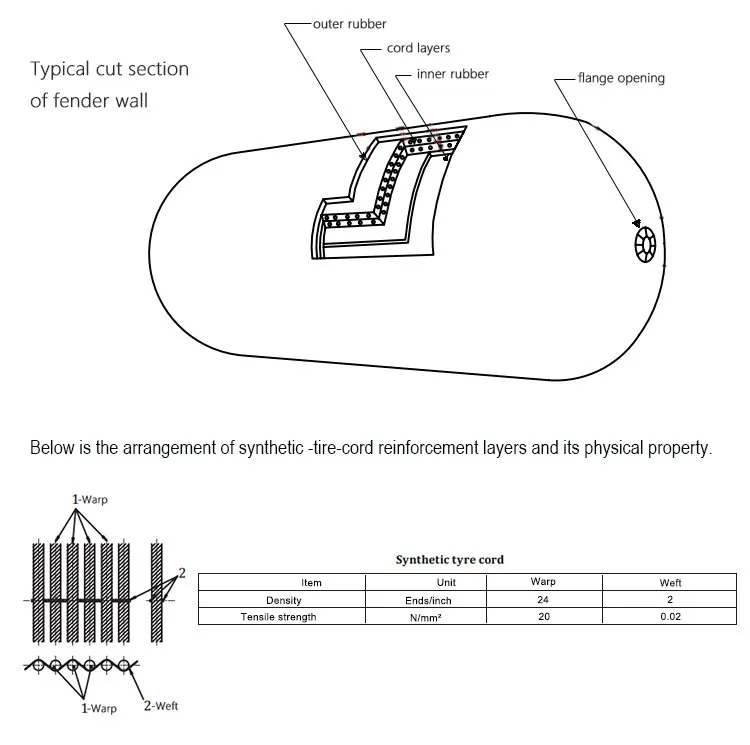

Floating pneumatic rubber fender, whose basic body construction consists of outer rubber layers, synthetic-cord-reinforced rubber layers and inner rubber layers, are kind of cylindrical airbags with hemispeherical heads at both ends. All of these are vulcanized together and then compress air inside to enable it to float on the water. So pneumatic fender has become an ideal ship protection medium used extensively by large tankers.,LPG vessels, ocean platforms, bulk carriers and floating structures, large docks, harbor and wharfs.

2.1 Outer rubber
The outer rubber layers that covers the outside of fender protects the cord layers and the inner rubber from abrasion and other external forces. This compound has sufficient tensile and tear strength to withstand any weather condition and hard usage. Standard color is black, but other colors such as grey and creamy white are available on request.
2.2 Inner rubber
The liner of a rubber membrane seals the pressurized air inside the fenders.
2.3 Synthetic tire cord layers for reinforcement
The reinforcement layers, which are made of synthetic tire cord commonly used in tires, are arranged at ideal angles to hold the internal pressure and to distribute the stress evenly providing strong efficient reinforcement.
Evergreen Floating Net Type Yokohama Pneumatic Rubber Fender

2.4 Beading Ring
A steel ring is placed at one end (or both ends) of the fender and holds the end of cord layers.

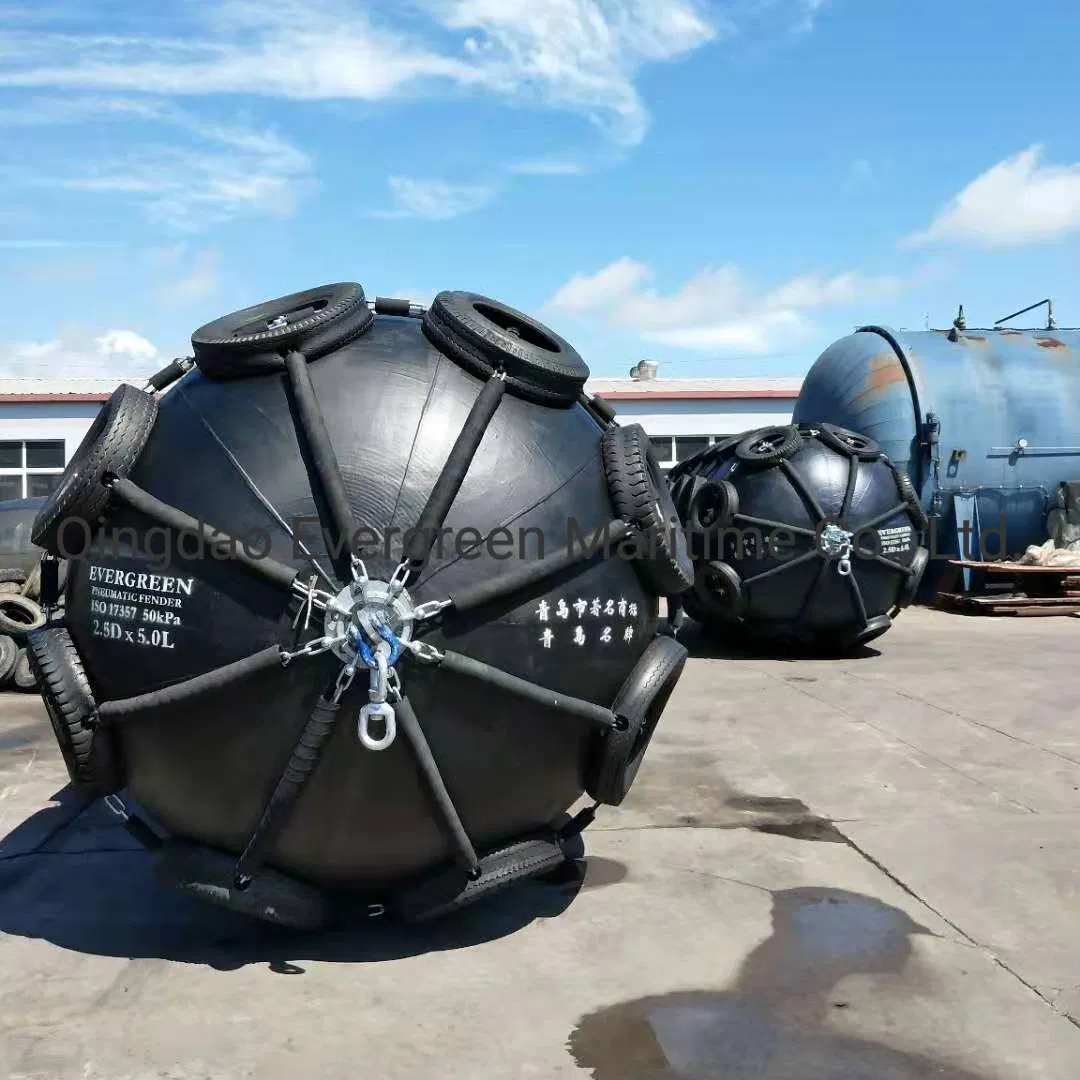

2.5 Flange

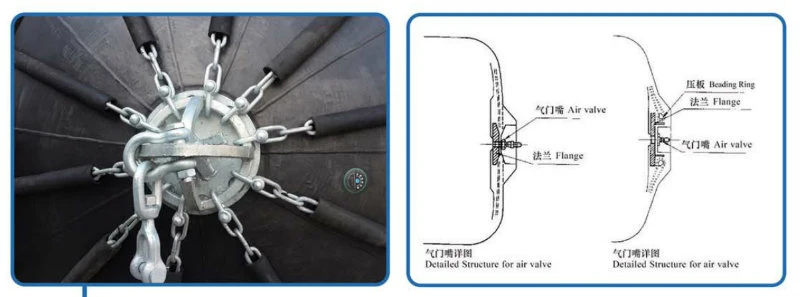

A steel flange is mounted on the fender, to which an air valve or safety valve can be adapted.
2.6 SafetyValve
Fenders of diameter 2500mm and larger shall be equipped with safety valve for releasing excess internal pressure when the fenders are over-compressed accidentally. Fender which are smaller than 2500mm in diameter, can be equipped with a safety valve if required.
2.7 Metal accessories
All the relevant metal accessories of pneuamtic fenders, include shackles, towing rings, swivels, chain net, are made of stainless steel, and H.D.G. which are resistant for sea water corrosion.
Evergreen Floating Net Type Yokohama Pneumatic Rubber Fender

3.Performance table for P50 & P80 Pneumatic Fenders

Nominal size mm	Pneumatic 50 Guaranteed energy absorption (KN.M)	Pneumatic 50 Reaction force at GEA deflection (KN)	Pneumatic 50 Hull pressure at GEA deflection (KN)	Pneumatic 80 Guaranteed energy absorption (KN.M)	Pneumatic 80 Reactionforce at GEA deflection (KN)	Pneumatic 80 Hull pressureat GEA deflection (KN)
Dia x Length	60% deflection	Tolerance ±10%		60% deflection	Tolerance ±10%
500×1000	6	64	132	8	85	174
600×1000	8	74	126	11	98	166
700×1500	17	137	135	24	180	177
1000×1500	32	182	122	45	239	160
1000×2000	45	257	132	63	338	174
1200×2000	63	297	126	88	390	166
1350×2500	102	427	130	142	561	170
1500×3000	153	579	132	214	761	174
1700×3000	191	639	128	267	840	168
2000×3500	308	875	128	430	1150	168
2500×5000	663	1381	137	925	1815	180
2500×5500	943	2019	148	1317	2653	195
3300×4500	1175	1884	130	1640	2476	171
3300×6500	1814	3015	146	2532	3961	191

Remarks:

Initial pressure 0.05Mpa.
Tolerance between Reaction force & Energy absorption: ±10%
Weight Tolerance: ±10%
Special dimensions can be customized.
All the Fittings are Hot-galvanized and Antirust Treatment.

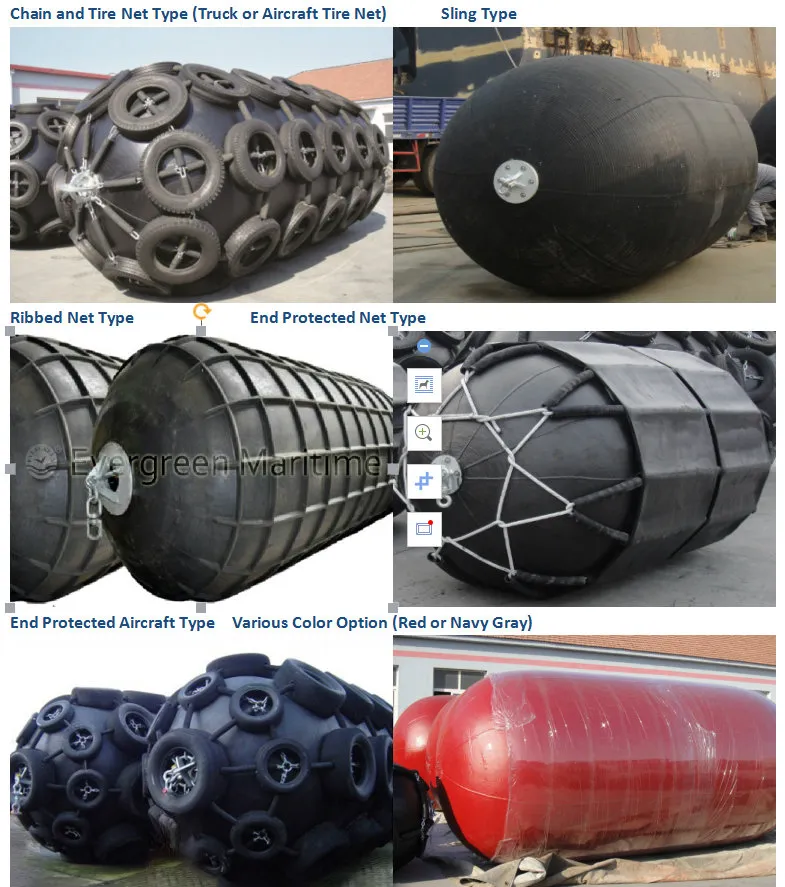

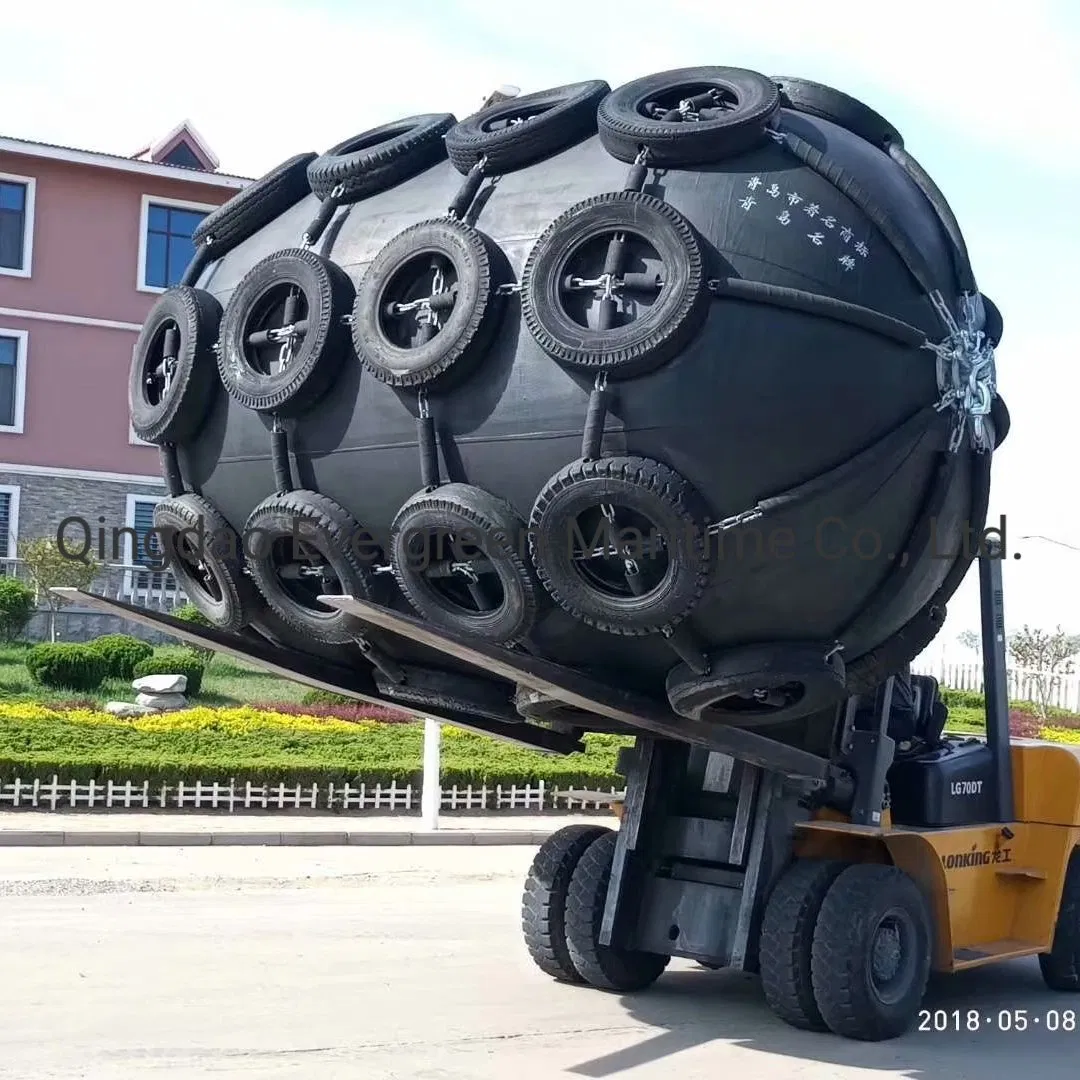

4.Classification

5.Application

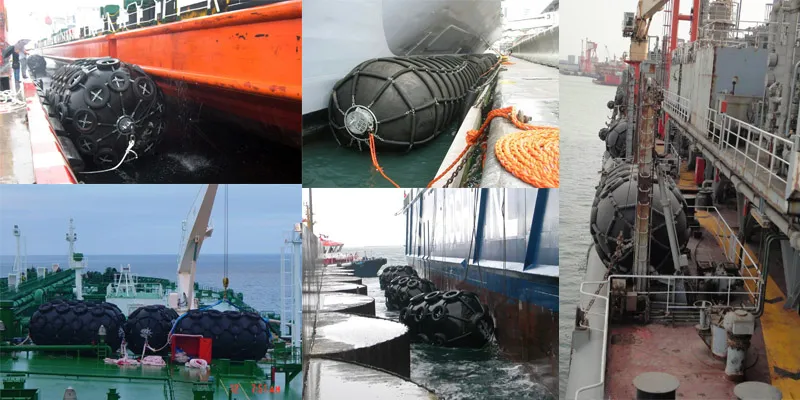

The are two typical installation type: ship to ship operation and ship to quay operation

5.1 ship to ship operation
Generally speaking, for the light duty ship to ship operation, two contact points are enough. But for the heavy duty ship to ship operation, 1 or 2 extra pneumatic rubber fender should be used as the primary fendering to absorb the berthing energy, and keep proper stand-off distance between two ships. Meanwhile, two or more small-size fenders can be hung on the ship hull as the secondary fendering.

The pneumatic fenders should be hung by guy chains or guy ropes, which should be selected depending on the different size and weather condition. Evergreen-Maritime pneumatic fenders are supplied with two ends shackles that connect the fender body with guy chains or guy ropes.

5.2 ship to quay operation

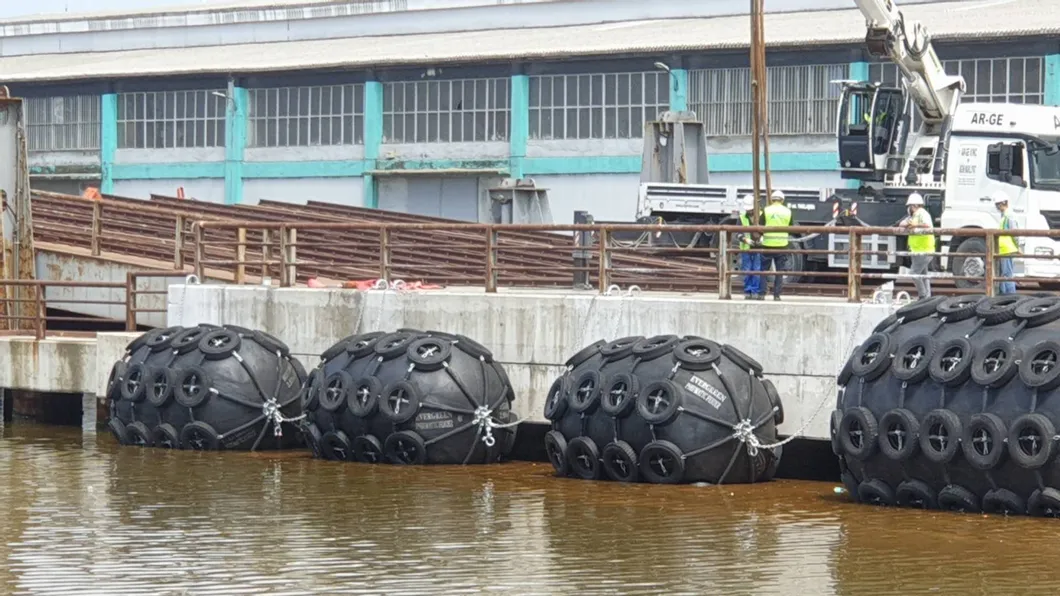

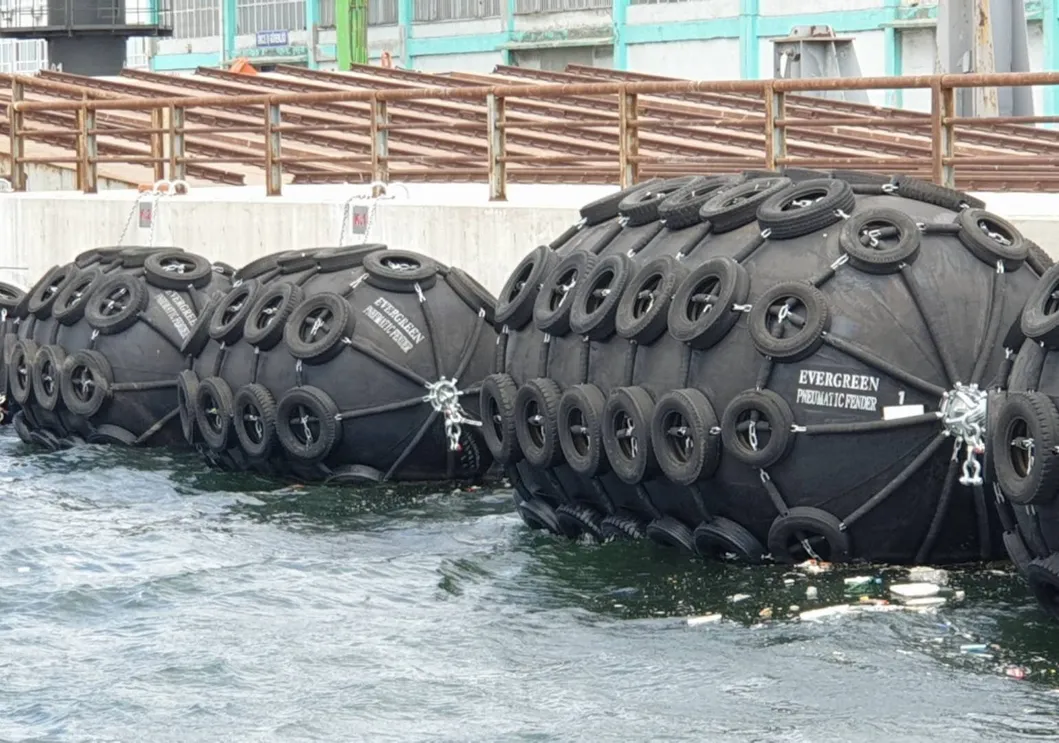

Pneumatic fenders are often used for the ship to quay operation because of its excellent performance. The typical installation type is like the follow figure. The pneumatic fenders are anchored with quay by the guy chain and shackles. Meanwhile, the pneumatic fender can be floated on the water surface depend on the change of tide.

Evergreen Floating Net Type Yokohama Pneumatic Rubber Fender

.
