              Sunhelm Floating Pneumatic Rubber Fenders for STS Operation
              The reason named Sunhelm Pneumatic Rubber Fender as "Terminator",because of his High Performance in protective,Various performance indicators beyond International Standard ISO17357.Protect Ship Safety Fully.

              Burst pressure factor highest could reach 5 times Than international standard.
              Sunhelm Floating Pneumatic Rubber Fenders for Sts OperationSunhelm Floating Pneumatic Rubber Fenders for Sts Operation



              Application
              It is an ideal protection tool for piers,as well as protection between ships.
              It uses compressed air as a buffer medium to absorb the impact energy of the ship. Therefore,
              compared with the general compression rubber protective wall, it has large energy absorption,
              small reaction force, large contact area with the ship, and small unit surface pressure acting on the ship.
              When tilted and compressed, the performance is not reduced, and the advantages of installation and replacement.
              It can be adapted to the docking of ships in all directions.

              1. Offshore platform

              2. Oil and gas tankers

              3. Fast ferries and aluminium vessels

              4. In ports with extreme tidal variations

              5. Fishing vessel, transport ship and ocean trawler

              Feature and Benefit

              1.Match but Beyond International Standard ISO17357

              2.Highest Burst Pressue could Reach 5 times than international standard

              3.Lower transportation cost,Fender transporte can be folded.Saving 2/3 of transportation cost

              4.Easy to maintain

              5.Adapt to various harsh environments

              6.Natural rubber Used

              7.D2/D3 High Strength Tyre Cord Layers

              8.Warranty period 24 Months

              9.Test Compression over 3000 Times

              10.Self-patented safety valve

              11.Inflate fast
              Sunhelm Floating Pneumatic Rubber Fenders for Sts OperationSunhelm Floating Pneumatic Rubber Fenders for Sts OperationSunhelm Floating Pneumatic Rubber Fenders for Sts OperationSunhelm Floating Pneumatic Rubber Fenders for Sts OperationSunhelm Floating Pneumatic Rubber Fenders for Sts Operation

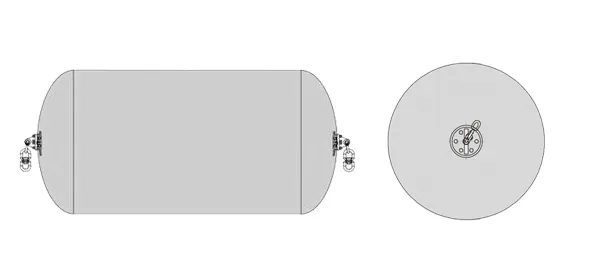

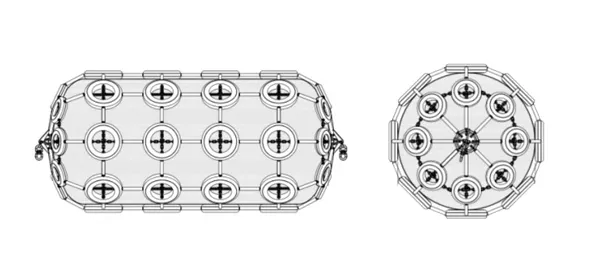

              Structure

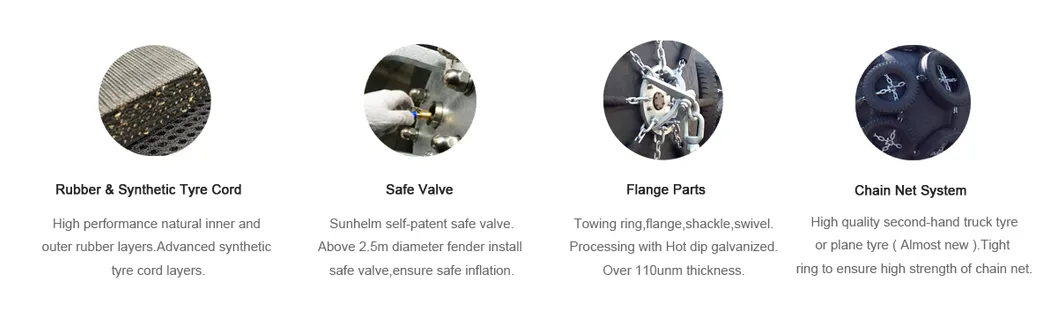

              1.Outer Rubber
              Cover outside on the ball of rubber layer, which is used to protect skeleton material and inner rubber
              ball from damage of external force.


              2. Synthetic cord reinforced rubber layer
              Reinforced cord rubber layer is composed of winding synthetic cord layer, it is mainly used for maintain
              the internal air pressure.


              3. Inner Rubber
              On the ball inside the rubber layer, which is used to prevent air leakage and control the ball pressure.

              4. End Flange
              The metal parts at both ends of fender, which can be fitted with charging valve and safetyvalve.

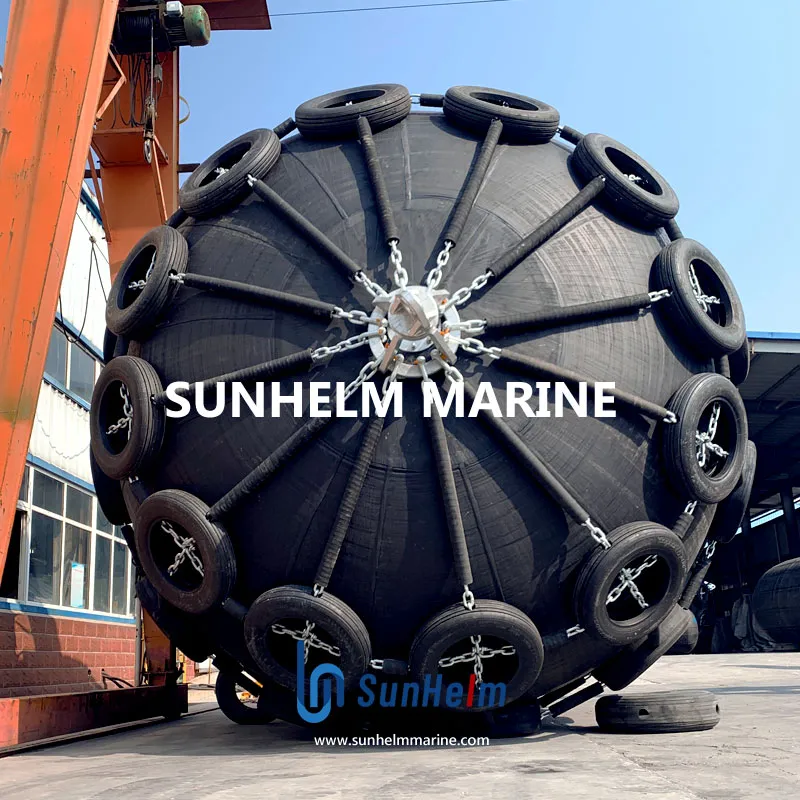

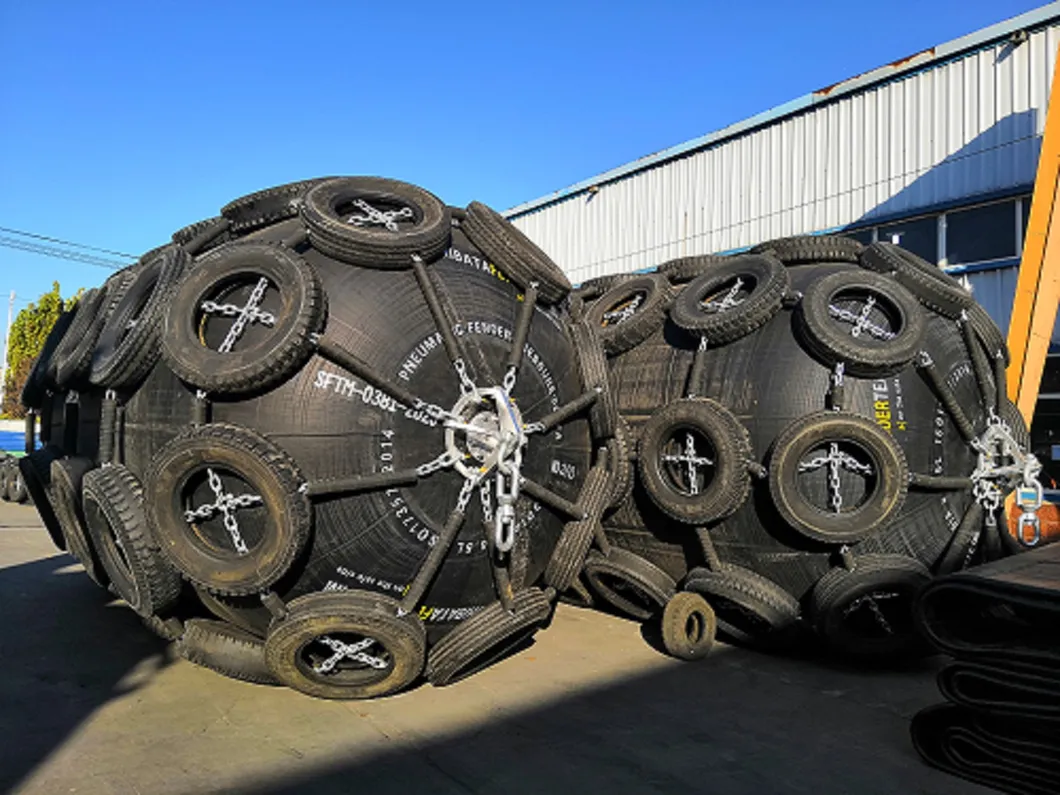

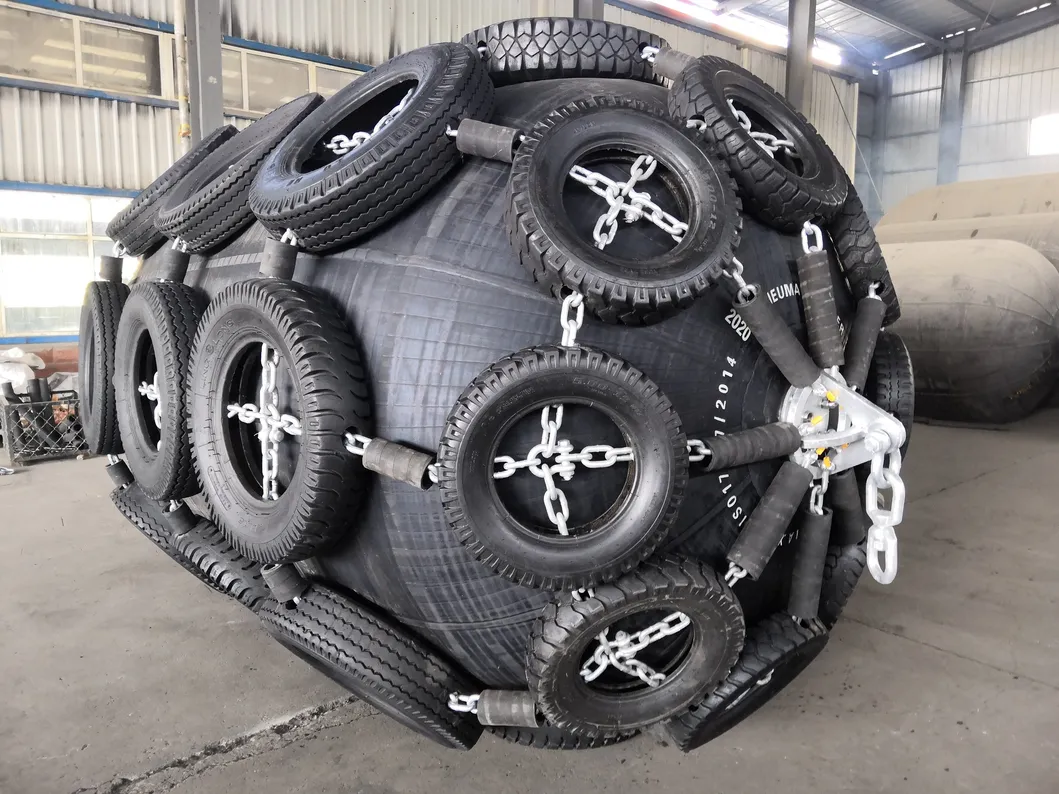

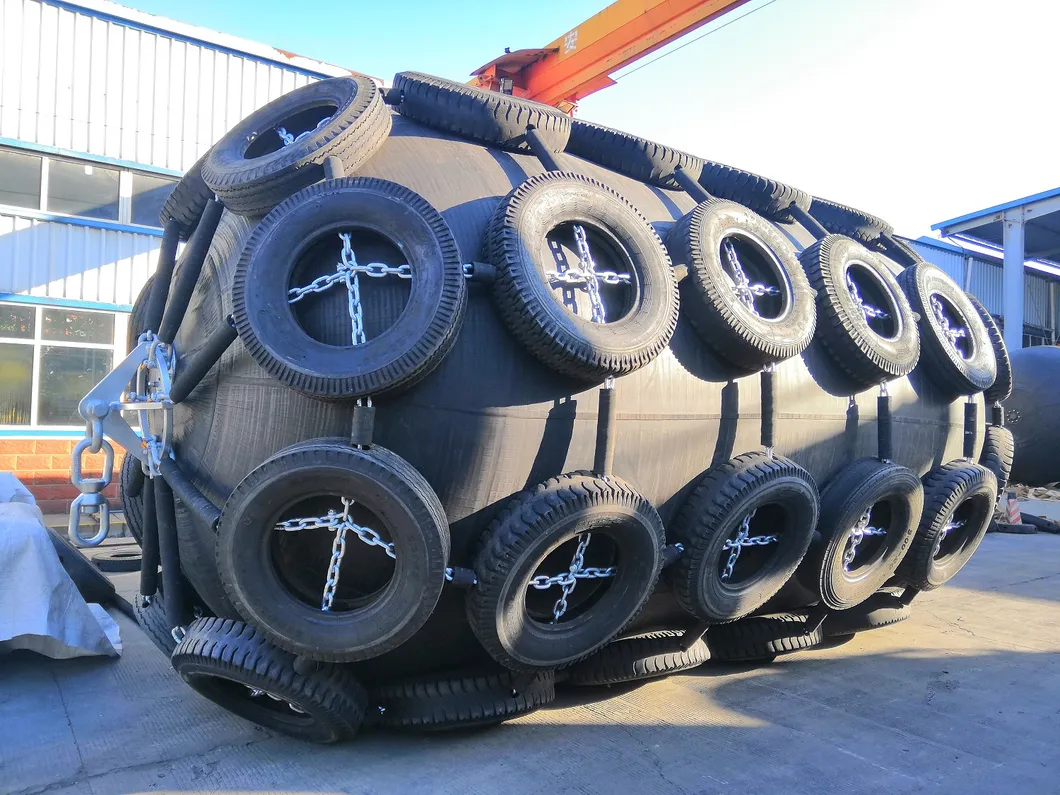

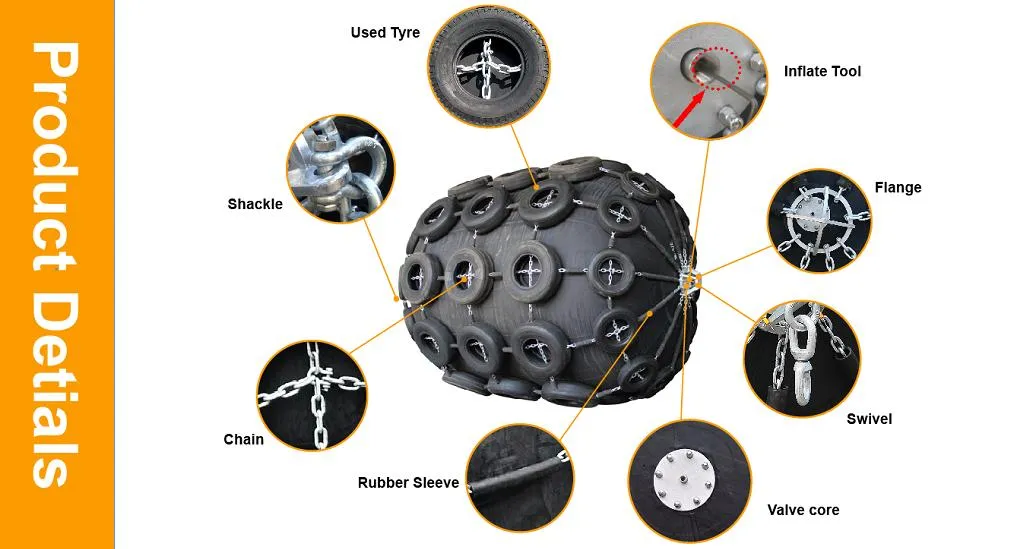

              Chain and Tire net for better hull protection
              chain and tire net used to avoid any damage to fenders and ship hull

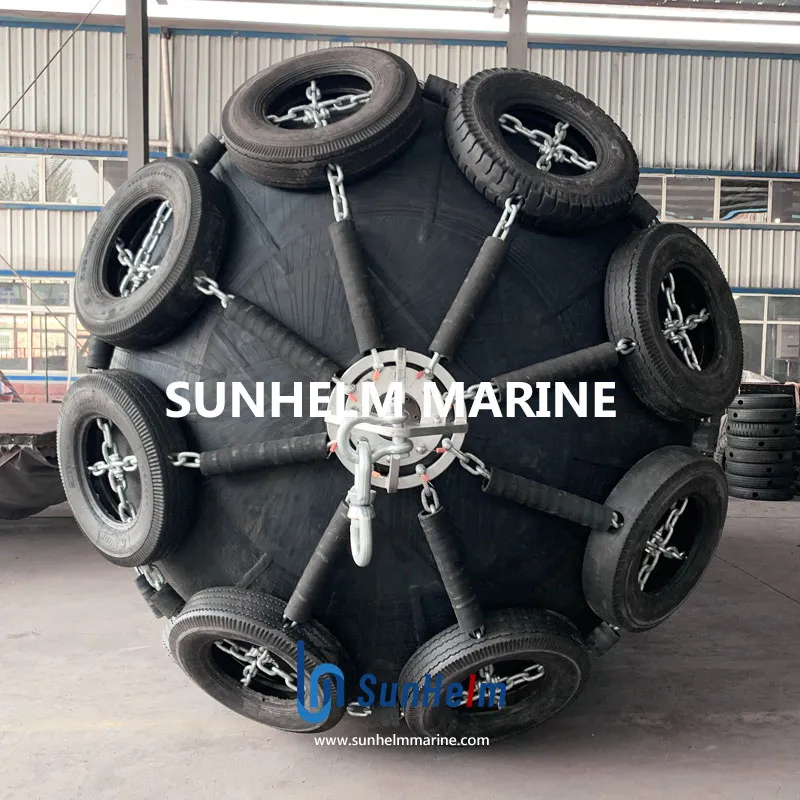

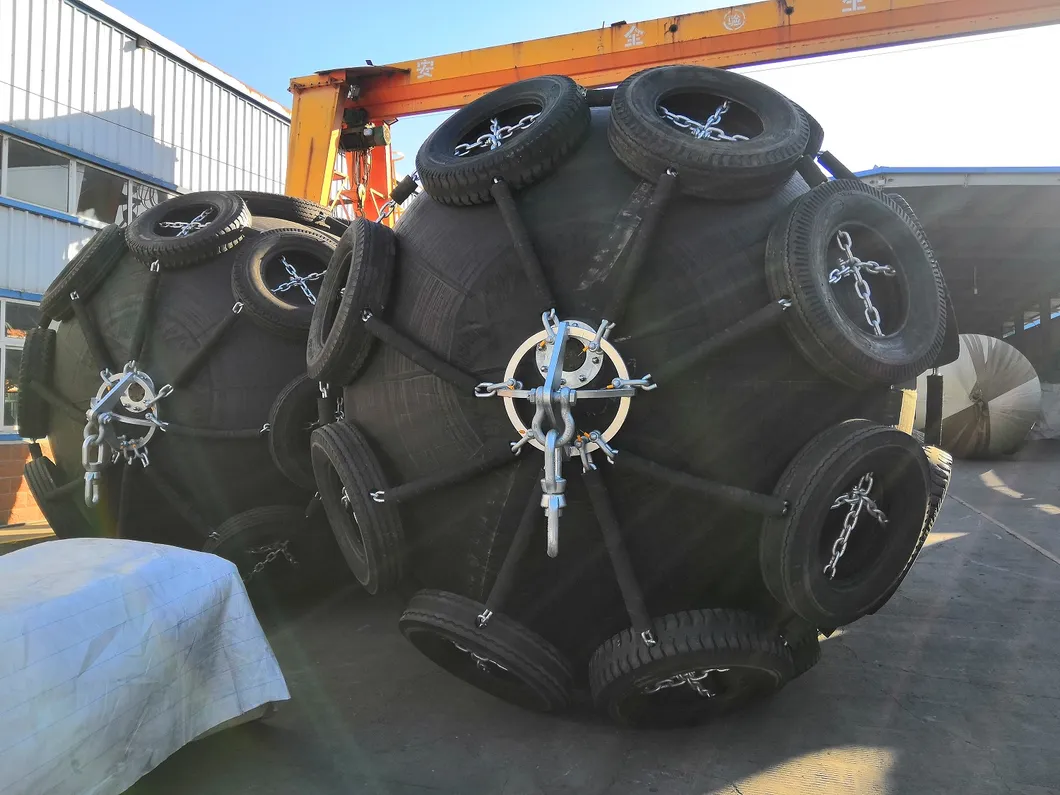

              Towing ring and swivek
              fenders are fitted with a towing ring and swivel in galvanized steel.
              Optional:Stainless steel available.

              ISO17357 Complied
              our fenders comply and beyond requirements of ISO17357,ensuring good performance
              and high quality floating pneumatic fender for safe berthing operations.

              Internal Initial Pressure
              Standard:50KPa and 80KPa


              Sunhelm Floating Pneumatic Rubber Fenders for Sts Operation

              Sunhelm Floating Pneumatic Rubber Fenders for Sts Operation

              Sunhelm Floating Pneumatic Rubber Fenders for Sts Operation


              SunHelm-Pneumatic Fender Specification

              Nominal sizeINTERNAL PRESSURE 0.08Mpa
              at 60% deflection
              Safety-valve pressure settingTesting pressure
              DiameterLengthEnergy absorptionReacion forceHull pressure
              mmmmkN·mkNkPakPakPa
              5001000885174-250
              60010001198166-250
              700150024180177-250
              1000150045239160-250
              1000200063338174-250
              1200200088390166-250
              13502500142561170-250
              15003000214761174-250
              17003000287840168-250
              200035004301150168-250
              250040009251815180230300
              2500550013172653195230300
              3000600018902906196230300
              3300450016402476171230300
              3300650025323961191230300
              33001060042816907208230300
              4500900066337551192230300
              450012000903710490202230300



              Nominal sizeINTERNAL PRESSURE 0.05Mpa
              at 60% deflection
              Safety-valve pressure settingTesting pressure
              DiameterLengthEnergy absorptionReacion forceHull pressure
              mmmmkN·mkNkPakPakPa
              5001000664132-200
              6001000874126-200
              700150017137135-200
              1000150032182122-200
              1000200045257132-200
              1200200063297126-200
              13502500102427130-200
              15003000153579132-200
              17003000191639128-200
              20003500308875128-200
              250040006631381137175250
              250055009432019148175250
              3000600013092387148175250
              3300450011751884130175250
              3300650018143015146175250
              33001060030675257158175250
              4500900047525747146175250
              45001200064737984154175250
