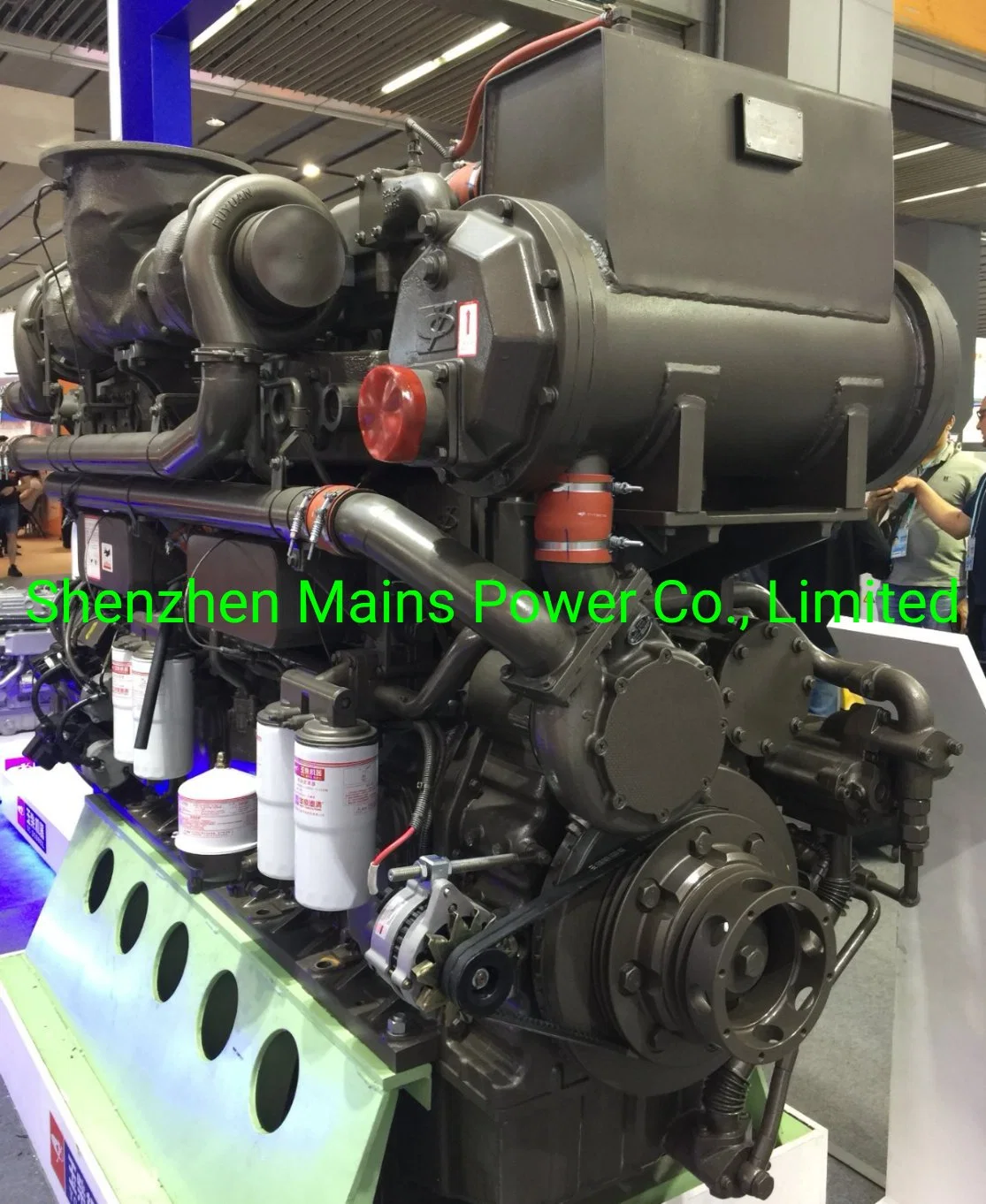

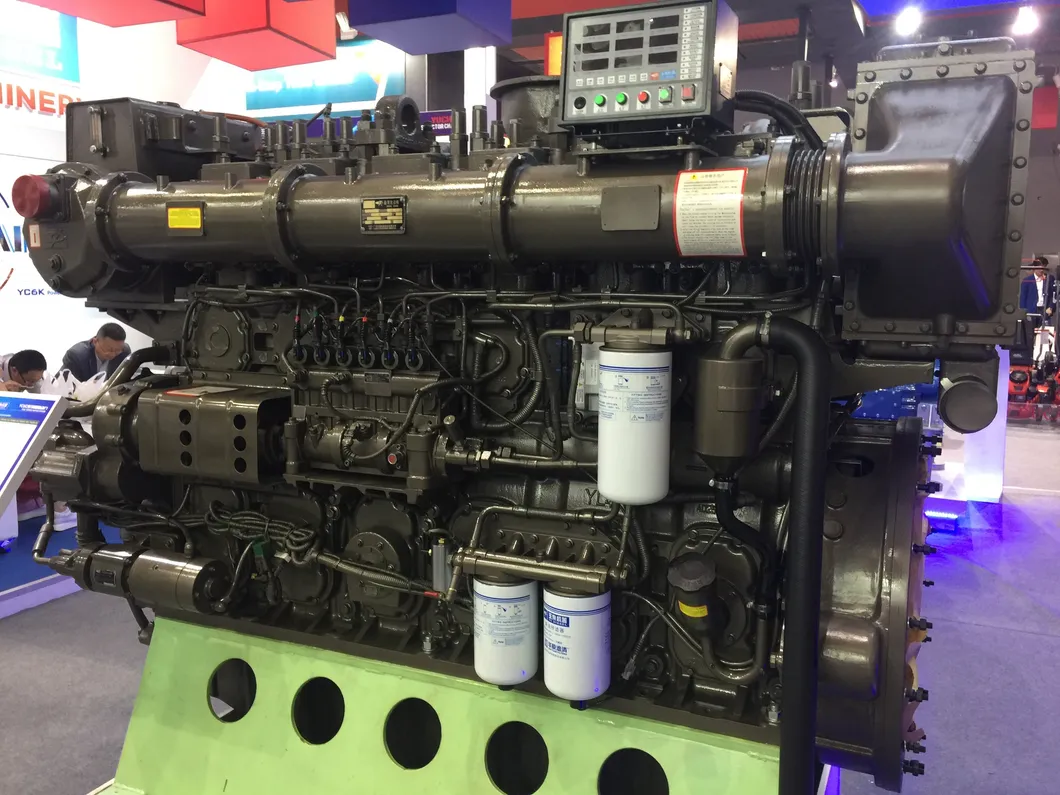

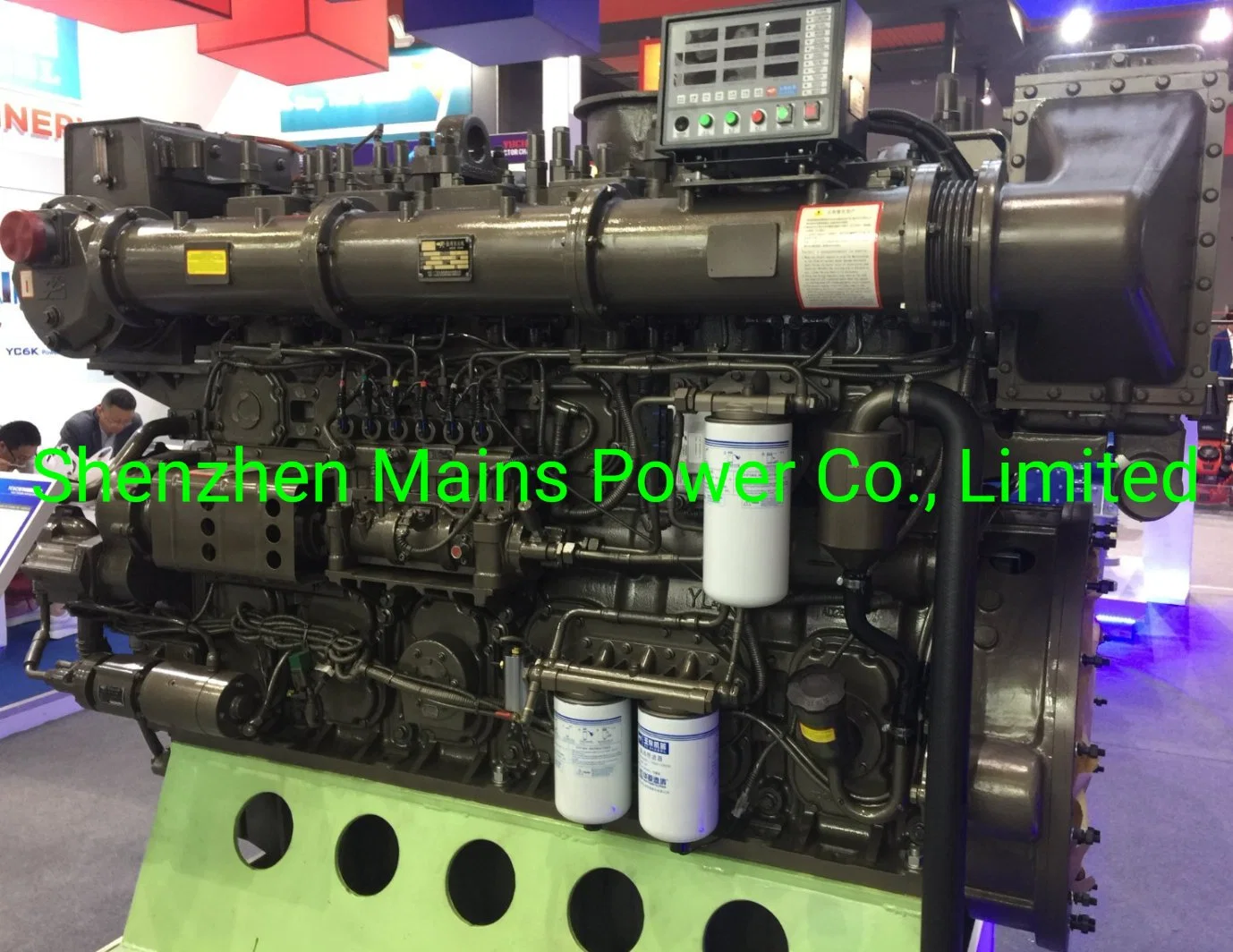

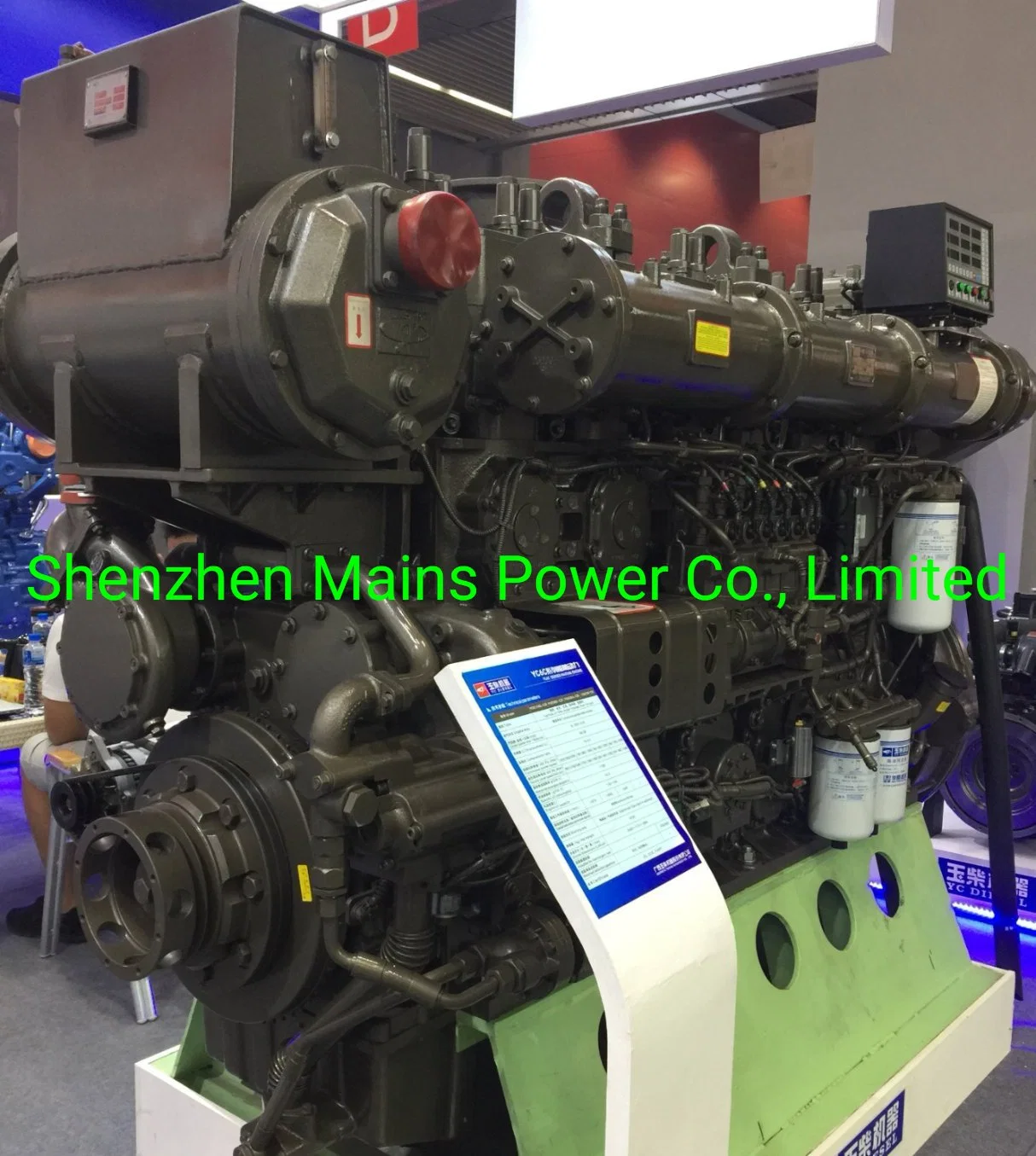

1100HP Yuchai Marine Diesel Engine Fishing Boat Engine Tugboat Motor

Product Description

With the advanced technologies of 4 valve, high efficient turbocharger and intercooler, characterised with high power density and large torque at low speed.
Better improvement in safety and durability by preventive cylinder gasket blown-out measure.
Compact size is convenient for installation, maintenance and repair
Operator and nature friendly with low noise, rapid start adility and low emissions
High fuel efficiency and low maintenance cost
Provide dual starting methods for choosing (electric and pneumatic)

Engine model: YC6C1100L-C20
Continuous power: 1100HP,810KW,
Continuous speed: 1500RPM
Max power: 1210HP, 891KW
Max speed: 1548RPM
Configuration: Vertical, in line, 6 cylinder, water-cooled, 4 stroke
Bore*Stroke: 200*210mm
Displacement: 39.6L
Compression ratio: 14.5 : 1
Fuel consumption: 195g/kw.h
Oil consumption: 0.8 g/kw.h
Rotation: Anticlockwise ( facing flywheel)
Dry weight: 4700kg
Size: 2482*1113*1968mm

Marine Diesel Engine Model List
Engine model		Rated			Standby			Intake	Displace ment(L)	Weight (kg)	*Dimension (LWH mm)*	Flywheel Spec	Certificate
Engine model		HP	KW	Speed	HP	KW	Speed	Intake	Displace ment(L)	Weight (kg)	*Dimension (LWH mm)*	Flywheel Spec	Certificate
16VC	16VC3000L-C20	3000	2206	1500	3300	2427	1548	Turbocharged, inter-cooled, Elecrical Unit pump	105.56	12000	375618182414	SAE21	ZC, CCS, IMO
	16VC2700L-C20	2700	1985	1350	2970	2184	1393
	16VC2400L-C20	2400	1764	1200	2640	1940	1238
12VC	12VC2200L-C20	2200	1618	1500	2420	1780	1548		79.17	8380	305517342524	SAE21	ZC, CCS, IMO
	12VC2000L-C20	2000	1470	1500	2200	1617	1548
	12VC2000L-C23	2000	1470	1350	2200	1617	1393
	12VC1800L-C20	1800	1323	1200	1980	1455	1238
8CL	YC8CL1800L-C20	1800	1324	1000	1980	1456	1032		72.88	6500	3175×1315×2296	SAE18	ZY, ZC, CCS, IMO
	YC8CL1600L-C20	1600	1176		1760	1294
	YC8CL1400L-C20	1400	1029		1540	1131
6CA	YC6CA1600C	1600	1176	1000	1760	1294	1032		60.3	5500	2496×1268×2189
6CA	YC6CA1400C	1400	1029	1000	1540	1132	1032		60.3	5500	2496×1268×2189
6CL	YC6CL1200L-C20	1200	882	1000	1320	970	1032		54.6	5380	2496×1150×2172
	YC6CL1135L-C20	1135	835		1250	918
	YC6CL1035L-C20	1035	760		1140	836		Mechnical pump
	YC6CL960L-C20	960	706		1060	776		Mechnical pump
6C	YC6C1100L-C20	1100	810	1500	1210	891	1548	Electricsl unit pump	39.58	4700	2476×1128×2069	SAE18	ZY, ZC, CCS, IMO
	YC6C960L-C20	960	706	1350	1018	748	1393	Mechnical pump			2482×1113×1968
	YC6C865L-C20	865	636	1350	900	663	1393
	YC6C820L-C20	820	603	1200	800	590	1238
	YC6C730L-C20	730	536	1200	528	387	1238
6CD	YC6CD900L-C20	900	662	1500	990	728	1548	Mechnical pump	32	4300	2426×1103×2153	SAE18	ZY, ZC, CCS, IMO
6CD	YC6CD750L-C20	750	551	1350	825	606	1393	Mechnical pump	32	4300	2426×1103×2153	SAE18	ZY, ZC, CCS, IMO
6TD	YC6TD800-C20	800	588	1800	880	647	1858	Turbo-charge,inter-cooler (Electric Common pump)	19.59	2200	1986×1160×1696	SAE14	ZC,ZY,CCS, IMO
	YC6TD760L-C20	760	559		836	615
	YC6TD650L-C20	650	478		715	526
	YC6TD600L-C20	600	441	1500	660	485	1548
6T	YC6T540C	540	396	1800	594	435.6	1858	Turbo-charging inter-cooler Mechcnial Pump	16.35	1980	2125×1105×1645	SAE14	ZC, ZY, CCS, IMO
	YC6T480C	480	352	1800	528	387.2	1858
	YC6T450C	450	330	1500	495	363	1548
	YC6T400C	400	294	1500	440	323.4	1548
	YC6T380C	380	279		418	307.4	1239
6K	YC6K560L-C20	560	412	1800	616	453	1858	Turbocharge, inter-cooler (Electrical Common Pump)	12.94	1300	1790×993×1241	SAE14	CCS, IMO
	YC6K520L-C20	520	382		572	420
	YC6K460L-C20	460	338		506	372
	YC6K490L-C20	490	360	1500	540	396	1548		12.2	1260
	YC6K420L-C20	420	309		462	340
	YC6K365L-C20	365	268		402	295
6MJ	YC6MJ450L-C20	450	330	2100	495	363	2168	Turbocharge, inter-cooler	11.72	1200	1834×1028×1278		ZC, ZY, CCS, IMO
	YC6MJ410L-C20	410	300	1800	451	330	1858
	YC6MJ365L-C20	365	267	1500	402	294	1548
6MK	YC6MK280L-C20	280	206	2100	308	226	2168	Turbo-charging inter-cooler	10.338	1100	1531×867×1187	SAE14	ZC, CCS, IMO
	YC6MK350L-C20	350	257	1800	385	282	1858
	YC6MK320C	320	235		352	258
	YC6MK300L-C20	300	219		330	241
	YC6MK240L-C23	240	176		264	193.6
	YC6M300C	300	219	1500	330	240.9	1548
	YC6M260C	260	192		286	211.2
	YC6M240C	240	176		264	193.6
6A	YC6A220C	220	162	2300	242	178.2	2374	Turbo-charging inter-cooler	7.255	770	1415×871×1075	SAE11.5	ZC, CCS
	YC6A190C	190	140	1800	209	154	1858
	YC6A170C	170	125	1500	187	137.5	1548
	YC6108ZLCB	150	112	1500	165	123.2	1548
6B	YC6B165C	165	120	2300	182	132	2374	Turbocharge	6.871	700	1415×877×1025	SAE11.5	ZC, CCS
	YC6B165L-C20	165	120	1800	182	132	1858						CCS
	YC6B150C	150	110	1800	165	121	1858						ZC, CCS
	YC6108ZCA	140	103	2300	154	113.3	2374				1293×780×1198
	YC6108ZLCA	122	90	1500	134	99	1548
	YC6108ZC	109	80	1500	120	88	1548
	YC6108CA1	112	82	2000	123	90.2	2065	Natural aspiration			1252×780×1075
	YC6B100-C20	100	74	1800	110	81.4	1858
	YC6108CA	86	63	1500	95	69.3	1500
6J	YC6106CA1	90	66	2000	99	72.6	2065	Natural aspiration	6.494	700	1252×780×1075	SAE11.5	ZC, ZY, CCS
6J	YC6105CA	72	53	1500	79	58.3	1548	Natural aspiration	6.494	700	1252×780×1075	SAE11.5	ZC, ZY, CCS
4F	YC4F115-C31	115	85	3100	126	93.5	3200	Turbocharge	2.66	420	844×617×736	SAE11.5	CCS
	YC4F100-C20	100	73	2950	110	80	3045
	YC4F90L-C20	90	63	2800	99	70	2890
4D	YC4D120Z-C20	120	90	3000	132	99	3193	Turbocharge	4.214	370	986×730×948	SAE11.5	CCS
	YC4D100Z-C20	100	75	2400	110	82.5	2478	Turbocharge
	YC4D80-C20	80	58	2400	88	63.8	2478	Natural aspiration
	YC4D75C	75	55	1800	82.5	60.5	1858	Turbocharge		390	986×730×948	SAE11.5	ZC, ZY, CCS
	YC4108ZC	68	50	1500	75	55	1500	Turbocharge		390	986×730×948
	YC4D55C	55	40	1800	60	44	1858	Natural aspiration		390	986×730×948
	YC4108C	54	40	1500	59.4	44	1548	Natural aspiration		390	986×730×948
