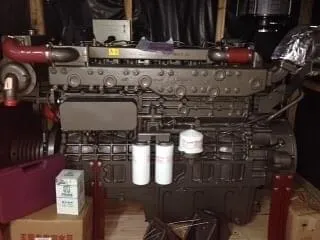

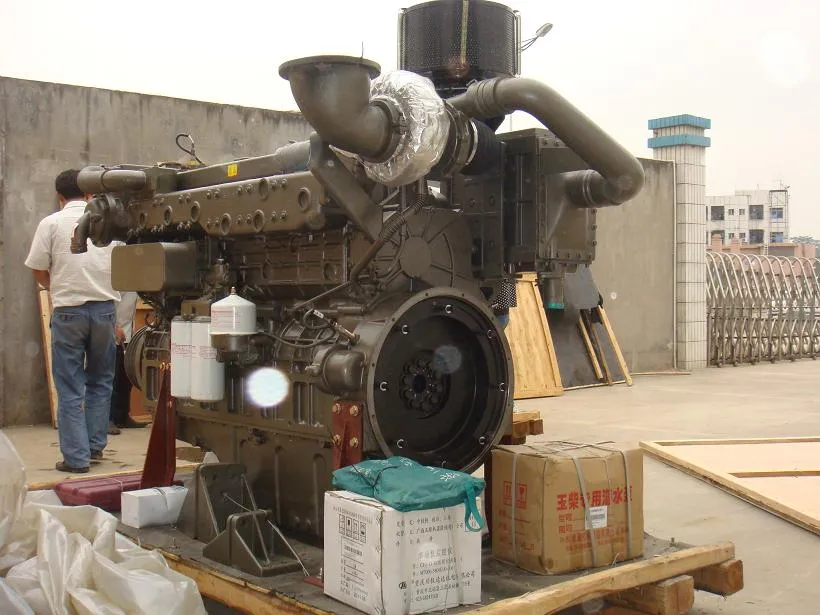

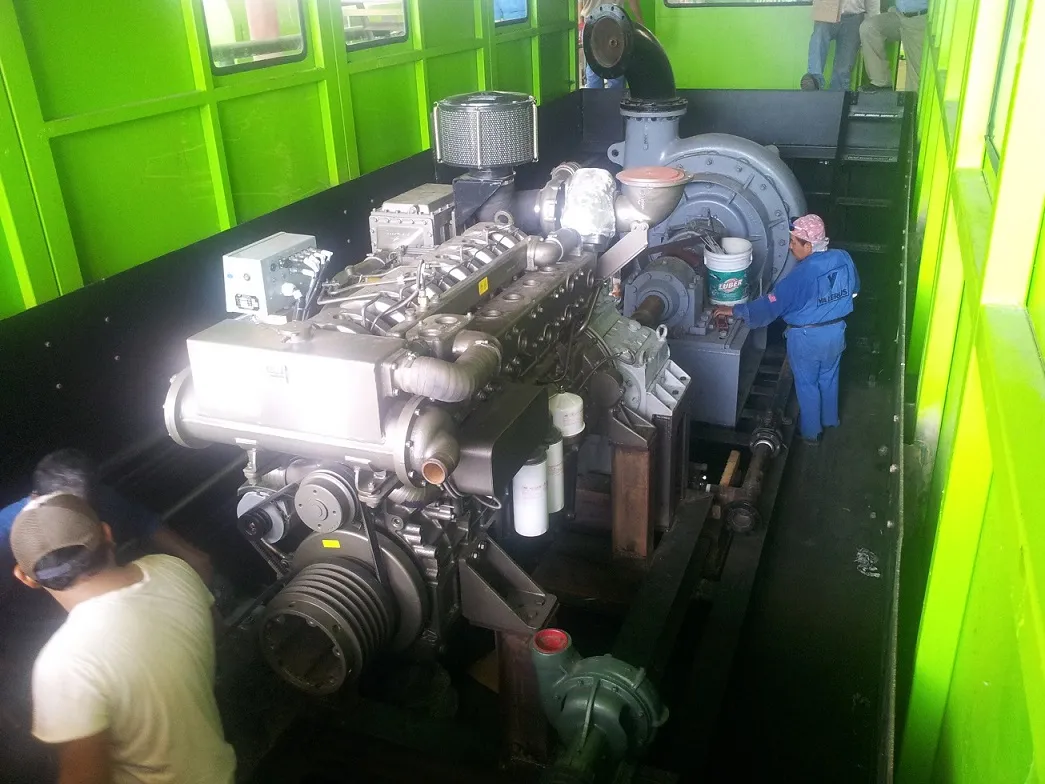

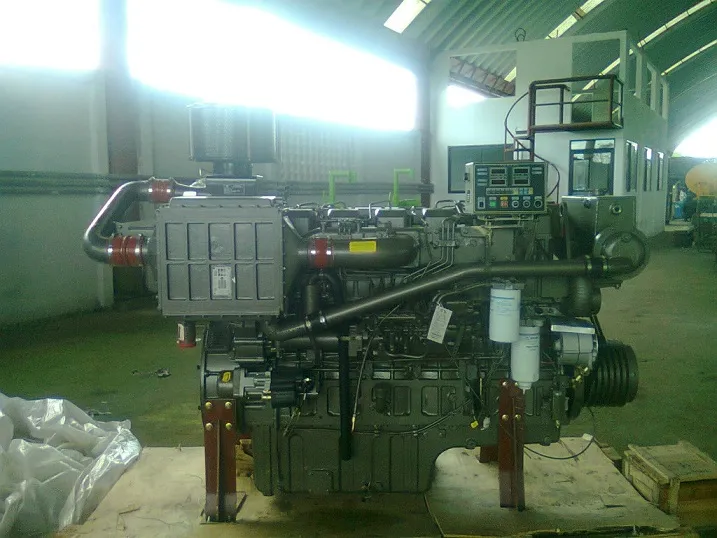

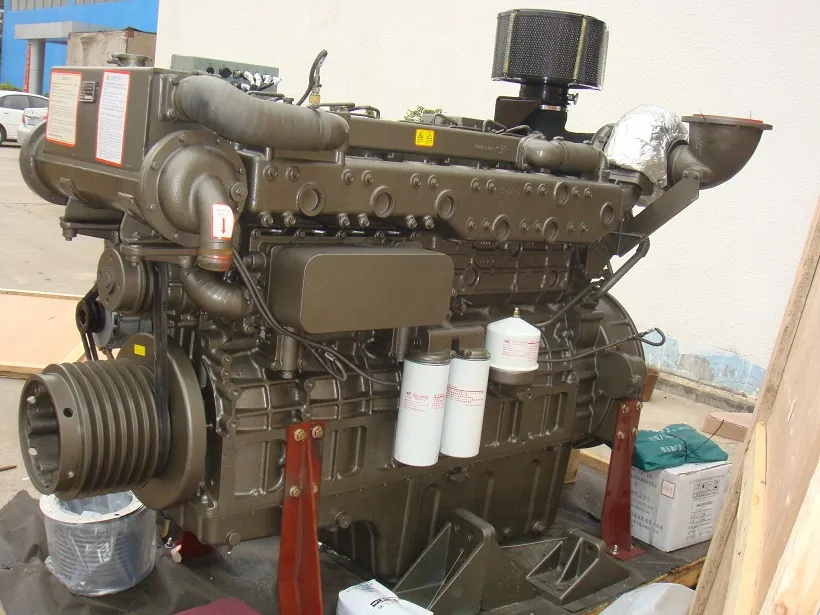

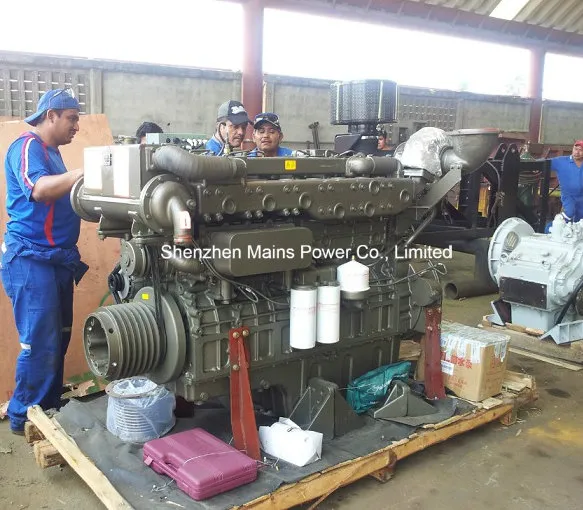

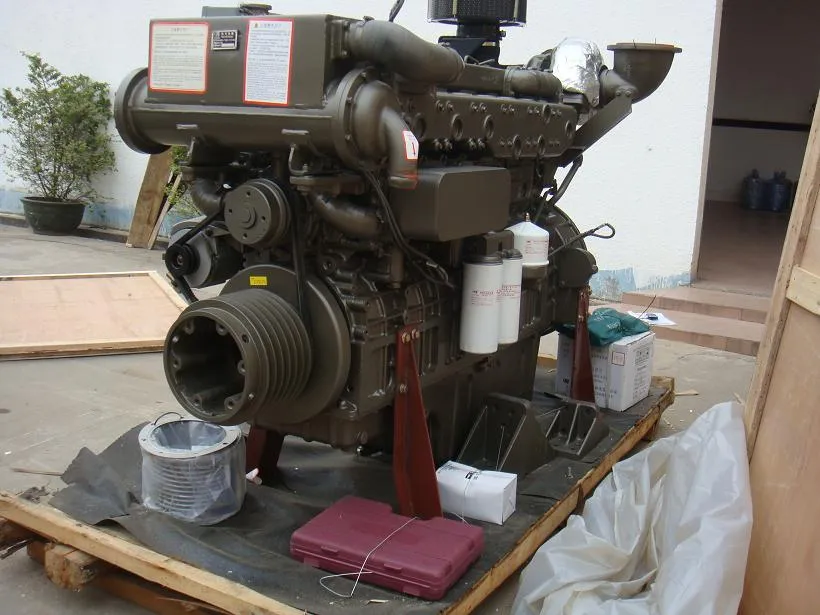

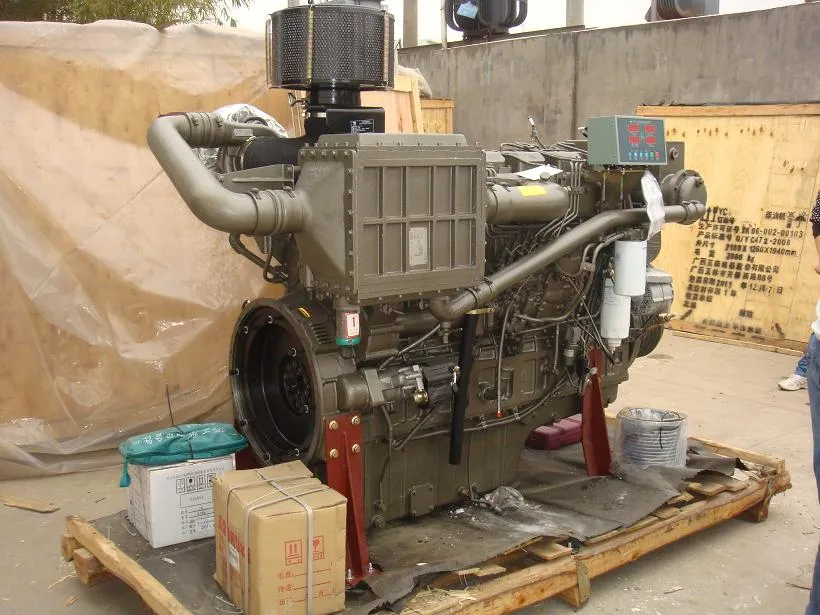

540HP Yuchai Marine Diesel Engine 1800rpm 540HP Fishing Boat Engine
Well perform in 20000 hours reliability test andthe most demanding requirements on temperature compact and metal fatigueWorld-class foundry and machining factory guarantee the excellent quality and reliability of our major componentsAlloy cast iron engine block, forged steel crankshaft and high-stre......
Send Inquiry
Product Description
Well perform in 20000 hours reliability test andthe most demanding requirements on temperature compact and metal fatigue
World-class foundry and machining factory guarantee the excellent quality and reliability of our major components
Alloy cast iron engine block, forged steel crankshaft and high-strength alloy connecting rod increase strength and rigidity
The improvement of piston cooling system reduces the piston temperature and oil consumption
High efficient 4-valve, P fuel pump & P injector, postposition gear chamber and point-line gear meshing patent technology improve combustion, noise level, vibration and fuel consumption
Water cooling exhaust pipe reduces engine room temperature
Provide dual starting methods for choosing (electric and pneumatic)
Engine model: YC6T540C
Configuration: Vertical, in line, 6 cylinder, water-cooled, 4 stroke
Bore*Stroke: 145*165mm
Displacement: 16.35L
Compression ratio: 15.5 : 1
Fuel consumption: 195g/kw.h
Oil consumption: 1.0 g/kw.h
Rotation: Anticlockwise ( facing flywheel)
Dry weight: 1980kg
Size: 1880*1000*1860mm
World-class foundry and machining factory guarantee the excellent quality and reliability of our major components
Alloy cast iron engine block, forged steel crankshaft and high-strength alloy connecting rod increase strength and rigidity
The improvement of piston cooling system reduces the piston temperature and oil consumption
High efficient 4-valve, P fuel pump & P injector, postposition gear chamber and point-line gear meshing patent technology improve combustion, noise level, vibration and fuel consumption
Water cooling exhaust pipe reduces engine room temperature
Provide dual starting methods for choosing (electric and pneumatic)
Engine model: YC6T540C
Configuration: Vertical, in line, 6 cylinder, water-cooled, 4 stroke
Bore*Stroke: 145*165mm
Displacement: 16.35L
Compression ratio: 15.5 : 1
Fuel consumption: 195g/kw.h
Oil consumption: 1.0 g/kw.h
Rotation: Anticlockwise ( facing flywheel)
Dry weight: 1980kg
Size: 1880*1000*1860mm
| Marine Diesel Engine Model List | |||||||||||||
| Engine model | Rated | Standby | Intake | Displace ment(L) | Weight (kg) | Dimension (L*W*H mm) | Flywheel Spec | Certificate | |||||
| HP | KW | Speed | HP | KW | Speed | ||||||||
| 16VC | 16VC3000L-C20 | 3000 | 2206 | 1500 | 3300 | 2427 | 1548 | Turbocharged, inter-cooled, Elecrical Unit pump | 105.56 | 1200 | 3756*1818*2414 | SAE21 | ZC, CCS, IMO |
| 16VC2700L-C20 | 2700 | 1985 | 1350 | 2970 | 2184 | 1393 | |||||||
| 16VC2400L-C20 | 2400 | 1764 | 1200 | 2640 | 1940 | 1238 | |||||||
| 12VC | 12VC2200L-C20 | 2200 | 1618 | 1500 | 2420 | 1780 | 1548 | 79.17 | 8380 | 3055*1734*2524 | SAE21 | ZC, CCS, IMO | |
| 12VC2000L-C20 | 2000 | 1470 | 2200 | 1617 | |||||||||
| 12VC2000L-C23 | 2000 | 1470 | 1350 | 2200 | 1617 | 1393 | |||||||
| 12VC1800L-C20 | 1800 | 1323 | 1200 | 1980 | 1455 | 1238 | |||||||
| 8CL | YC8CL1800L-C20 | 1800 | 1324 | 1000 | 1980 | 1456 | 1032 | 72.88 | 6500 | 3175×1315×2296 | SAE18 | ZY, ZC, CCS, IMO | |
| YC8CL1600L-C20 | 1600 | 1176 | 1760 | 1294 | |||||||||
| YC8CL1400L-C20 | 1400 | 1029 | 1540 | 1131 | |||||||||
| 6CA | YC6CA1600C | 1600 | 1176 | 1000 | 1760 | 1294 | 1032 | 60.3 | 5500 | 2496×1268×2189 | |||
| YC6CA1400C | 1400 | 1029 | 1540 | 1132 | |||||||||
| 6CL | YC6CL1200L-C20 | 1200 | 882 | 1000 | 1320 | 970 | 1032 | 54.6 | 5380 | 2496×1150×2172 | |||
| YC6CL1135L-C20 | 1135 | 835 | 1250 | 918 | |||||||||
| YC6CL1035L-C20 | 1035 | 760 | 1140 | 836 | Mechnical pump | ||||||||
| YC6CL960L-C20 | 960 | 706 | 1060 | 776 | |||||||||
| 6C | YC6C1100L-C20 | 1100 | 810 | 1500 | 1210 | 891 | 1548 | Electricsl unit pump | 39.58 | 4700 | 2476×1128×2069 | SAE18 | ZY, ZC, CCS, IMO |
| YC6C960L-C20 | 960 | 706 | 1350 | 1018 | 748 | 1393 | Mechnical pump | 2482×1113×1968 | |||||
| YC6C865L-C20 | 865 | 636 | 900 | 663 | |||||||||
| YC6C820L-C20 | 820 | 603 | 1200 | 800 | 590 | 1238 | |||||||
| YC6C730L-C20 | 730 | 536 | 528 | 387 | |||||||||
| 6CD | YC6CD900L-C20 | 900 | 662 | 1500 | 990 | 728 | 1548 | Mechnical pump | 32 | 4300 | 2426×1103×2153 | SAE18 | ZY, ZC, CCS, IMO |
| YC6CD750L-C20 | 750 | 551 | 1350 | 825 | 606 | 1393 | |||||||
| 6TD | YC6TD800-C20 | 800 | 588 | 1800 | 880 | 647 | 1858 | Turbo-charge,inter-cooler (Electric Common pump) | 19.59 | 2200 | 1986×1160×1696 | SAE14 | ZC,ZY,CCS, IMO |
| YC6TD760L-C20 | 760 | 559 | 836 | 615 | |||||||||
| YC6TD650L-C20 | 650 | 478 | 715 | 526 | |||||||||
| YC6TD600L-C20 | 600 | 441 | 1500 | 660 | 485 | 1548 | |||||||
| 6T | YC6T540C | 540 | 396 | 1800 | 594 | 435.6 | 1858 | Turbo-charging inter-cooler Mechcnial Pump | 16.35 | 1980 | 2125×1105×1645 | SAE14 | ZC, ZY, CCS, IMO |
| YC6T480C | 480 | 352 | 528 | 387.2 | |||||||||
| YC6T450C | 450 | 330 | 1500 | 495 | 363 | 1548 | |||||||
| YC6T400C | 400 | 294 | 440 | 323.4 | |||||||||
| YC6T380C | 380 | 279 | 418 | 307.4 | 1239 | ||||||||
| 6K | YC6K560L-C20 | 560 | 412 | 1800 | 616 | 453 | 1858 | Turbocharge, inter-cooler (Electrical Common Pump) | 12.94 | 1300 | 1790×993×1241 | SAE14 | CCS, IMO |
| YC6K520L-C20 | 520 | 382 | 572 | 420 | |||||||||
| YC6K460L-C20 | 460 | 338 | 506 | 372 | |||||||||
| YC6K490L-C20 | 490 | 360 | 1500 | 540 | 396 | 1548 | 12.2 | 1260 | |||||
| YC6K420L-C20 | 420 | 309 | 462 | 340 | |||||||||
| YC6K365L-C20 | 365 | 268 | 402 | 295 | |||||||||
| 6MJ | YC6MJ450L-C20 | 450 | 330 | 2100 | 495 | 363 | 2168 | Turbocharge, inter-cooler | 11.72 | 1200 | 1834×1028×1278 | ZC, ZY, CCS, IMO | |
| YC6MJ410L-C20 | 410 | 300 | 1800 | 451 | 330 | 1858 | |||||||
| YC6MJ365L-C20 | 365 | 267 | 1500 | 402 | 294 | 1548 | |||||||
| 6MK | YC6MK280L-C20 | 280 | 206 | 2100 | 308 | 226 | 2168 | Turbo-charging inter-cooler | 10.338 | 1100 | 1531×867×1187 | SAE14 | ZC, CCS, IMO |
| YC6MK350L-C20 | 350 | 257 | 1800 | 385 | 282 | 1858 | |||||||
| YC6MK320C | 320 | 235 | 352 | 258 | |||||||||
| YC6MK300L-C20 | 300 | 219 | 330 | 241 | |||||||||
| YC6MK240L-C23 | 240 | 176 | 264 | 193.6 | |||||||||
| YC6M300C | 300 | 219 | 1500 | 330 | 240.9 | 1548 | |||||||
| YC6M260C | 260 | 192 | 286 | 211.2 | |||||||||
| YC6M240C | 240 | 176 | 264 | 193.6 | |||||||||
| 6A | YC6A220C | 220 | 162 | 2300 | 242 | 178.2 | 2374 | Turbo-charging inter-cooler | 7.255 | 770 | 1415×871×1075 | SAE11.5 | ZC, CCS |
| YC6A190C | 190 | 140 | 1800 | 209 | 154 | 1858 | |||||||
| YC6A170C | 170 | 125 | 1500 | 187 | 137.5 | 1548 | |||||||
| YC6108ZLCB | 150 | 112 | 165 | 123.2 | |||||||||
| 6B | YC6B165C | 165 | 120 | 2300 | 182 | 132 | 2374 | Turbocharge | 6.871 | 700 | 1415×877×1025 | SAE11.5 | ZC, CCS |
| YC6B165L-C20 | 165 | 120 | 1800 | 182 | 132 | 1858 | CCS | ||||||
| YC6B150C | 150 | 110 | 165 | 121 | ZC, CCS | ||||||||
| YC6108ZCA | 140 | 103 | 2300 | 154 | 113.3 | 2374 | 1293×780×1198 | ||||||
| YC6108ZLCA | 122 | 90 | 1500 | 134 | 99 | 1548 | |||||||
| YC6108ZC | 109 | 80 | 120 | 88 | |||||||||
| YC6108CA1 | 112 | 82 | 2000 | 123 | 90.2 | 2065 | Natural aspiration | 1252×780×1075 | |||||
| YC6B100-C20 | 100 | 74 | 1800 | 110 | 81.4 | 1858 | |||||||
| YC6108CA | 86 | 63 | 1500 | 95 | 69.3 | 1500 | |||||||
| 6J | YC6106CA1 | 90 | 66 | 2000 | 99 | 72.6 | 2065 | Natural aspiration | 6.494 | 700 | 1252×780×1075 | SAE11.5 | ZC, ZY, CCS |
| YC6105CA | 72 | 53 | 1500 | 79 | 58.3 | 1548 | |||||||
| 4F | YC4F115-C31 | 115 | 85 | 3100 | 126 | 93.5 | 3200 | Turbocharge | 2.66 | 420 | 844×617×736 | SAE11.5 | CCS |
| YC4F100-C20 | 100 | 73 | 2950 | 110 | 80 | 3045 | |||||||
| YC4F90L-C20 | 90 | 63 | 2800 | 99 | 70 | 2890 | |||||||
| 4D | YC4D120Z-C20 | 120 | 90 | 3000 | 132 | 99 | 3193 | Turbocharge | 4.214 | 370 | 986×730×948 | SAE11.5 | CCS |
| YC4D100Z-C20 | 100 | 75 | 2400 | 110 | 82.5 | 2478 | |||||||
| YC4D80-C20 | 80 | 58 | 2400 | 88 | 63.8 | 2478 | Natural aspiration | ||||||
| YC4D75C | 75 | 55 | 1800 | 82.5 | 60.5 | 1858 | Turbocharge | 390 | 986×730×948 | SAE11.5 | ZC, ZY, CCS | ||
| YC4108ZC | 68 | 50 | 1500 | 75 | 55 | 1500 | 390 | 986×730×948 | |||||
| YC4D55C | 55 | 40 | 1800 | 60 | 44 | 1858 | Natural aspiration | 390 | 986×730×948 | ||||
| YC4108C | 54 | 40 | 1500 | 59.4 | 44 | 1548 | 390 | 986×730×948 | |||||
