Home > Products > Marine Engines > 800HP Start Inboard Marine Commercial Electric Engine Boat Diesel
800HP Start Inboard Marine Commercial Electric Engine Boat Diesel
Products DescriptionChina Original 800HP SC33W825Ca2 ShangHai Boat Ship Inboard Marine Diesel EngineEngine Specifications:ngine ModelSC33W825Ca2MakerShangHai diesel engine Co.,LtdRated power605kwRated speed1500rpmEngine TypeInline-6 Cylinders,4-stroke Diesel engineBore x Stroke180mm x 215mmCombustio......
Send Inquiry
Product Description
Products Description

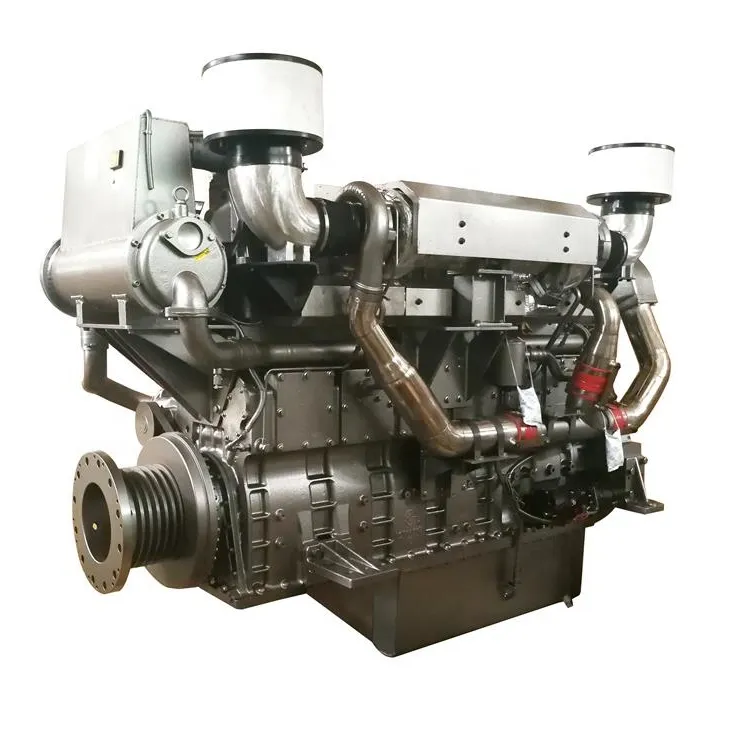

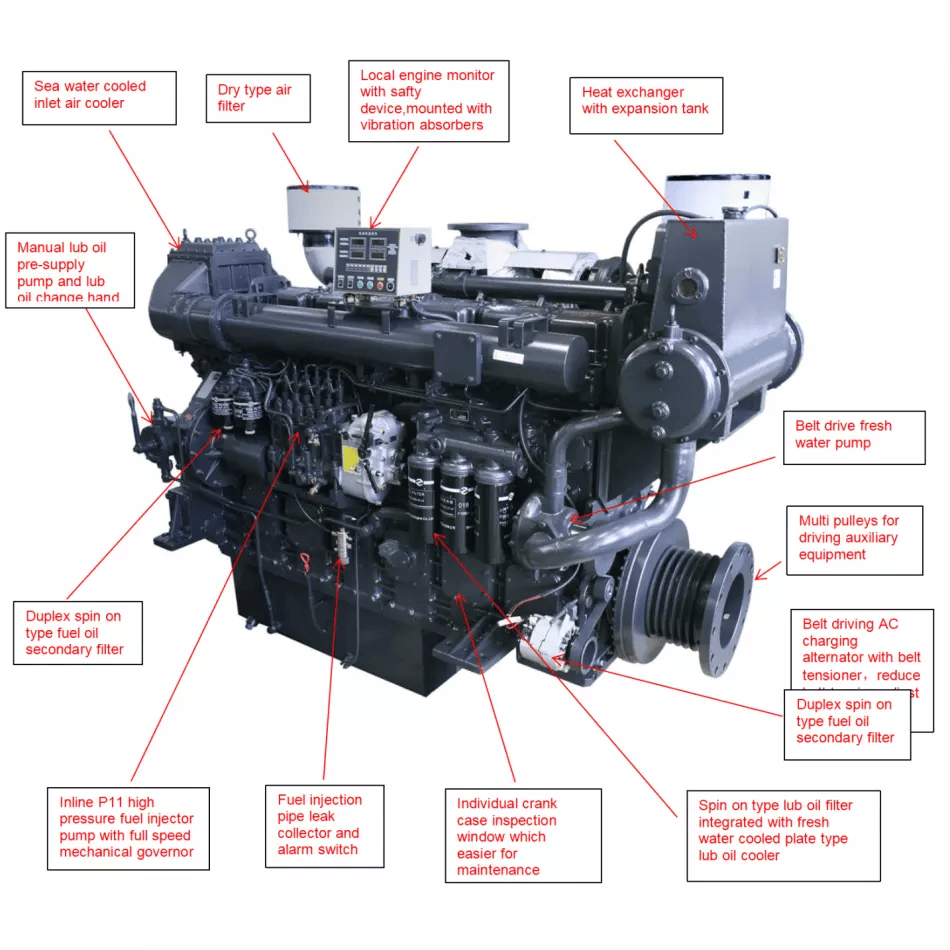

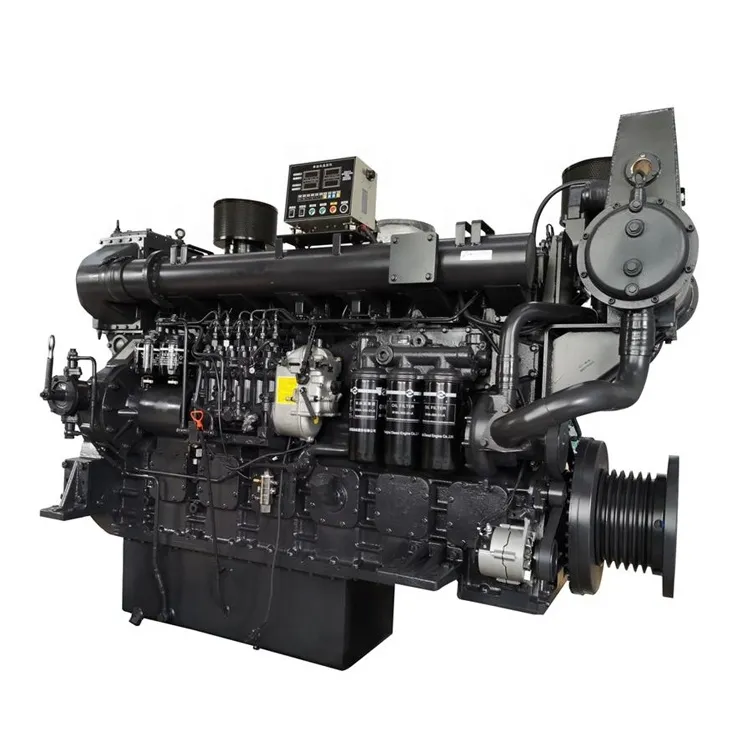

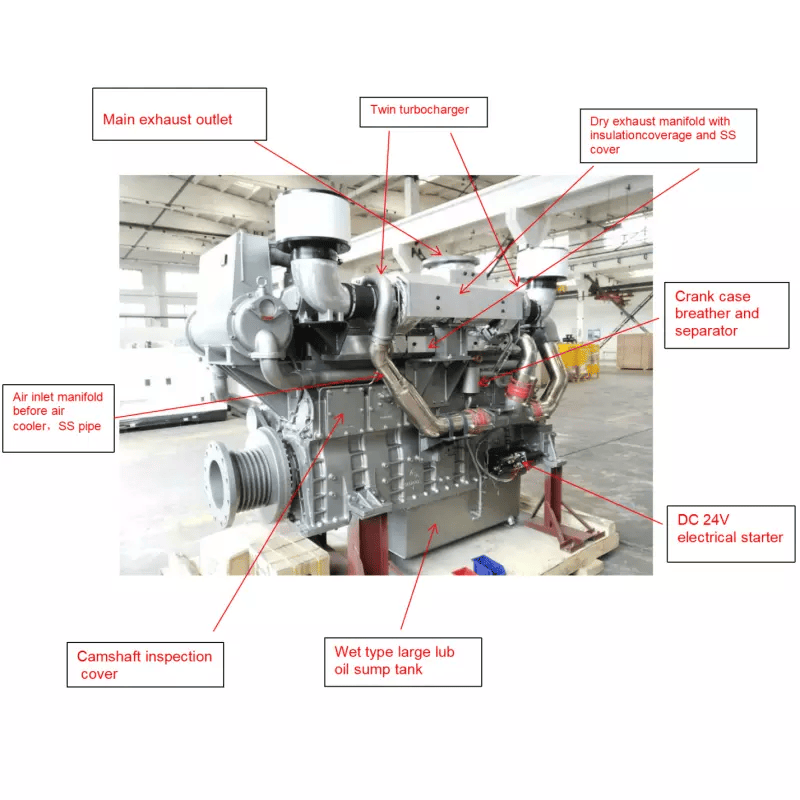

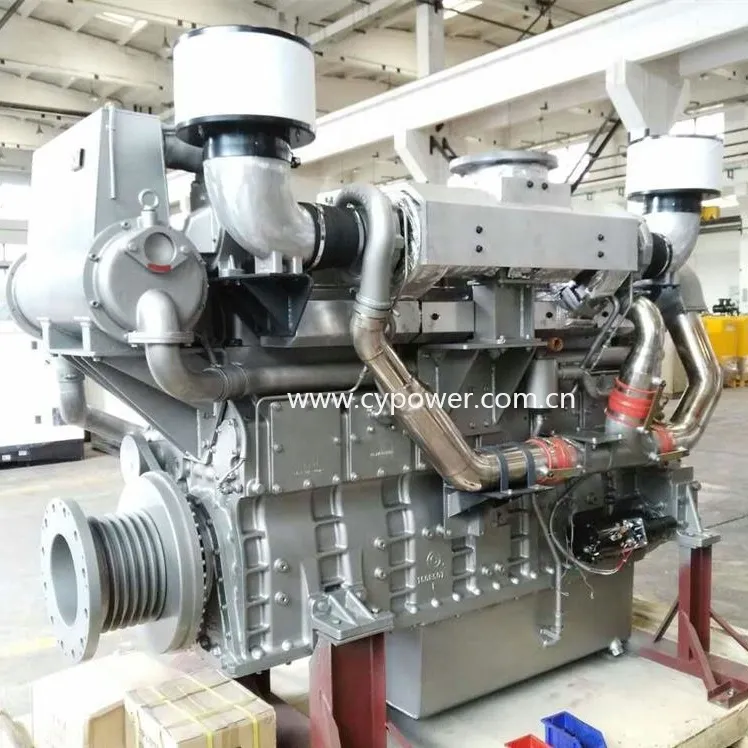

China Original 800HP SC33W825Ca2 ShangHai Boat Ship Inboard Marine Diesel Engine
Engine Specifications:
Engine Specifications:
ngine Model | SC33W825Ca2 |
Maker | ShangHai diesel engine Co.,Ltd |
Rated power | 605kw |
Rated speed | 1500rpm |
Engine Type | Inline-6 Cylinders,4-stroke Diesel engine |
Bore x Stroke | 180mm x 215mm |
Combustion system | Direct Injection |
Aspiration | Turbocharged & Intercooled |
Cylinder Number | 6 |
Cooling System | Heat Exchanger |
Displacement | 32.8L |
Rotation | Anti-clockwise (facing Flywheel) |
Size of Flywheel Housing &Flywheel | SAE0 & 18 in |
Emissions | IMO Tier II |
Dry Weight | 3400kg |
Dimension(L x W x H) | 2551 x 1283 x 1898mm |
Series Model:
Engine Model | Rated Power/Speed | UNA Rated power/speed(CCS) |
SC33W600Ca2 | 441kw/1200rpm | 431kw/1200rpm |
SC33W680Ca2 | 500kw/13500rpm | 490kw/1350rpm |
SC33W735Ca2 | 540kw/1350rpm | 529kw/1350rpm |
SC33W765Ca2 | 561kw/1500rpm | 549kw/1500rpm |
SC33W825Ca2 | 605kw/1500rpm | 588kw/1500rpm |
SC33W880Ca2 | 650kw/1500rpm | 640kw/1500rpm |
SC33W950Ca2 | ||
SC33W1000Ca2 | 735kw/1500rpm | 725kw/1500rpm |
SC33W1100Ca2 |
