China Sdec 200HP 155kw 6 Cylinder Marine Inboard Diesel Jet Boat Electric Engine
Products DescriptionChina SDEC 200hp 155kw 6 cylinder marine inboard diesel jet boat electric engineEngine Specifications:Engine ModelSC7H235CA2/SC15G500.1Ca2 MakerShangHai diesel engine Co.,Ltd Rated power155kw Rated speed2100rpm/1800rpm Engine TypeInline-6 Cylinders,4-stroke Diesel engine Bore x S......
Send Inquiry
Product Description
Products Description

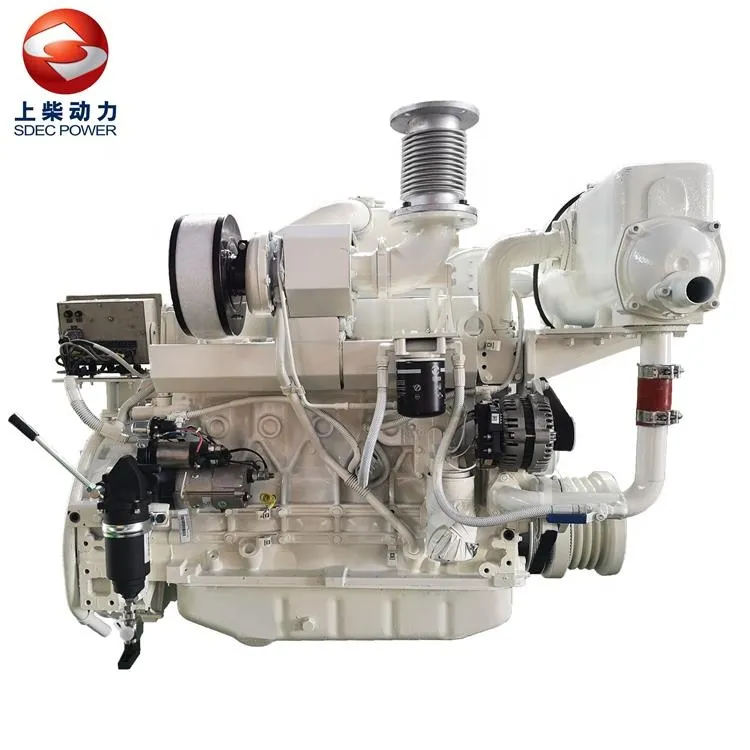

China SDEC 200hp 155kw 6 cylinder marine inboard diesel jet boat electric engine
Engine Specifications:
Engine Model | SC7H235CA2/SC15G500.1Ca2 | ||
Maker | ShangHai diesel engine Co.,Ltd | ||
Rated power | 155kw | ||
Rated speed | 2100rpm/1800rpm | ||
Engine Type | Inline-6 Cylinders,4-stroke Diesel engine | ||
Bore x Stroke | 105mm x 124mm | ||
Combustion system | Direct Injection | ||
Aspiration | Turbocharged & Intercooled | ||
Cylinder Number | 6 | ||
Cooling System | Heat Exchanger | ||
Displacement | 6.44L | ||
Rotation | Anti-clockwise (facing Flywheel) | ||
Size of Flywheel Housing &Flywheel | SAE3#11 1/2 in | ||
Certification&Emissions | CCS+IMO Tier II | ||
Dry Weight | 675kg | ||

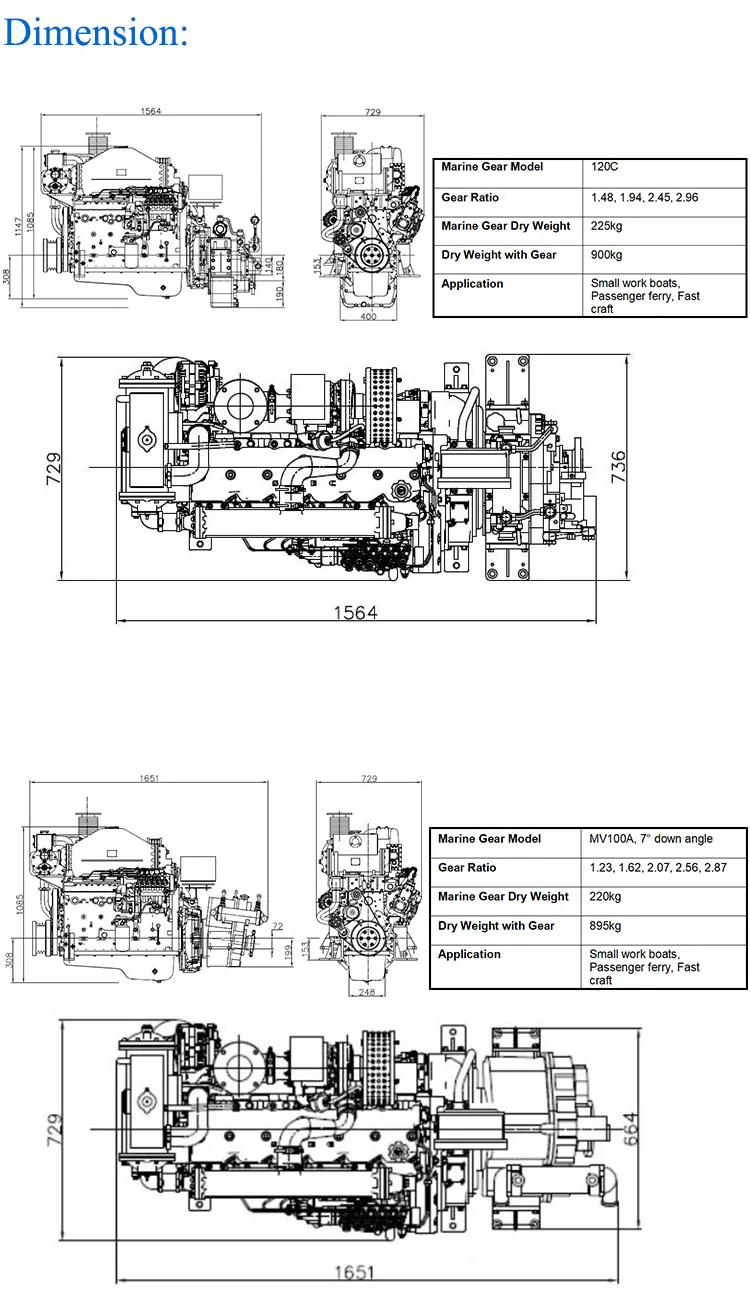

Dimension(L x W x H) | 1266 x 729 x 1179mm | ||
Series Model:
Engine Model | Rated Power/Speed (kw/r/min) | Overload Power/Speed (kw/r/min) | UNA Rated power/speed(kw/r/min) | UNA Overload Power/Speed (kw/r/min) |
SC7H175CA2 | 115kw/1500rpm | 127kw/1545rpm | 112kw/1500rpm | 123kw/1545rpm |
SC7H195CA2 | 129kw/1500rpm | 142kw/1545rpm | 125kw/1500rpm | 138kw/1545rpm |
SC7H190CA2 | 125kw/1800rpm | 137kw/1854rpm | 121kw/1800rpm | 133kw/1854rpm |
SC7H220CA2 | 144kw/1800rpm | 159kw/1854rpm | 140kw/1800rpm | 154kw/1854rpm |
SC7H235CA2 | 155kw/2100rpm | 170kw/2163rpm | 150kw/2100rpm | 165kw/2163rpm |
SC7H250CA2 | 167kw/2300rpm | 184kw/2369rpm | 162kw/2300rpm | 178kw/2369rpm |
SC7H230CF2 | 154kw/1500rpm | 170kw/1500rpm | 149kw/1500rpm | 164kw/1500rpm |
SC7H250CF2 | 168kw/1500rpm | 185kw/1500rpm | 163kw/1500rpm | 179kw/1500rpm |
Marine Gear Specification:
Gear Model | 120C | HC138 | |
Type | Hydraulic multi-disc clutch | ||
Reduction Ratio | 1.94,2.45 | 2.00,3.00,3.57,4.05,4.45 | |
Direction of Rotation | Clockwise or anti-clockwise from stern | ||
Dry weight | 225kg | 360kg | |
Dimension(L x W x H) | 432 x 440 x 650mm | 520x 792x 760mm | |
Mechanical Efficiency | 97% | ||

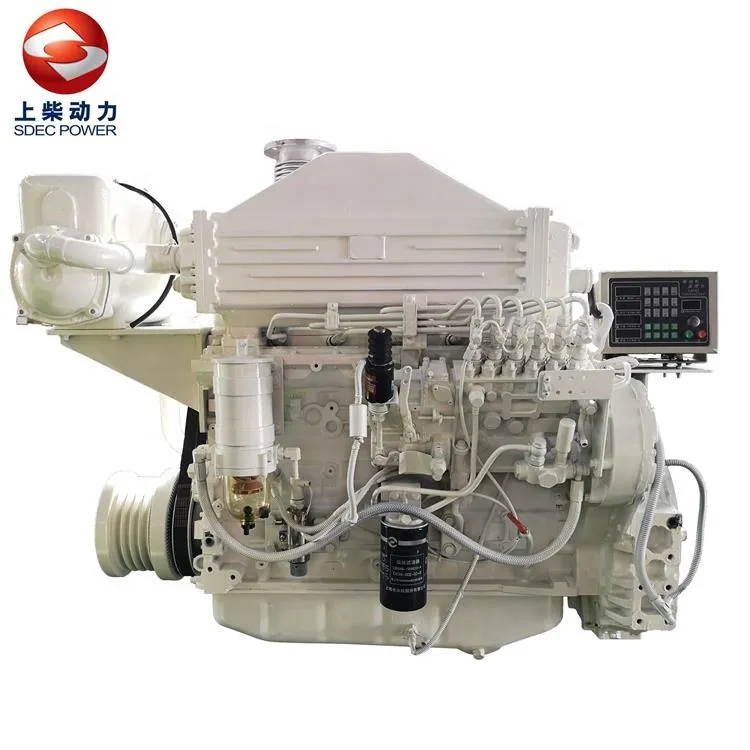

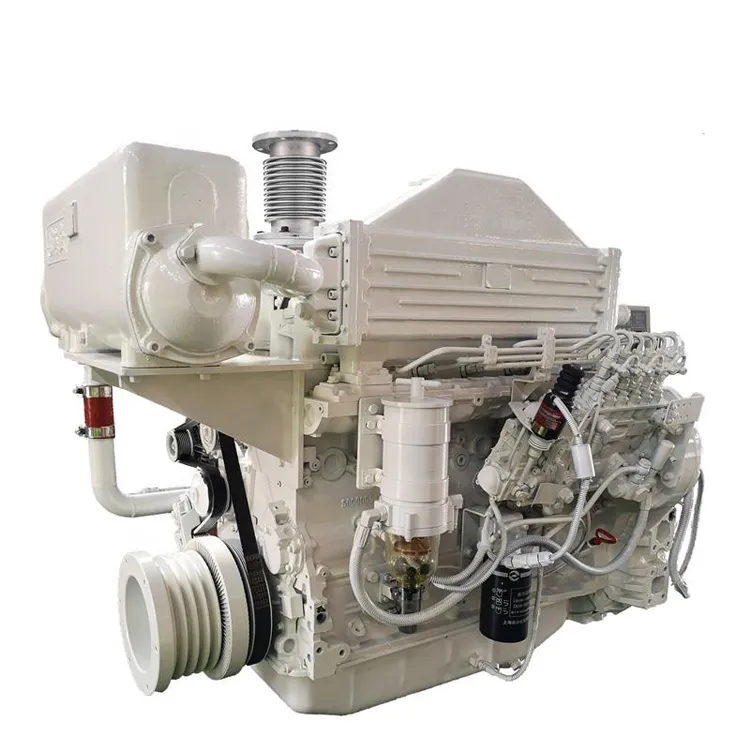

Details Images
