              Chinese Displacement Shanghai Boat Ship Inboard Marine Diesel Engine
              • Chinese Displacement Shanghai Boat Ship Inboard Marine Diesel EngineChinese Displacement Shanghai Boat Ship Inboard Marine Diesel Engine
              • Chinese Displacement Shanghai Boat Ship Inboard Marine Diesel EngineChinese Displacement Shanghai Boat Ship Inboard Marine Diesel Engine
              • Chinese Displacement Shanghai Boat Ship Inboard Marine Diesel EngineChinese Displacement Shanghai Boat Ship Inboard Marine Diesel Engine
              • Chinese Displacement Shanghai Boat Ship Inboard Marine Diesel EngineChinese Displacement Shanghai Boat Ship Inboard Marine Diesel Engine

              Chinese Displacement Shanghai Boat Ship Inboard Marine Diesel Engine

              Recommend Products Products DescriptionSDEC SC7H250CA2 model 220hp propulsion integration shaft boat marine diesel enginengine ModelSC7H250CA2MakerShangHai diesel engine Co.,LtdRated power167kwRated speed2300rpmEngine TypeInline-6 Cylinders,4-stroke Diesel engineBore x Stroke105mm x 124mmCombustion ......

              Send Inquiry

              Product Description

              Recommend Products

              Products Description
              Chinese Displacement Shanghai Boat Ship Inboard Marine Diesel Engine

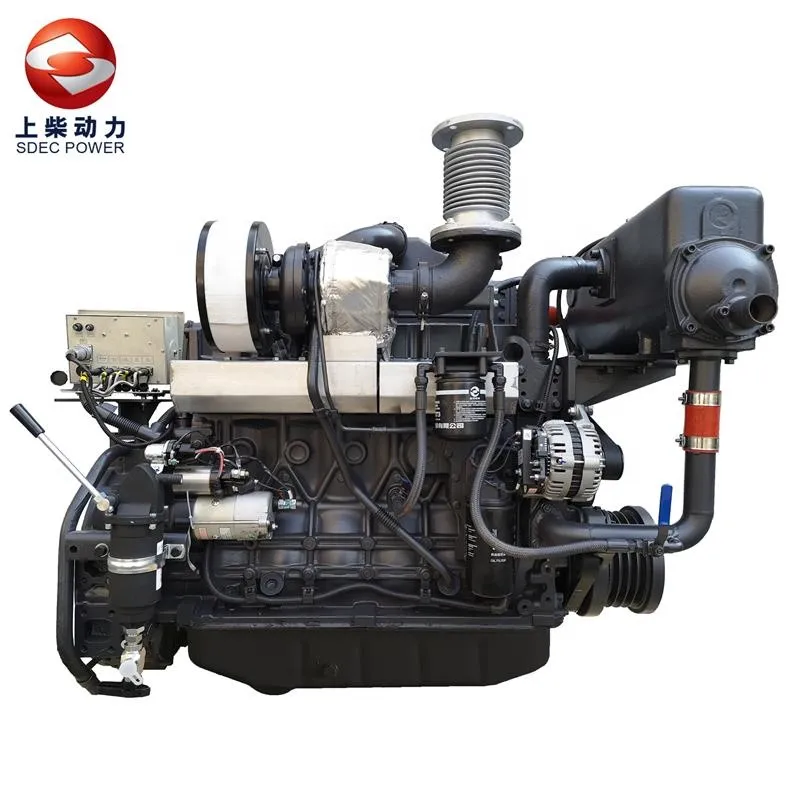

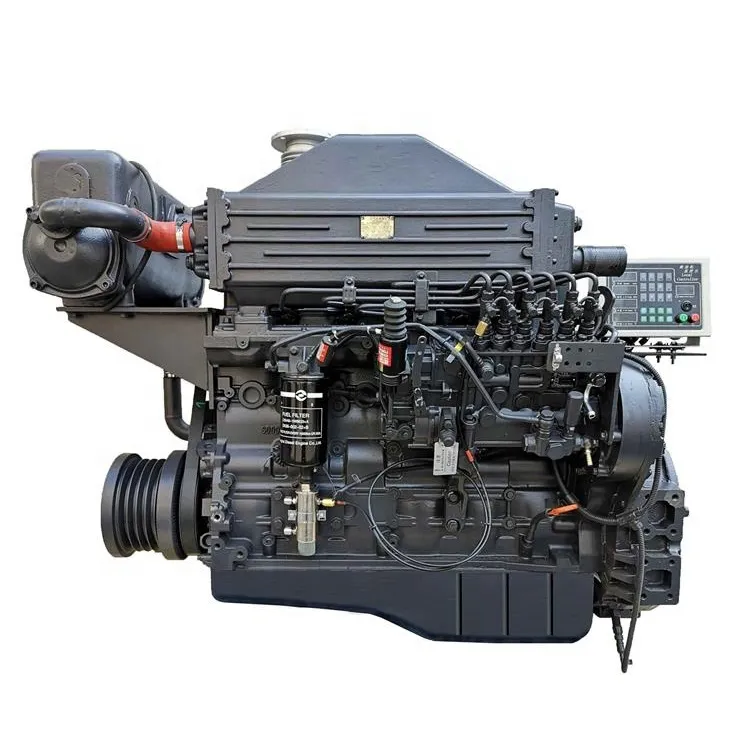

              SDEC SC7H250CA2 model 220hp propulsion integration shaft boat marine diesel engine
              ngine Model
              SC7H250CA2
              Maker
              ShangHai diesel engine Co.,Ltd
              Rated power
              167kw
              Rated speed
              2300rpm
              Engine Type
              Inline-6 Cylinders,4-stroke Diesel engine
              Bore x Stroke
              105mm x 124mm
              Combustion system
              Direct Injection
              Aspiration
              Turbocharged & Intercooled
              Cylinder Number
              6
              Cooling System
              Heat Exchanger
              Displacement
              6.44L
              Rotation
              Anti-clockwise (facing Flywheel)
              Size of Flywheel Housing &Flywheel
              SAE3#11 1/2 in
              Certification&Emissions
              CCS+IMO Tier II
              Dry Weight
              675kg
              Dimension(L x W x H)
              1266 x 729 x 1179mm
              Series Model:
              Engine Model
              Rated Power/Speed
              (kw/r/min)
              Overload Power/Speed
              (kw/r/min)
              UNA Rated power/speed(kw/r/min)
              UNA Overload Power/Speed
              (kw/r/min)
              SC7H175CA2
              115kw/1500rpm
              127kw/1545rpm
              112kw/1500rpm
              123kw/1545rpm
              SC7H195CA2
              129kw/1500rpm
              142kw/1545rpm
              125kw/1500rpm
              138kw/1545rpm
              SC7H190CA2
              125kw/1800rpm
              137kw/1854rpm
              121kw/1800rpm
              133kw/1854rpm
              SC7H220CA2
              144kw/1800rpm
              159kw/1854rpm
              140kw/1800rpm
              154kw/1854rpm
              SC7H235CA2
              155kw/2100rpm
              170kw/2163rpm
              150kw/2100rpm
              165kw/2163rpm
              SC7H250CA2
              167kw/2300rpm
              184kw/2369rpm
              162kw/2300rpm
              178kw/2369rpm
              SC7H230CF2
              154kw/1500rpm
              170kw/1500rpm
              149kw/1500rpm
              164kw/1500rpm
              SC7H250CF2
              168kw/1500rpm
              185kw/1500rpm
              163kw/1500rpm
              179kw/1500rpm
              Marine Gear Specification:
              Gear Model
              120C
              HC138
              Type
              Hydraulic multi-disc clutch

              Reduction Ratio
              1.94,2.45
              2.00,3.00,3.57,4.05,4.45
              Direction of Rotation
              Clockwise or anti-clockwise from stern

              Dry weight
              225kg
              360kg
              Dimension(L x W x H)
              432 x 440 x 650mm
              520x 792x 760mm
              Mechanical Efficiency
              97%

              Chinese Displacement Shanghai Boat Ship Inboard Marine Diesel Engine
              Chinese Displacement Shanghai Boat Ship Inboard Marine Diesel Engine
              Chinese Displacement Shanghai Boat Ship Inboard Marine Diesel Engine
              Company Profile
              Chinese Displacement Shanghai Boat Ship Inboard Marine Diesel Engine
              Our Advantages
              Chinese Displacement Shanghai Boat Ship Inboard Marine Diesel Engine
