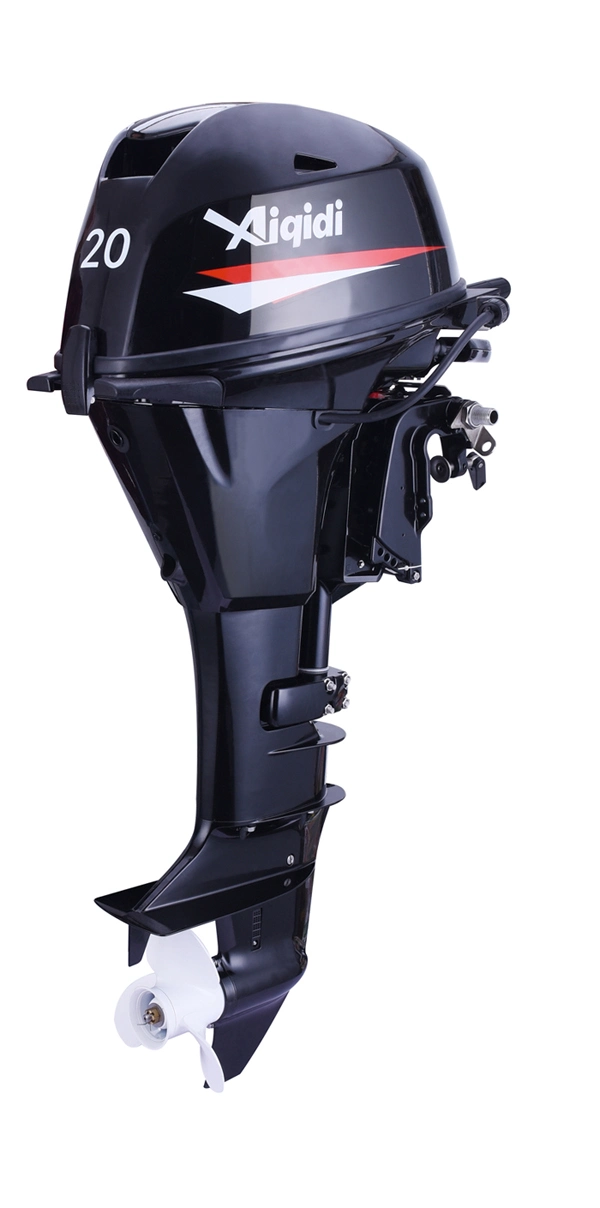

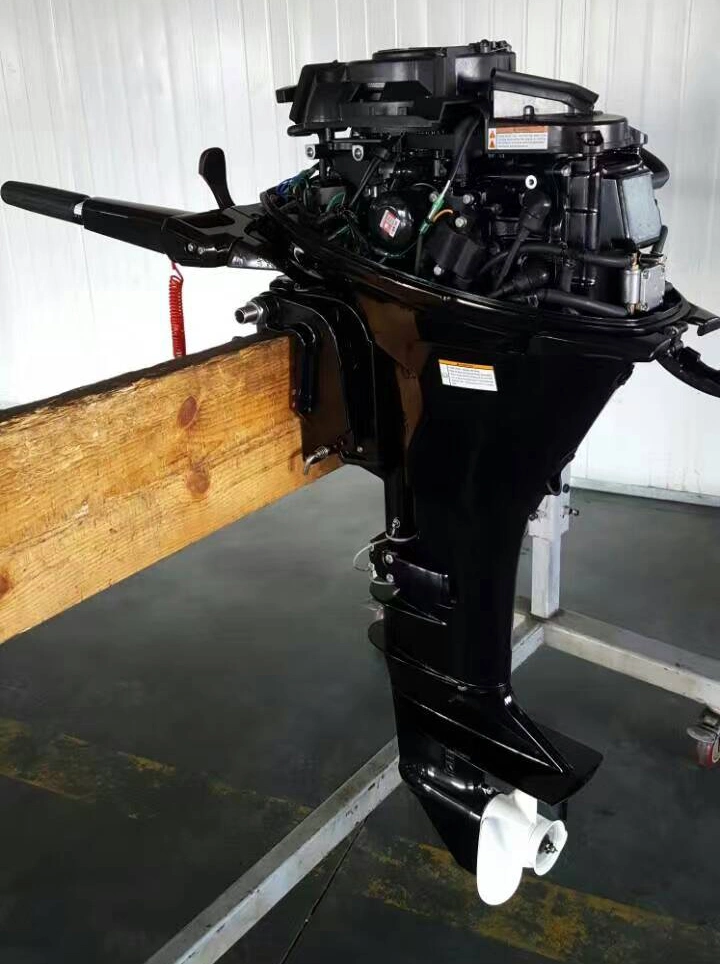

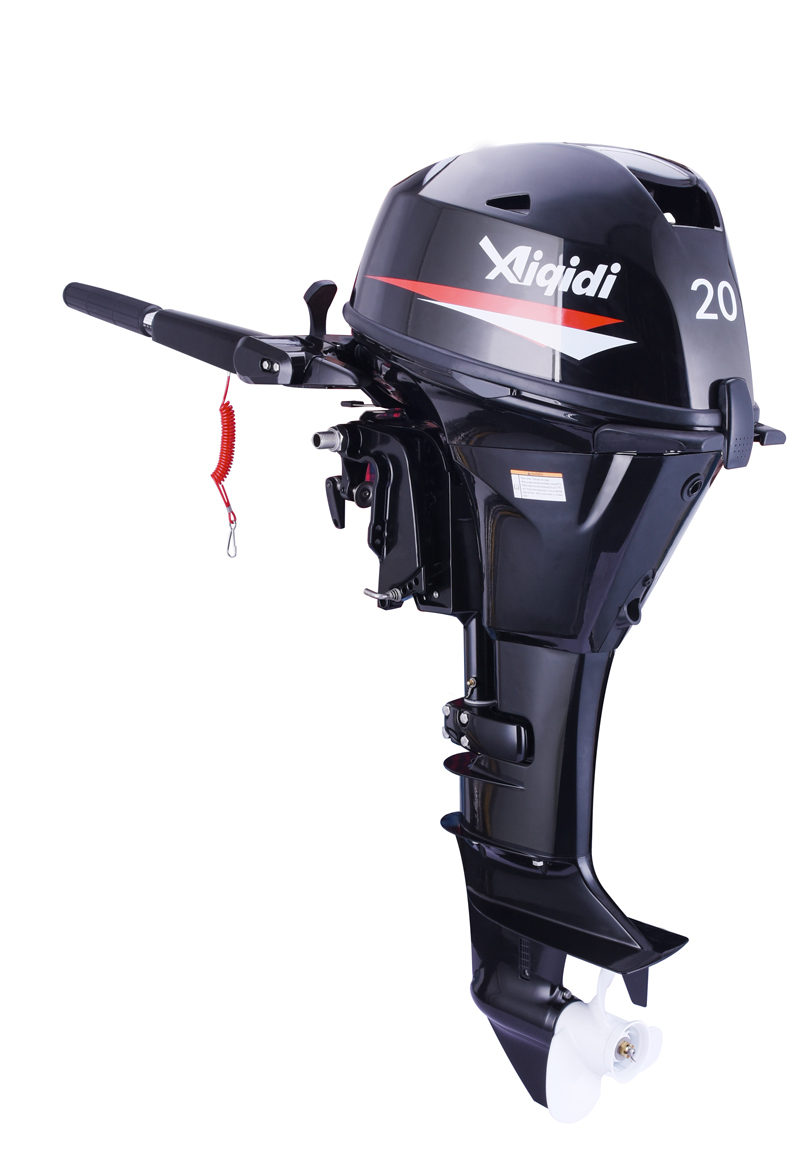

High Quality 4-Stroke 20HP Aiqidi Outboard Motor F20
Product modelF20-LEngine Model4 STROKE ,2 CylinderFull Throttle Operating Range 5000-6000 r/m Idling Speed 1050±50r/m Engine Displacement(cc)362Bore×Stroke(mm)63×58.1Ignition System CDI Spark Plug NGK......
Send Inquiry
Product Description
| Product model | F20-L |
| Engine Model | 4 STROKE ,2 Cylinder |
| Full Throttle Operating Range | 5000-6000 r/m |
| Idling Speed | 1050±50r/m |
| Engine Displacement(cc) | 362 |
| Bore×Stroke(mm) | 63×58.1 |
| Ignition System | CDI |
| Spark Plug | NGK DPR6ED-9 |
| Spark Plug Gap | 0.8-0.9mm |
| Control System | Tiller Handle |
| Starting System | Manual |
| Starting Carburation System | Choke Valve |
| Max. Power Output[kw(ps)/r/min] | 14.7(20)@6000 |
| Gear Position | Forward-Neutral-Reverse |
| Gear Ratio | 2.08(27/13) |
| Recommended Fuel | Unleaded Gasoline |
| Gear Oil | 0.250L |
| Transom Height(mm) | 438/565 |
| Fuel Capacity | 24L(extraposition) |
| G.W/N.Weight(kgs) | L:67.5/53 S:65.5/51 |
| Propeller Options(in) | 3-9 1/4×11 |
| Packing Size(mm) | L:1420×770×525 S:1293×770×525 |
