Sc 7h 115kw 6 Cylinder 150HP Marine Diesel Engine
SDEC EngineProduct Description New original SC 7H 115kw 6 cylinder 150hp marine diesel engineENGINE SPECIFICATIONEngine TypeInline-4/6 Cylinders, 4-stroke Diesel EngineBore x Stroke105 mm x 124 mmCombution SystemDirect InjectionAspirationTurbochargedStarting System24V Eletrical StarterCooling Syste......
Send Inquiry
Product Description
SDEC Engine
Product Description
New original SC 7H 115kw 6 cylinder 150hp marine diesel engine
| ENGINE SPECIFICATION | |
| Engine Type | Inline-4/6 Cylinders, 4-stroke Diesel Engine |
| Bore x Stroke | 105 mm x 124 mm |
| Combution System | Direct Injection |
| Aspiration | Turbocharged |
| Starting System | 24V Eletrical Starter |
| Cooling System | Heat Exchanger |
| Displacement | 6.44 L |
| Rotation | Anti-clockwise Facing Flywheel |
| Size of Flyingwheel Housing & Flywheel | SAE 3 & 11 1/2 in. |
| Emissions | IMO TIER II |
| Dry Weight | 675 kg |
| Dimension(L x W x H) | 1266 x 729 x 1179 mm |

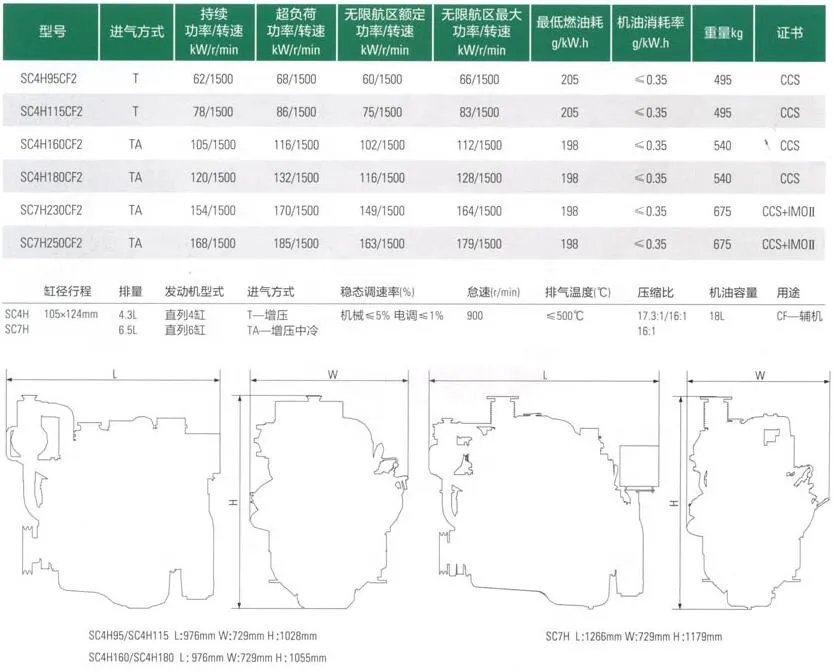

| Model | Output (KW) | Speed (RPM) | Cylinder No. | Intake Method | Bore/Stroke (mm) | Weight (KG) | Size ( L*W*H)mm | Noted |
| SC4H95CF2 | 62 | 1500 | 4 | T | 105*124 | 495 | 976*729*1028 | CF |
| SC4H115CF2 | 78 | 1500 | 4 | T | 105*124 | 495 | 976*729*1028 | CF |
| SC4H160CF2 | 105 | 1500 | 4 | TA | 105*124 | 540 | 976*729*1055 | CF |
| SC4H180CF2 | 120 | 1500 | 4 | TA | 105*124 | 540 | 976*729*1055 | CF |
| CF7H230CF2 | 154 | 1500 | 6 | TA | 105*124 | 675 | 1266*729*1179 | CF |
| SC7H250CF2 | 168 | 1500 | 6 | TA | 105*124 | 675 | 1266*729*1179 | CF |
CF match the marine genset
generator : Stamford / Marathon / KF / Leroy - Somer
