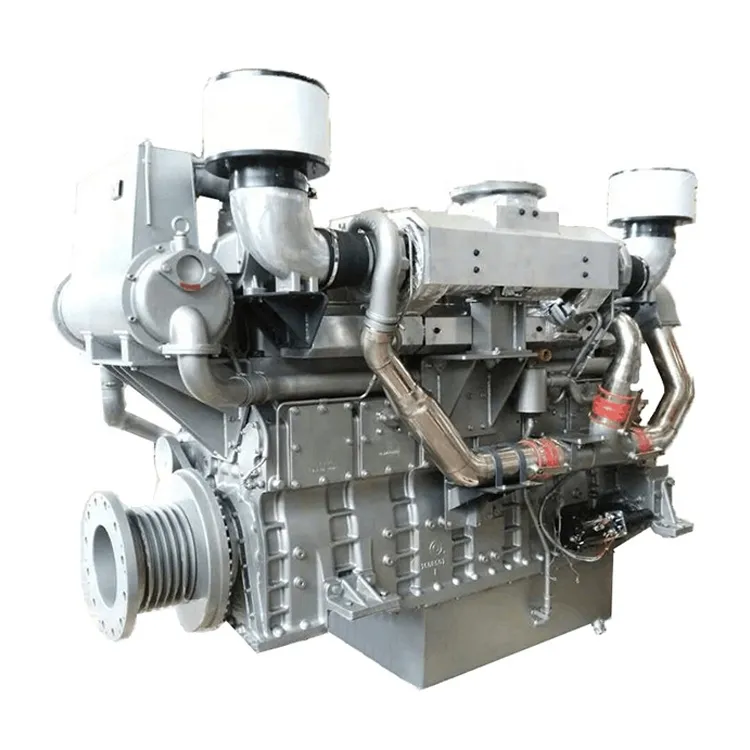

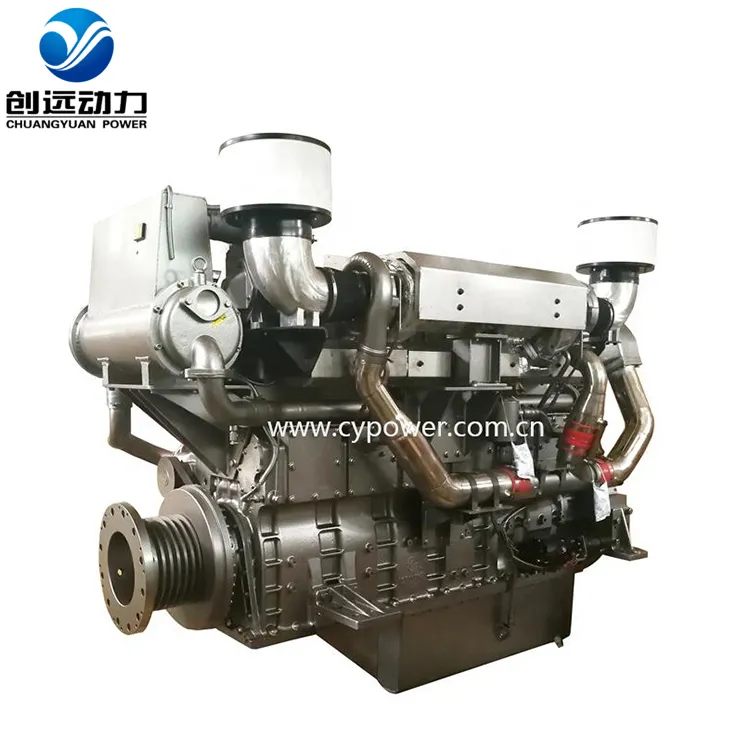

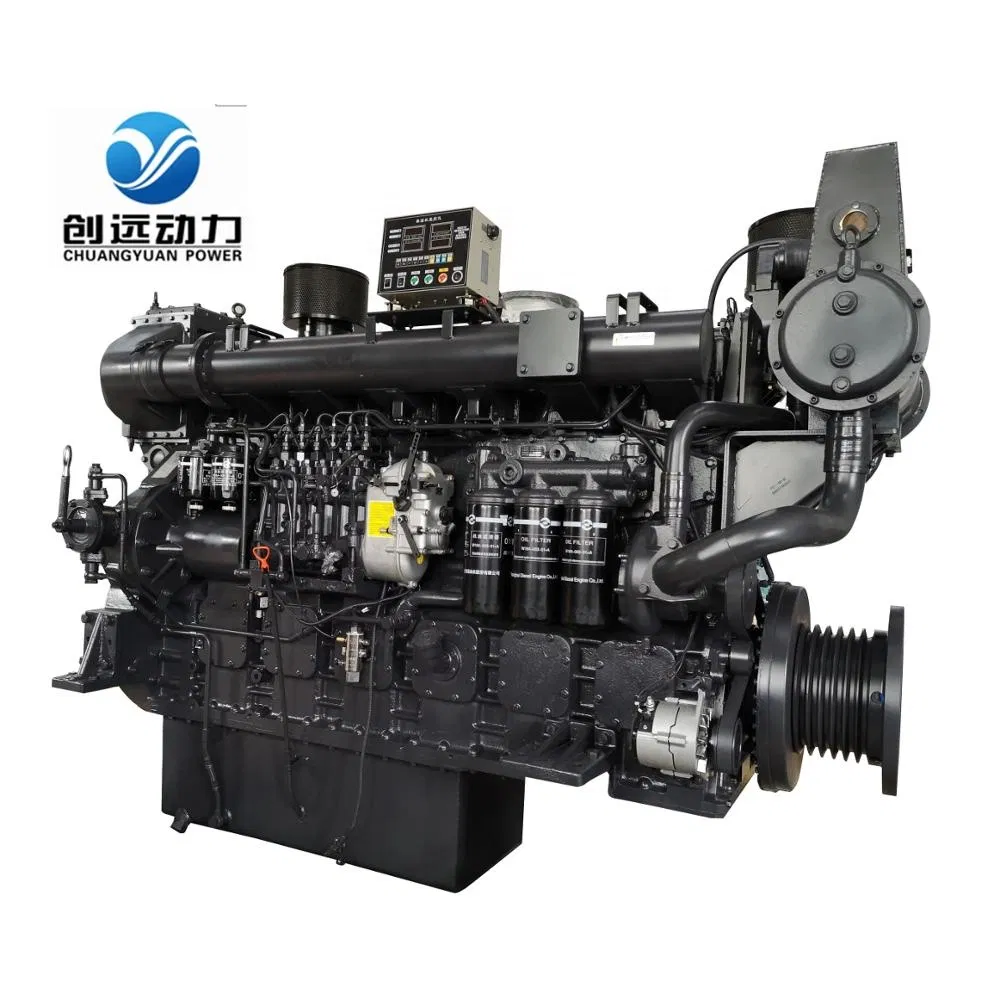

Sc7h 4 Stroke 155kw Various Brand Fast Ferry Craft Jet Marine Diesel Engine
Products DescriptionAnti-clockwise hydraulic multi-disc clutch outboard 4 stroke 155kw v8 marine diesel jet engineEngine Specifications:Engine ModelSC7H235CA2MakerShangHai diesel engine Co.,LtdRated power155kwRated speed2100rpmEngine TypeInline-6 Cylinders,4-stroke Diesel engineBore x Stroke105mm x ......
Send Inquiry
Product Description
Products Description
Anti-clockwise hydraulic multi-disc clutch outboard 4 stroke 155kw v8 marine diesel jet engine
Engine Specifications:
Engine Specifications:
Engine Model | SC7H235CA2 |
Maker | ShangHai diesel engine Co.,Ltd |
Rated power | 155kw |
Rated speed | 2100rpm |
Engine Type | Inline-6 Cylinders,4-stroke Diesel engine |
Bore x Stroke | 105mm x 124mm |
Combustion system | Direct Injection |
Aspiration | Turbocharged & Intercooled |
Cylinder Number | 6 |
Cooling System | Heat Exchanger |
Displacement | 6.44L |
Rotation | Anti-clockwise (facing Flywheel) |
Size of Flywheel Housing &Flywheel | SAE3#11 1/2 in |
Certification&Emissions | CCS+IMO Tier II |
Dry Weight | 675kg |
Dimension(L x W x H) | 1266 x 729 x 1179mm |
Series Model:
Engine Model | Rated Power/Speed (kw/r/min) | Overload Power/Speed (kw/r/min) | UNA Rated power/speed(kw/r/min) | UNA Overload Power/Speed (kw/r/min) |
SC7H175CA2 | 115kw/1500rpm | 127kw/1545rpm | 112kw/1500rpm | 123kw/1545rpm |
SC7H195CA2 | 129kw/1500rpm | 142kw/1545rpm | 125kw/1500rpm | 138kw/1545rpm |
SC7H190CA2 | 125kw/1800rpm | 137kw/1854rpm | 121kw/1800rpm | 133kw/1854rpm |
SC7H220CA2 | 144kw/1800rpm | 159kw/1854rpm | 140kw/1800rpm | 154kw/1854rpm |
SC7H235CA2 | 155kw/2100rpm | 170kw/2163rpm | 150kw/2100rpm | 165kw/2163rpm |
SC7H250CA2 | 167kw/2300rpm | 184kw/2369rpm | 162kw/2300rpm | 178kw/2369rpm |
SC7H230CF2 | 154kw/1500rpm | 170kw/1500rpm | 149kw/1500rpm | 164kw/1500rpm |
SC7H250CF2 | 168kw/1500rpm | 185kw/1500rpm | 163kw/1500rpm | 179kw/1500rpm |
Marine Gear Specification:
Gear Model | 120C | HC138 | |
Type | Hydraulic multi-disc clutch | ||
Reduction Ratio | 1.94,2.45 | 2.00,3.00,3.57,4.05,4.45 | |
Direction of Rotation | Clockwise or anti-clockwise from stern | ||
Dry weight | 225kg | 360kg | |
Dimension(L x W x H) | 432 x 440 x 650mm | 520x 792x 760mm | |
Mechanical Efficiency | 97% | ||
