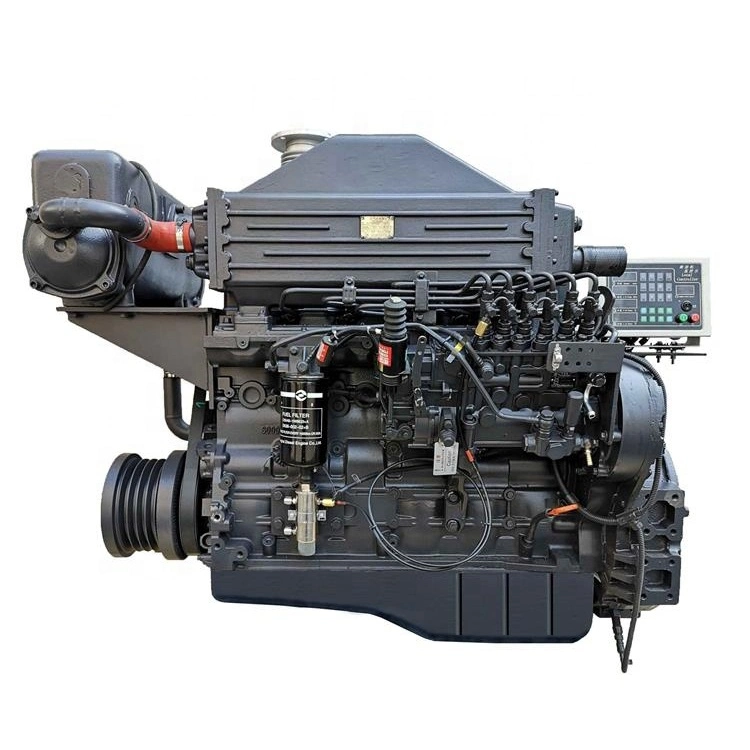

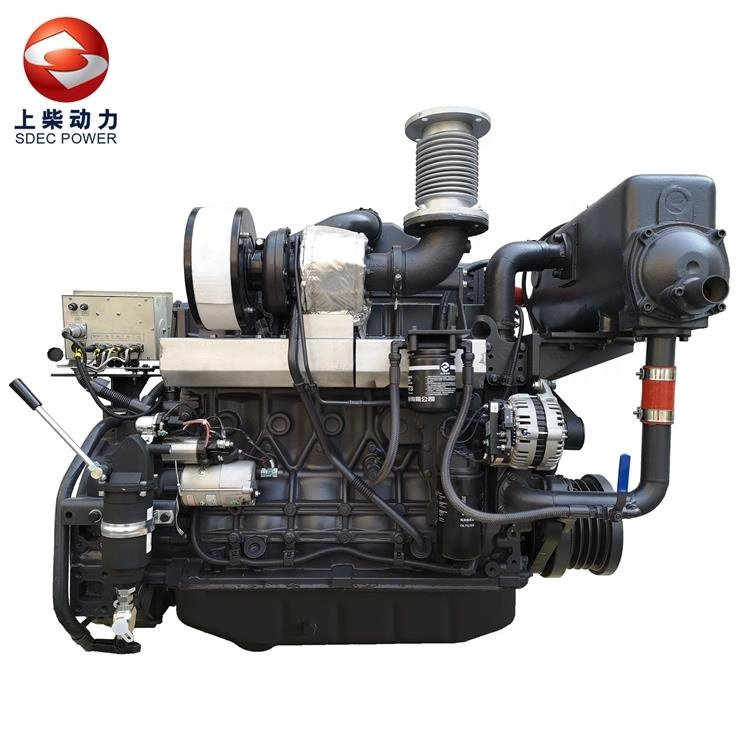

Sdec Sc7h250ca2 Model 220HP Propulsion Integration Shaft Boat Marine Diesel Engine

Engine  Model

SC7H250CA2

Maker

ShangHai diesel engine Co.,Ltd

Rated power

167kw

Rated speed

                                           2300rpm

Engine Type

Inline-6 Cylinders,4-stroke Diesel engine

Bore x Stroke

                                     105mm x 124mm

Combustion system

Direct Injection

Aspiration

Turbocharged & Intercooled

Cylinder Number

                                                6

Cooling System

Heat Exchanger

Displacement

6.44L

  Rotation

Anti-clockwise (facing Flywheel)

Size of Flywheel Housing &Flywheel

SAE3#11 1/2 in

Certification&Emissions

CCS+IMO Tier II

Dry Weight

675kg

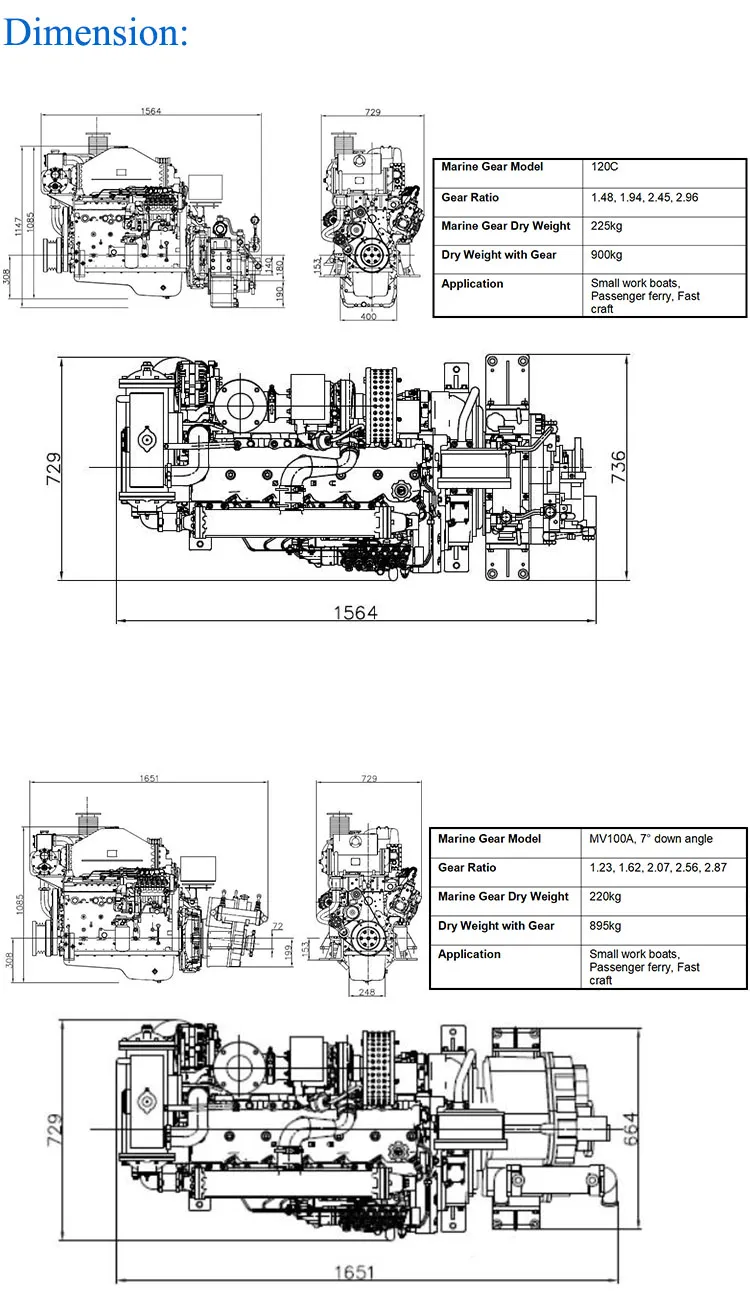

Dimension(L x W x H)

1266 x 729 x 1179mm

Engine  Model

Rated Power/Speed

     (kw/r/min)

Overload Power/Speed

(kw/r/min)

UNA Rated power/speed(kw/r/min)

UNA Overload Power/Speed

(kw/r/min)

SC7H175CA2

115kw/1500rpm

127kw/1545rpm

112kw/1500rpm

123kw/1545rpm

SC7H195CA2

129kw/1500rpm

142kw/1545rpm

125kw/1500rpm

138kw/1545rpm

SC7H190CA2

125kw/1800rpm

137kw/1854rpm

121kw/1800rpm

133kw/1854rpm

SC7H220CA2

144kw/1800rpm

159kw/1854rpm

140kw/1800rpm

154kw/1854rpm

SC7H235CA2

155kw/2100rpm

170kw/2163rpm

150kw/2100rpm

165kw/2163rpm

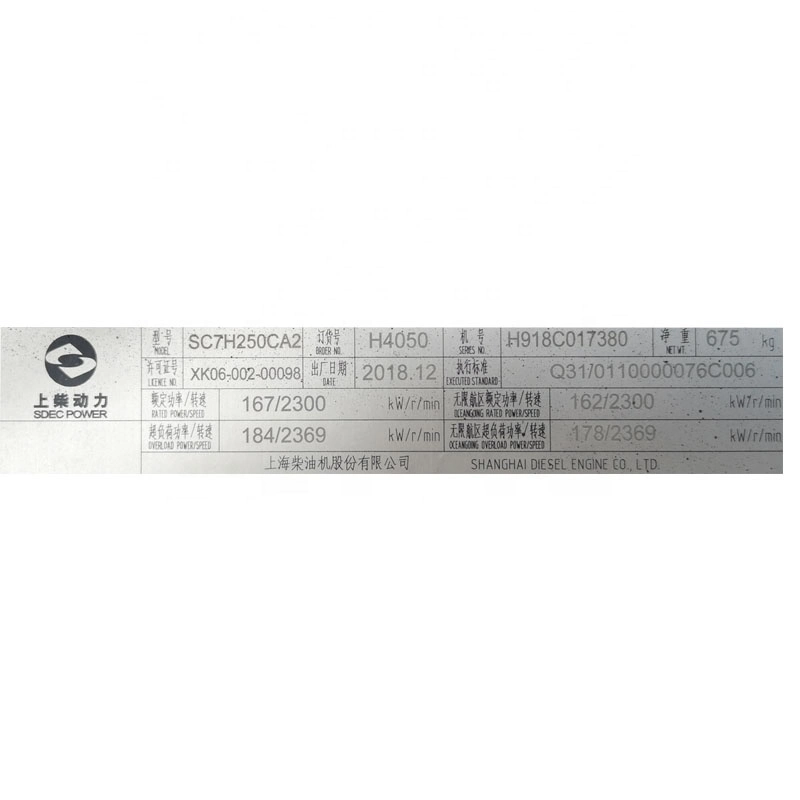

SC7H250CA2

167kw/2300rpm

184kw/2369rpm

162kw/2300rpm

178kw/2369rpm

SC7H230CF2

154kw/1500rpm

170kw/1500rpm

149kw/1500rpm

164kw/1500rpm

SC7H250CF2

168kw/1500rpm

185kw/1500rpm

163kw/1500rpm

179kw/1500rpm

Gear Model

120C

HC138

Type

Hydraulic multi-disc clutch

Reduction Ratio

1.94,2.45

2.00,3.00,3.57,4.05,4.45

Direction of  Rotation

Clockwise or anti-clockwise from stern

Dry weight

225kg

360kg

Dimension(L x W x H)

432 x 440 x 650mm

520x 792x 760mm

Mechanical Efficiency

97%
