Product Description

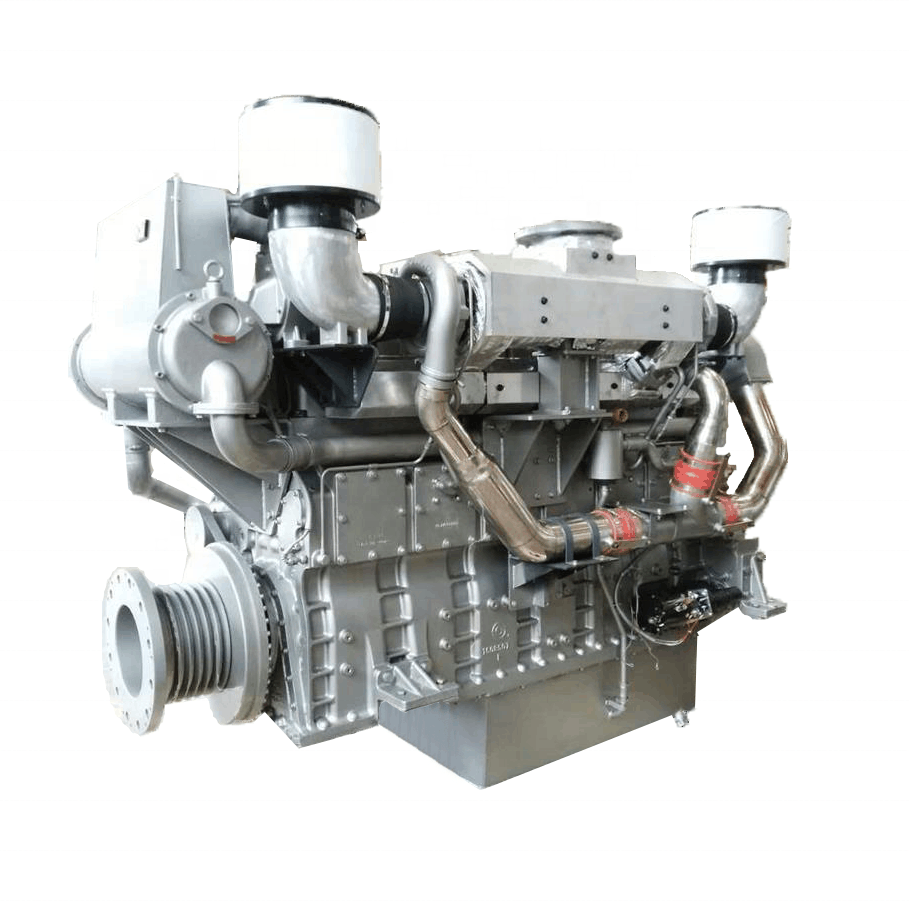

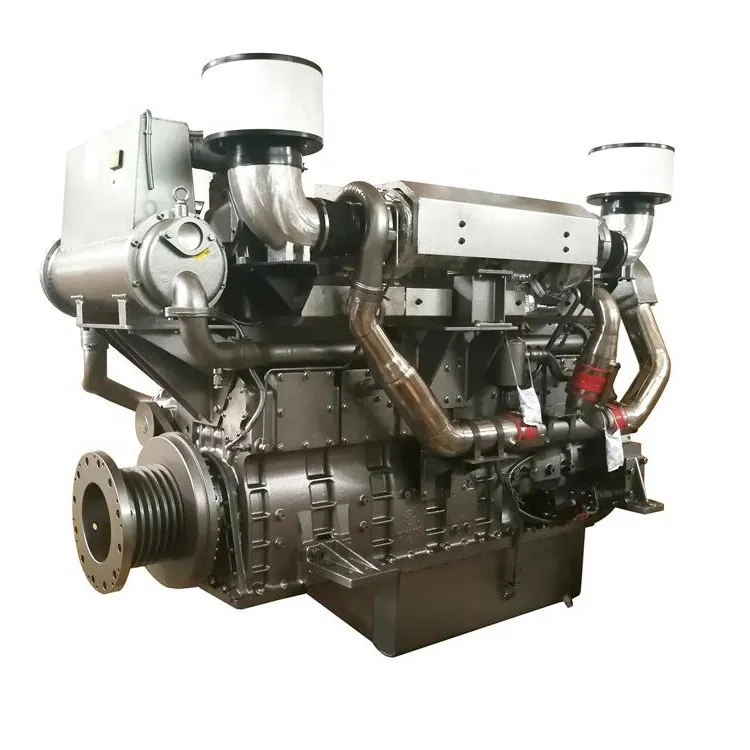

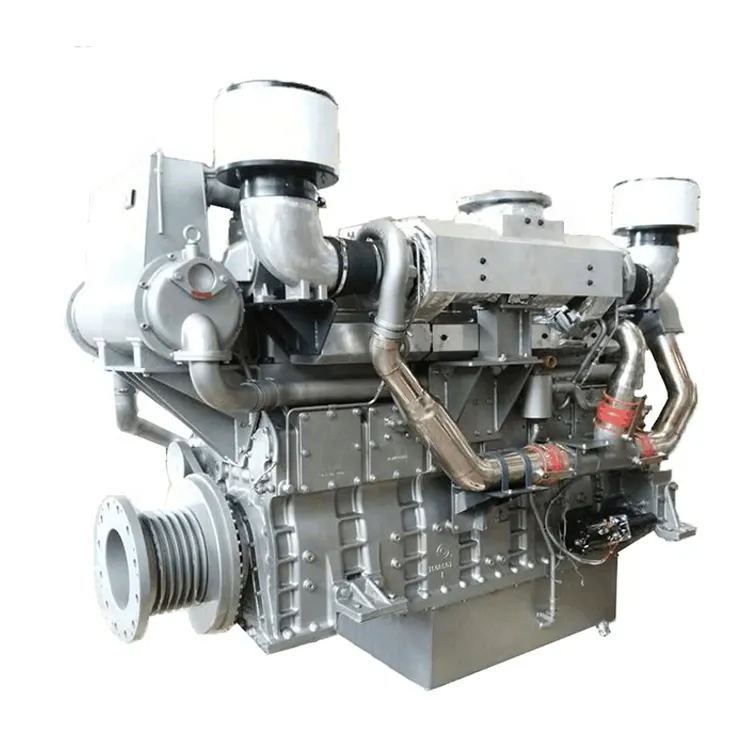

ShangHai 4 stroke 600 hp 1000 hp inboard marine diesel jet boat electric engine
Engine Specifications:
Engine Model | SC33W825Ca2 |
Maker | ShangHai diesel engine Co.,Ltd |
Rated power | 605kw |
Rated speed | 1500rpm |
Engine Type | Inline-6 Cylinders,4-stroke Diesel engine |
Bore x Stroke | 180mm x 215mm |
Combustion system | Direct Injection |
Aspiration | Turbocharged & Intercooled |
Cylinder Number | 6 |
Cooling System | Heat Exchanger |
Displacement | 32.8L |
Rotation | Anti-clockwise (facing Flywheel) |
Size of Flywheel Housing &Flywheel | SAE0 & 18 in |
Emissions | IMO Tier II |
Dry Weight | 3400kg |
Dimension(L x W x H) | 2551 x 1283 x 1898mm |

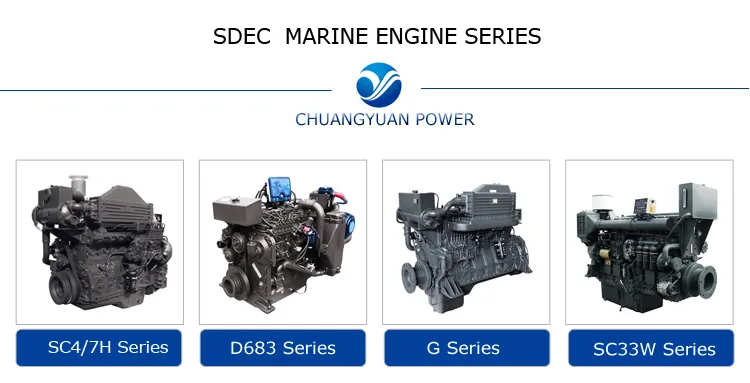

Series Model:
Engine Model | Rated Power/Speed | UNA Rated power/speed(CCS) |
SC33W600Ca2 | 441kw/1200rpm | 431kw/1200rpm |
SC33W680Ca2 | 500kw/13500rpm | 490kw/1350rpm |
SC33W735Ca2 | 540kw/1350rpm | 529kw/1350rpm |
SC33W765Ca2 | 561kw/1500rpm | 549kw/1500rpm |
SC33W825Ca2 | 605kw/1500rpm | 588kw/1500rpm |
SC33W880Ca2 | 650kw/1500rpm | 640kw/1500rpm |
SC33W950Ca2 |
|
|
SC33W1000Ca2 | 735kw/1500rpm | 725kw/1500rpm |
SC33W1100Ca2 |
|
