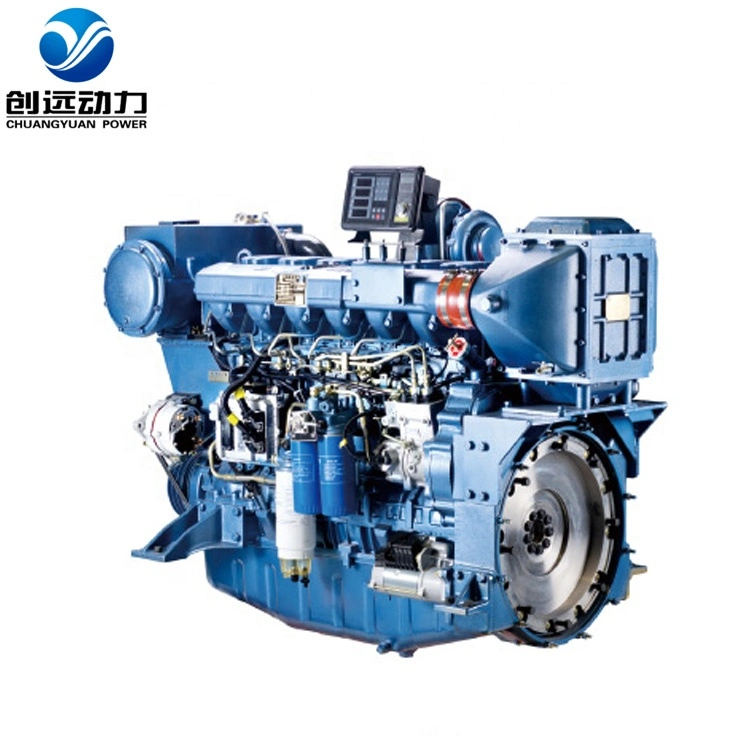

Weichai 4-Stroke Wp12 / Wp13 350HP Marine Diesel Engine
WEICHAI Engine Product Description Weichai WD10 / WD12 / WP12 series marine diesel engine has inherited the high-configure strategy of vehicle diesel engine , based on the chatacteristics and use for marine power configuration and requirements, with a new design optimized for the special dedicated......
Send Inquiry
Product Description
Weichai WD10 / WD12 / WP12 series marine diesel engine has inherited the high-configure strategy of vehicle diesel engine , based on the chatacteristics and use for marine power configuration and requirements, with a new design optimized for the special dedicated design and development of marine energy saving diesel engine.
It is the river shipping , fishing , boats and other vessels the best match official power.
Power range: 130-405Kw

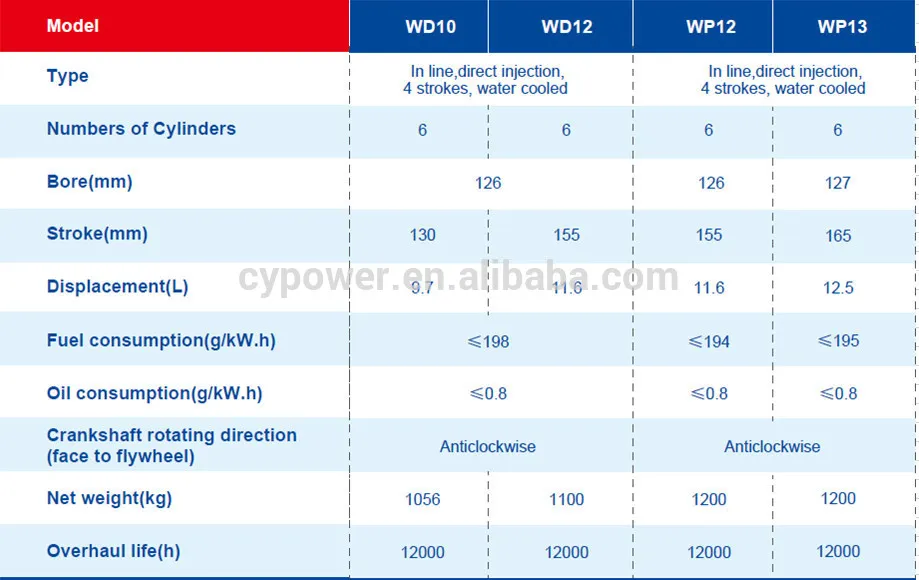

| ENGINE SPECIFICATION | |
| Engine Type | Inline-6 Cylinders, 4-stroke Diesel Engine |
| Bore x Stroke | 126 mm x 155 mm |
| Combution System | Direct Injection |
| Aspiration | Turbocharged/Turbocharged & Intercooled |
| Starting System | 24V Eletrical Starter |
| Cooling System | Heat Exchanger |
| Displacement | 11.596 L |
| Rotation | Anti-clockwise Facing Flywheel |
| Size of Flyingwheel Housing & Flywheel | SAE & 14 in. |
| Emissions | IMO TIER II |
| Dry Weight | 1100 kg |
| Dimension(L x W x H) | 1534 x 807 x 1512 mm |

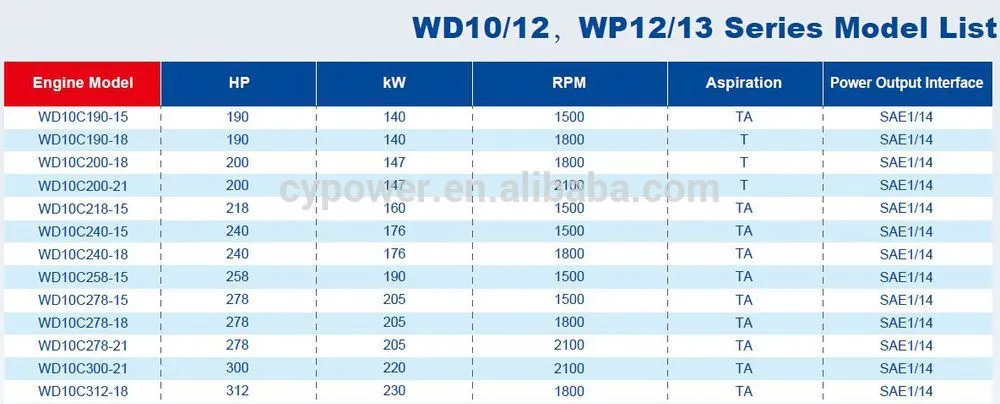

WD10 Series

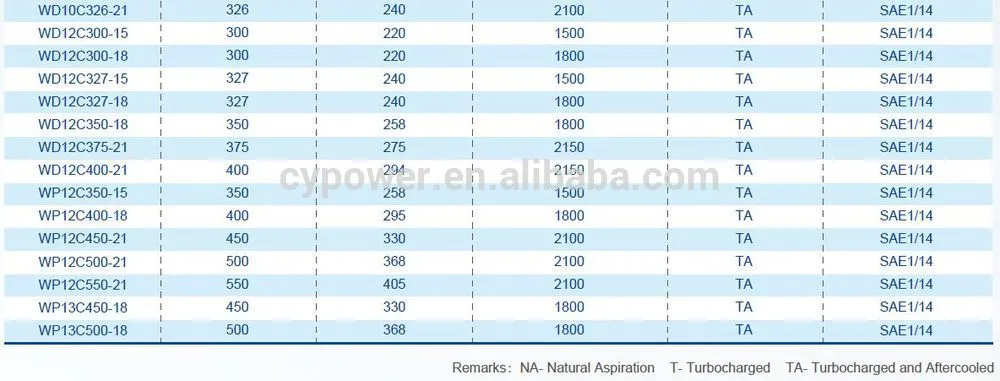

| Engine Model | Aspiration | Rated output(kw/hp) | Speed(r/min) |
| WD10C170-15 | T | 125/170 | 1500 |
| WD10C190-15 | T | 140/190 | 1500 |
| WD10C218-15 | TA | 160/218 | 1500 |
| WD10C240-15 | TA | 176/240 | 1500 |
| WD10C258-15 | TA | 190/258 | 1500 |
| WD10C278-15 | TA | 205/278 | 1500 |
| WD10C190-18 | T | 140/190 | 1800 |
| WD10C200-18 | TA | 147/200 | 1800 |
| WD10C240-18 | TA | 176/240 | 1800 |
| WD10C278-18 | TA | 205/278 | 1800 |
| WD10C312-18 | TA | 230/312 | 1800 |
| WD10C200-21 | T | 147/200 | 2100 |
| WD10C278-21 | TA | 205/278 | 2100 |
| WD10C300-21 | TA | 220/300 | 2100 |
| WD10C326-21 | TA | 240/326 | 2100 |
Engine
Auxiliary engine
match the Stamford / Marathon / KF / Leroy- somer generator
Zhong Shan Chuan Yuan Power Eouipment Co.Ltd. is the largest watercraft components supplier of Southeast China. Founded in 1989, it is located beside the No. 105 national highway, Xiaolan Town, Zhongshan City, Guangdong Province, China. It is the transfer station of Guangzhou-Zhuhai Railway, which is now under construction. As well, it is adjacent to Zhongjiang and Beijing-Zhuhai Highway, so its transportation is very convenient.
Up to now, we have Diesel Engine Component Co., Ltd, Machine Tool Co., Ltd, Foshan Huangqi Co., Ltd, Guangxi Guiping Watercraft Co., Ltd and Guangxi Electricity Generation Equipment Factory as our subordinate enterprises and repair workshop, training center, product exhibition hall and large-scale warehouse. At the same time, we have consummate sales and service network system as well as a group of high-qualified technicians what's more, we are sales agent of some world-famous factories.
From now on, we will adhere to the tenet of Credit First, Customer Paramount, Practical and Honest, Top Service and No Fake New Products to perfect inner management, enhance work efficiency and improve market competitive strength and try our best effort to provide our customers with products of high quality and reasonable price.
We sincerely welcome both old and new customers to cooperate with us for mutual better development!
