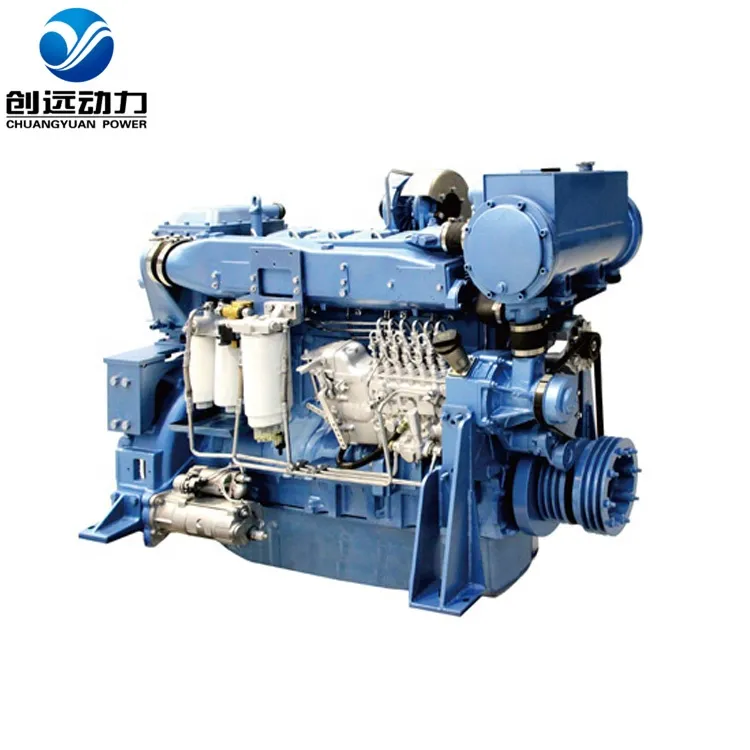

Wp12 / Wp13 350HP 4 Stroke Marine Diesel Engine
WEICHAI Engine Product Description Weichai WD10 / WD12 / WP12 series marine diesel engine has inherited the high-configure strategy of vehicle diesel engine , based on the chatacteristics and use for marine power configuration and requirements, with a new design optimized for the special dedicated......
Send Inquiry
Product Description
Weichai WD10 / WD12 / WP12 series marine diesel engine has inherited the high-configure strategy of vehicle diesel engine , based on the chatacteristics and use for marine power configuration and requirements, with a new design optimized for the special dedicated design and development of marine energy saving diesel engine.
It is the river shipping , fishing , boats and other vessels the best match official power.
Power range: 130-405Kw

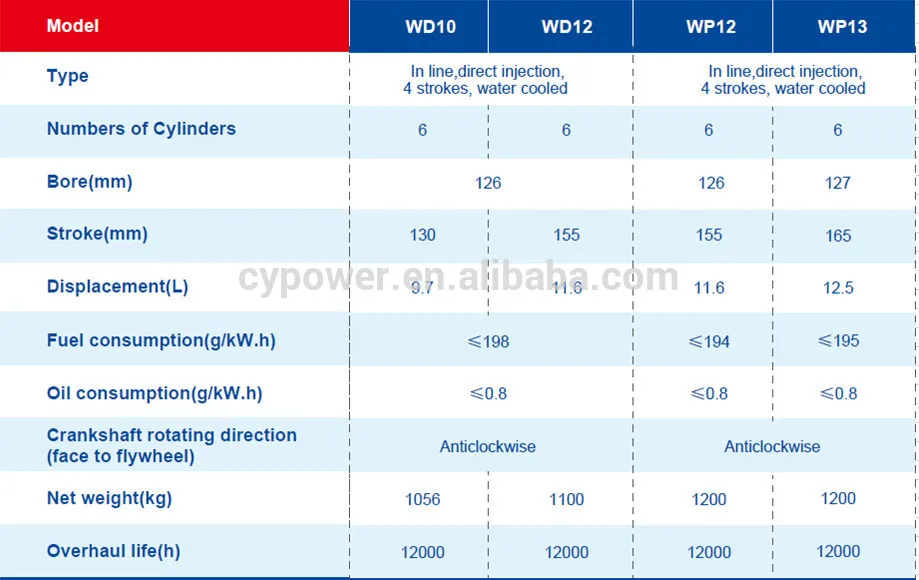

| ENGINE SPECIFICATION | |
| Engine Type | Inline-6 Cylinders, 4-stroke Diesel Engine |
| Bore x Stroke | 126 mm x 130 mm |
| Combution System | Direct Injection |
| Aspiration | Turbocharged/Turbocharged & Intercooled |
| Starting System | 24V Eletrical Starter |
| Cooling System | Heat Exchanger |
| Displacement | 9.726L |
| Rotation | Anti-clockwise Facing Flywheel |
| Size of Flyingwheel Housing & Flywheel | SAE & 14 in. |
| Emissions | IMO TIER II |
| Dry Weight | 1050 kg |
| Dimension(L x W x H) | 1530 x 820 x 1420 mm |

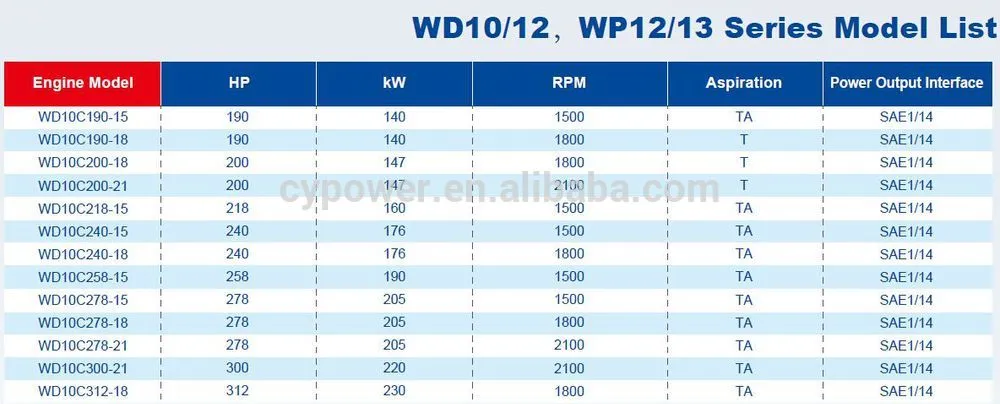

WD10 Series
| Engine Model | Aspiration | Rated output(kw/hp) | Speed(r/min) |
| WD10C170-15 | T | 125/170 | 1500 |
| WD10C190-15 | T | 140/190 | 1500 |
| WD10C218-15 | TA | 160/218 | 1500 |
| WD10C240-15 | TA | 176/240 | 1500 |
| WD10C258-15 | TA | 190/258 | 1500 |
| WD10C278-15 | TA | 205/278 | 1500 |
| WD10C190-18 | T | 140/190 | 1800 |
| WD10C200-18 | TA | 147/200 | 1800 |
| WD10C240-18 | TA | 176/240 | 1800 |
| WD10C278-18 | TA | 205/278 | 1800 |
| WD10C312-18 | TA | 230/312 | 1800 |
| WD10C200-21 | T | 147/200 | 2100 |
| WD10C278-21 | TA | 205/278 | 2100 |
| WD10C300-21 | TA | 220/300 | 2100 |
| WD10C326-21 | TA | 240/326 | 2100 |
Engine
Auxiliary engine
match the Stamford / Marathon / KF / Leroy- somer generator
