Product Description

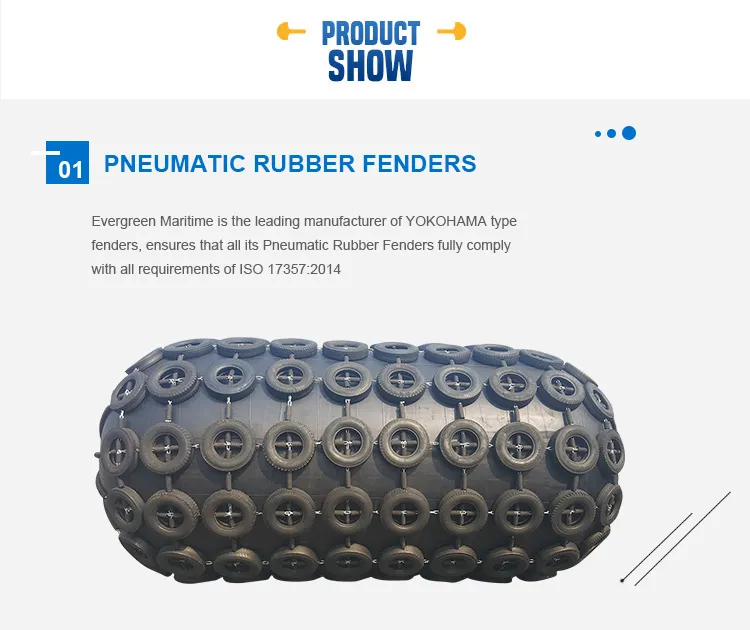

YOKOHAMA TYPE FENDER
Performace table for P50 & P80 Pneumatic Fenders
| Nominal size mm | Pneumatic 50 Guaranteed energy absorption (KN.M) | Pneumatic 50 Reaction force at GEA deflection (KN) | Pneumatic 50 Hull pressure at GEA deflection (KN) | Pneumatic 80 Guaranteed energy absorption (KN.M) | Pneumatic 80 Reactionforce at GEA deflection (KN) | Pneumatic 80 Hull pressureat GEA deflection (KN) |
| Dia x Length | 60% deflection | Tolerance ±10% | 60% deflection | Tolerance ±10% | ||
| 500×1000 | 6 | 64 | 132 | 8 | 85 | 174 |
| 600×1000 | 8 | 74 | 126 | 11 | 98 | 166 |
| 700×1500 | 17 | 137 | 135 | 24 | 180 | 177 |
| 1000×1500 | 32 | 182 | 122 | 45 | 239 | 160 |
| 1000×2000 | 45 | 257 | 132 | 63 | 338 | 174 |
| 1200×2000 | 63 | 297 | 126 | 88 | 390 | 166 |
| 1350×2500 | 102 | 427 | 130 | 142 | 561 | 170 |
| 1500×3000 | 153 | 579 | 132 | 214 | 761 | 174 |
| 1700×3000 | 191 | 639 | 128 | 267 | 840 | 168 |
| 2000×3500 | 308 | 875 | 128 | 430 | 1150 | 168 |
| 2500×5000 | 663 | 1381 | 137 | 925 | 1815 | 180 |
| 2500×5500 | 943 | 2019 | 148 | 1317 | 2653 | 195 |
| 3300×4500 | 1175 | 1884 | 130 | 1640 | 2476 | 171 |
| 3300×6500 | 1814 | 3015 | 146 | 2532 | 3961 | 191 |
Remarks:
- Initial pressure 0.05Mpa.
- Tolerance between Reation force & Energy absorption: ±10%
- Weight Tolerance: ±10%
- Special dimensions can be customized.
- All the Fittings are Hot-galvanized and Antirust Treatment.
