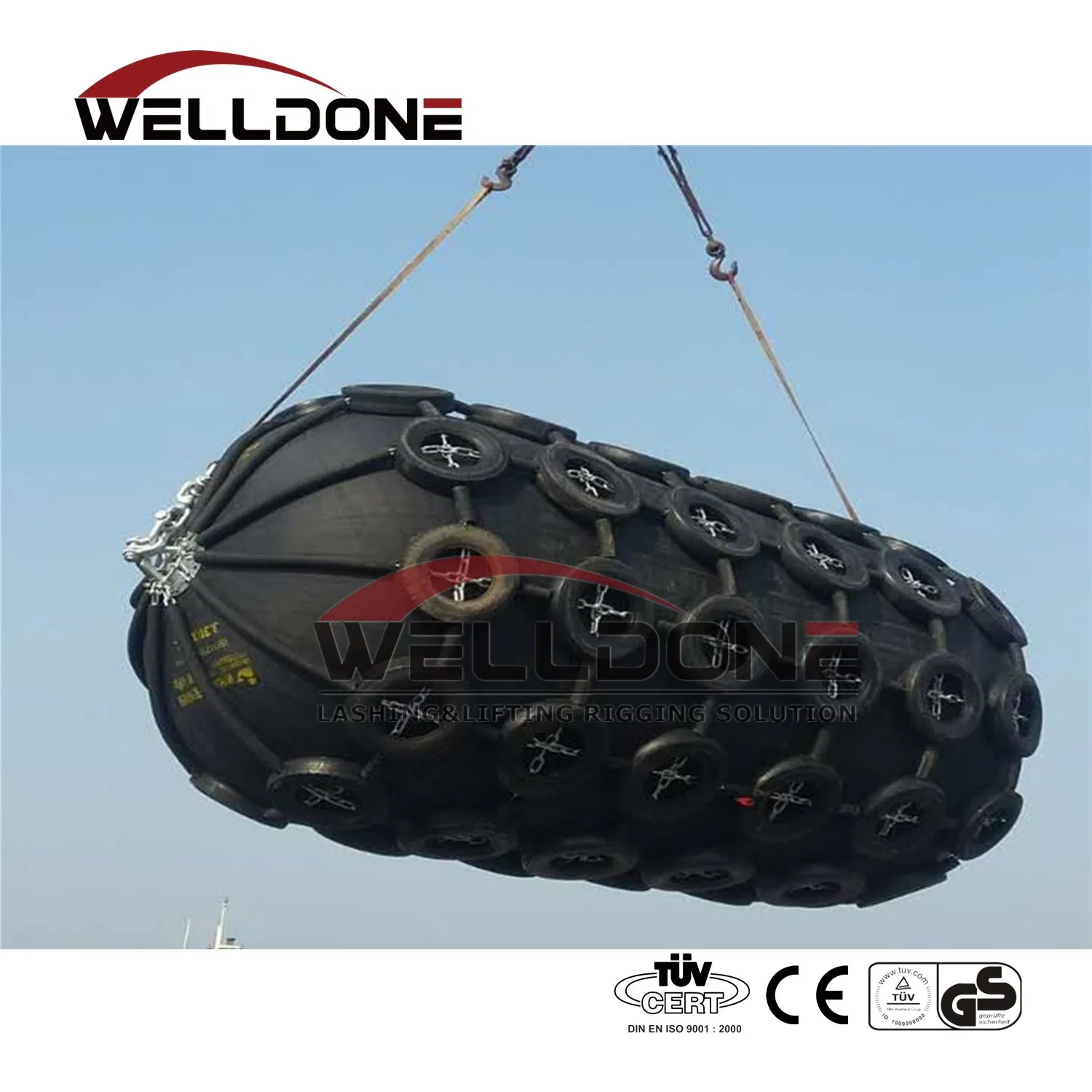

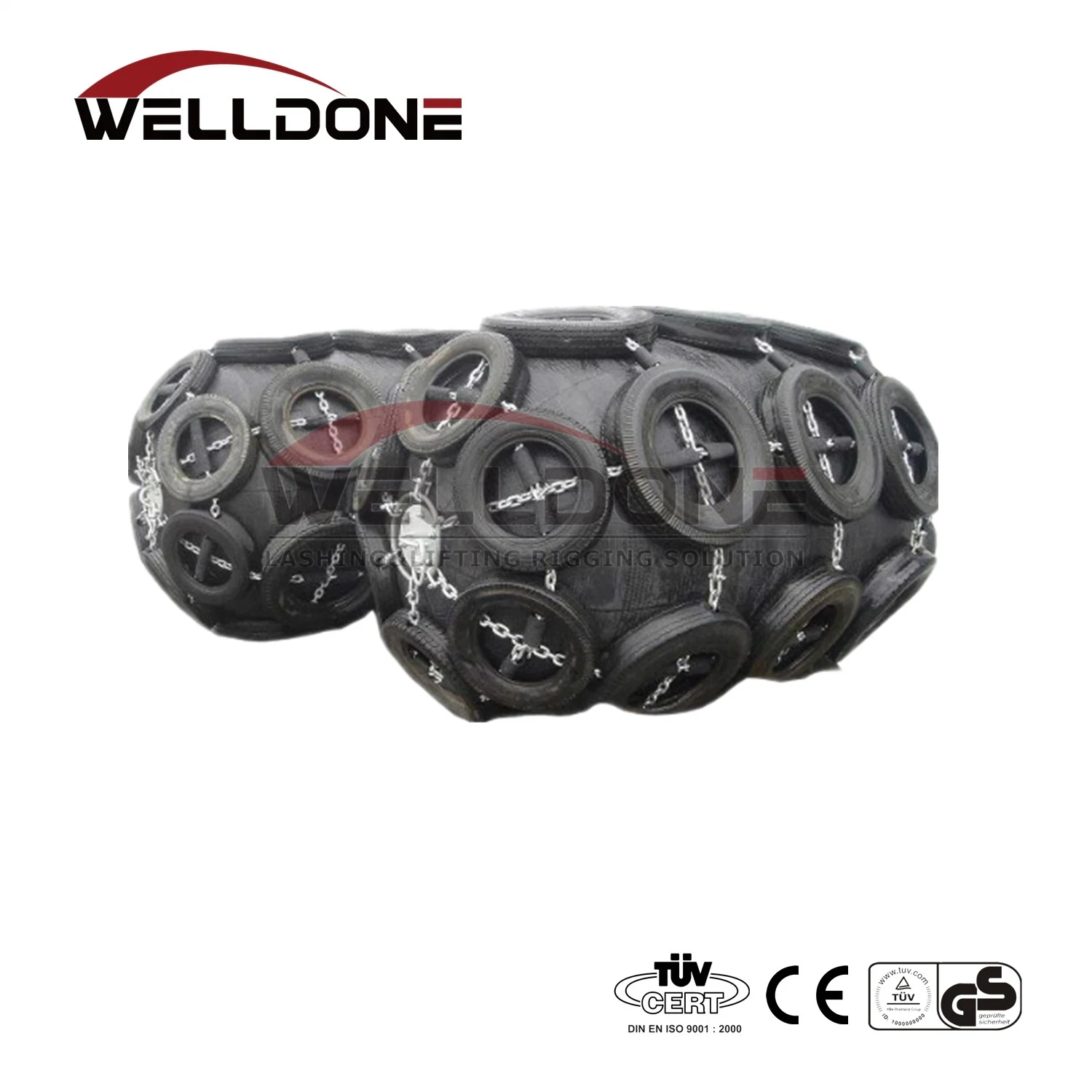

Marine Pneumatic Rubber Fender with Galvanized Chain and Tire

Product Description

Qingdao Well Done Imp.&Exp. Co., Ltd ---Chinese Manufacturer, Supplier, Factory.
An ISO 9001 certified firm, Lloyd's register, specializes in the field of lifting and hoisting equipment, webbing and round sling, ratchet tie down, lashing equipment and cargo control series, chain and chain sling, wire rope and wire rope sling, material handling, rigging hardware,marine rigging products etc.

Customer praise and trade documents
Marine Pneumatic Rubber Fender with Galvanized Chain and Tire

Marine Pneumatic Rubber Fender with Galvanized Chain and Tire

Product Description

Nominal size mm	Pneumatic 50 Guaranteed energy absorption (KN.M)	Pneumatic 50 Reaction force at GEA deflection (KN)	Pneumatic 50 Hull pressure at GEA deflection (KN)	Pneumatic 80 Guaranteed energy absorption (KN.M)	Pneumatic 80 Reactionforce at GEA deflection (KN)	Pneumatic 80 Hull pressureat GEA deflection (KN)
Dia x Length	60% deflection	Tolerance ±10%		60% deflection	Tolerance ±10%
500×1000	6	64	132	8	85	174
600×1000	8	74	126	11	98	166
700×1500	17	137	135	24	180	177
1000×1500	32	182	122	45	239	160
1000×2000	45	257	132	63	338	174
1200×2000	63	297	126	88	390	166
1350×2500	102	427	130	142	561	170
1500×3000	153	579	132	214	761	174
1700×3000	191	639	128	267	840	168
2000×3500	308	875	128	430	1150	168
2500×5000	663	1381	137	925	1815	180
2500×5500	943	2019	148	1317	2653	195
3300×4500	1175	1884	130	1640	2476	171
3300×6500	1814	3015	146	2532	3961	191

Remarks:

Initial pressure 0.05Mpa.
Tolerance between Reaction force & Energy absorption: ±10%
Weight Tolerance: ±10%
Special dimensions can be customized.
All the Fittings are Hot-galvanized and Antirust Treatment.

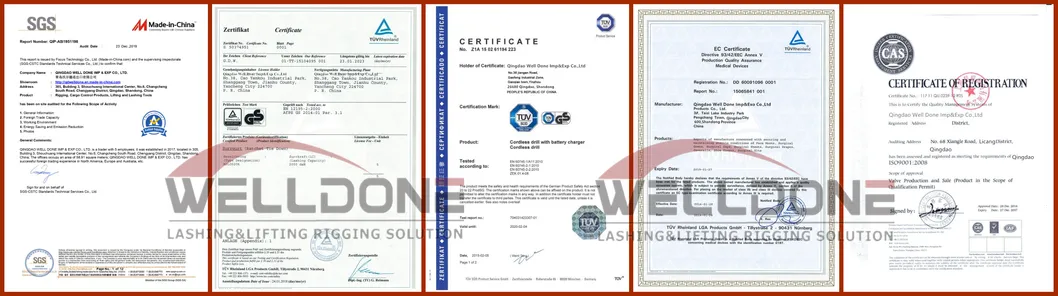

Certifications
Marine Pneumatic Rubber Fender with Galvanized Chain and Tire

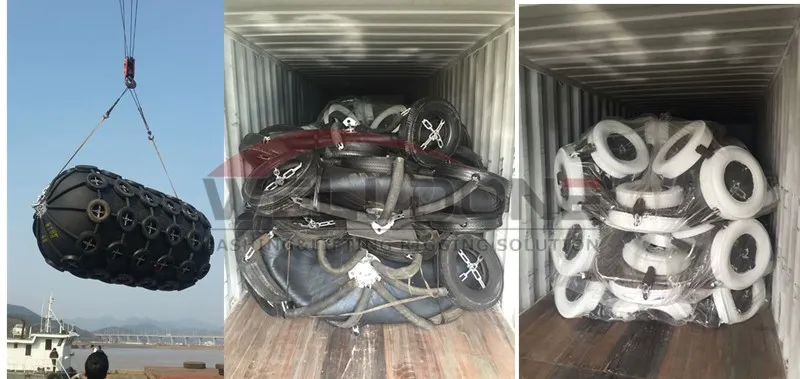

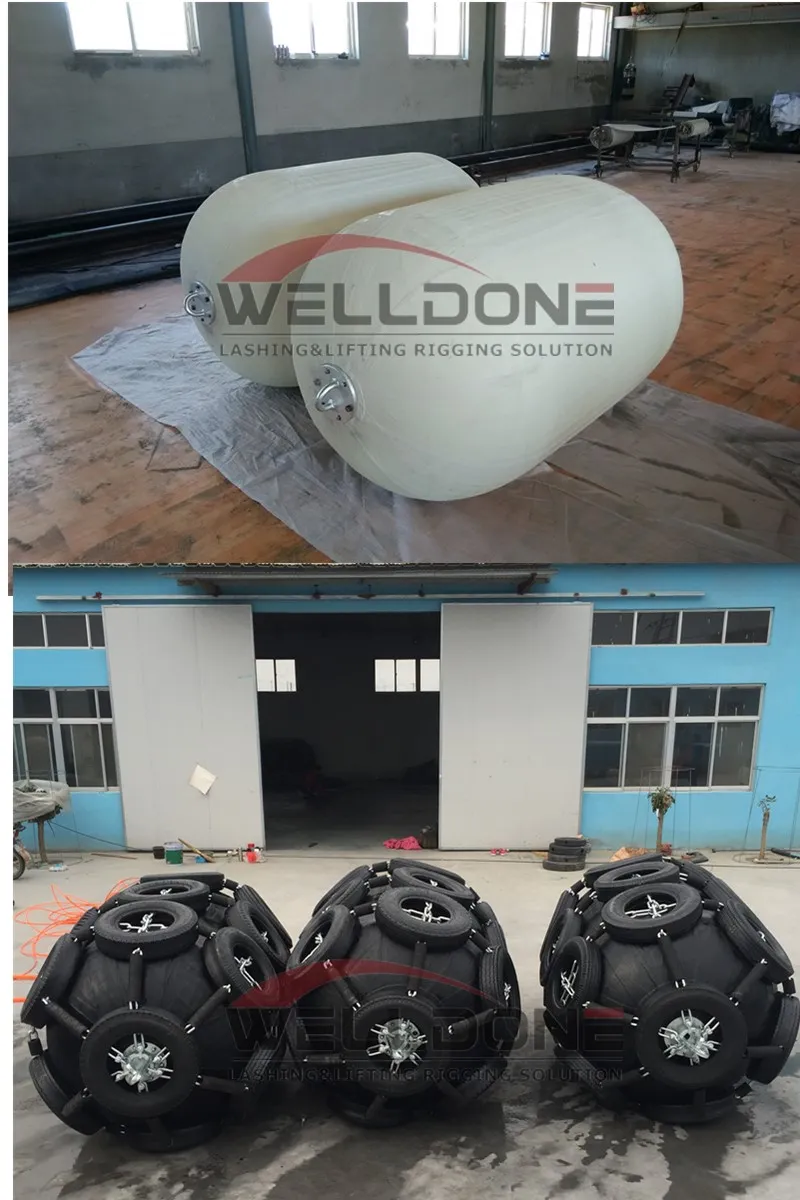

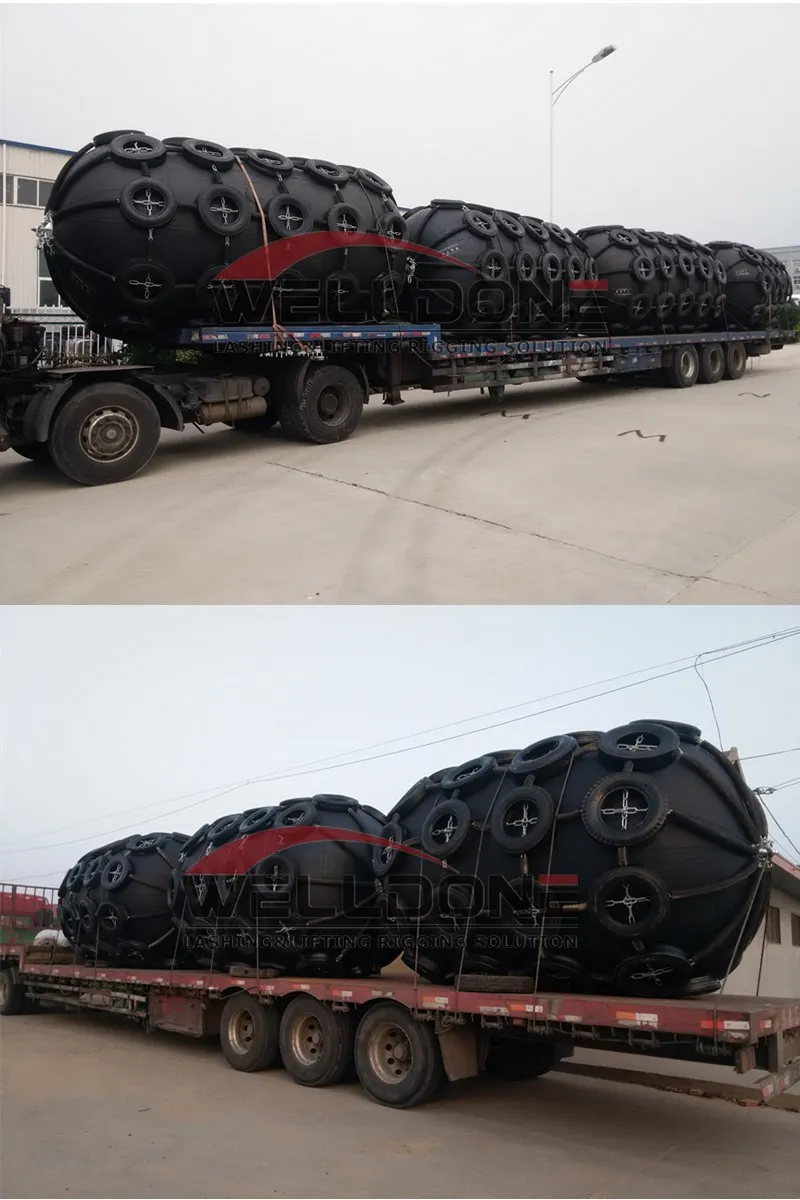

Factory/Pakage/Products picture
