Solid Floating Foam Filled Rubber Fenders with CCS Lr BV Gldnv

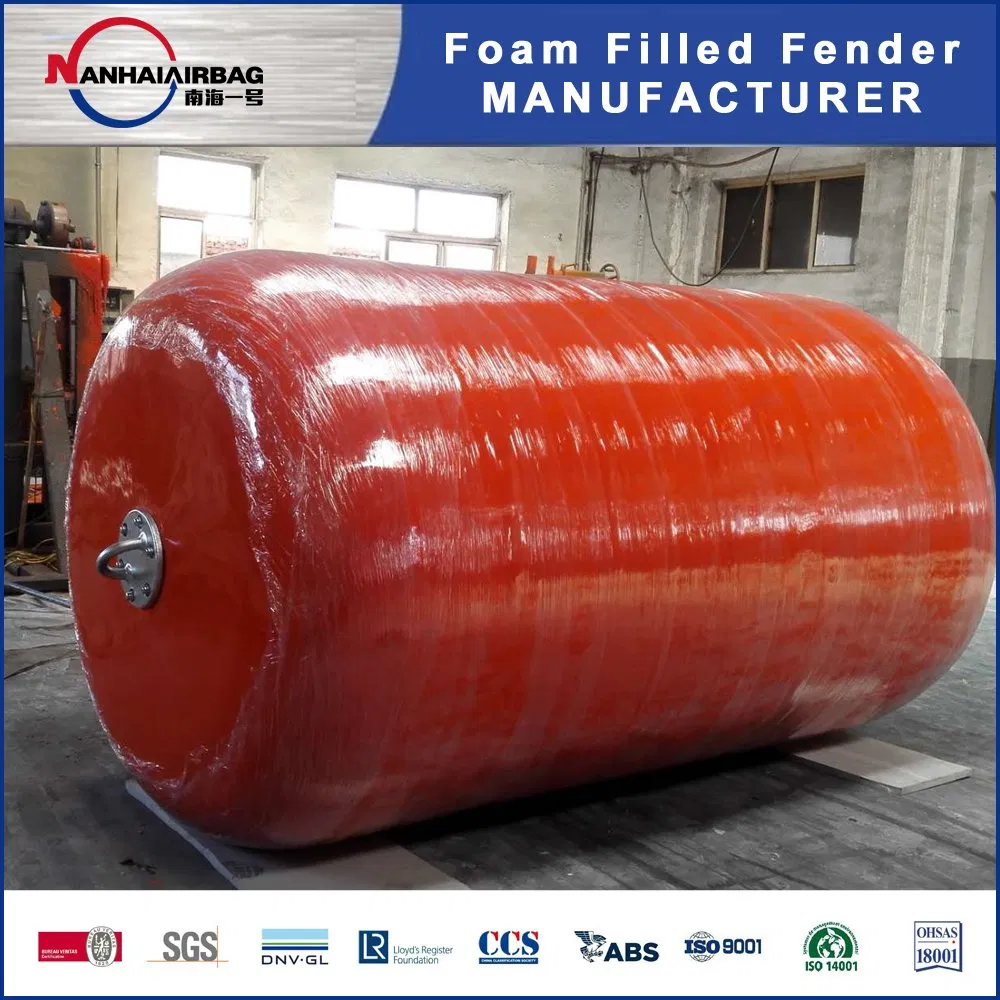

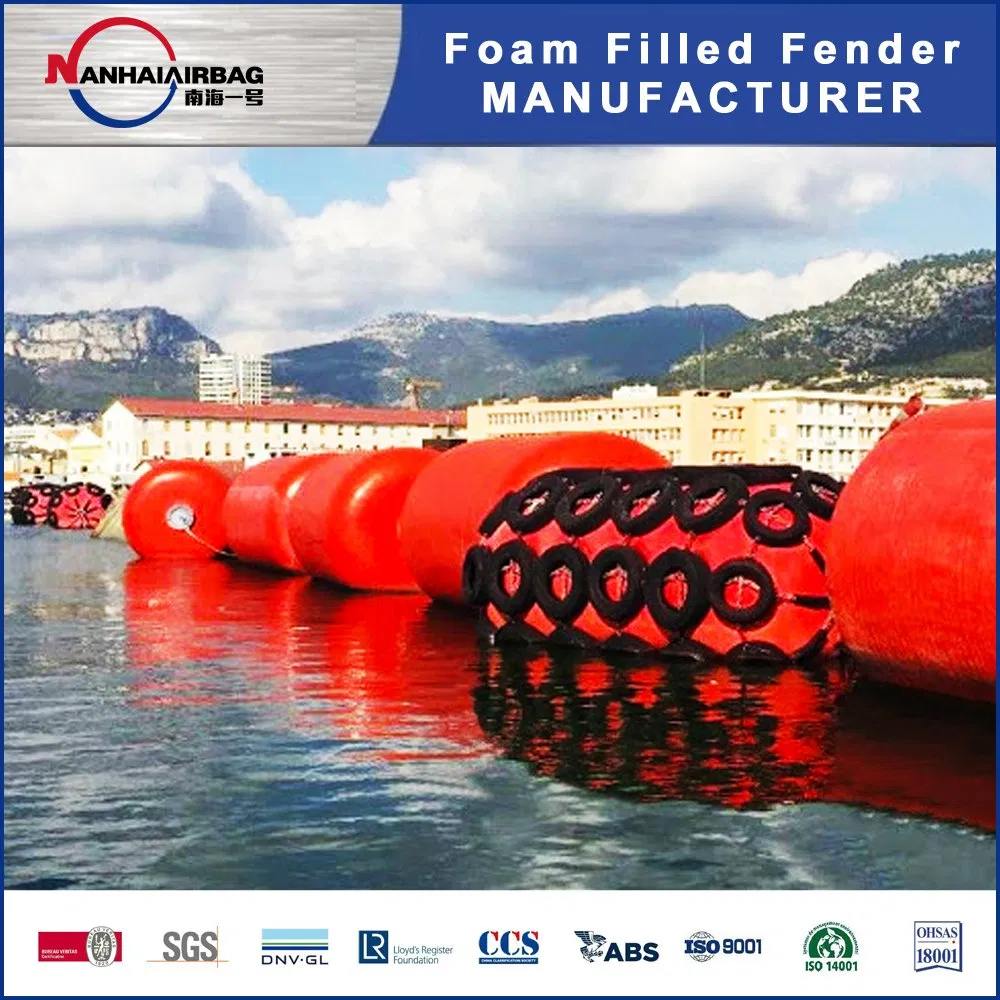

NANHAI - EVA FOAM FLOATING FENDER

NanHai-Foam Fender Using lightweight high-resilient foam as buffer medium.

The outer layer of the NanHai-Foam Fender adopts a new technique of spayed polyurethane foam developed in recent years, which can well increase the elasticity and corrosion resistance of fenders.The product has the characteristics of softness, high elasticity, high adhesion and maximum anti-penetration, low temperature resistance and aging resistance, which finally realize the economic value of the product itself. Without the risk of explosion, it has high security and works well as an anti-collision product.

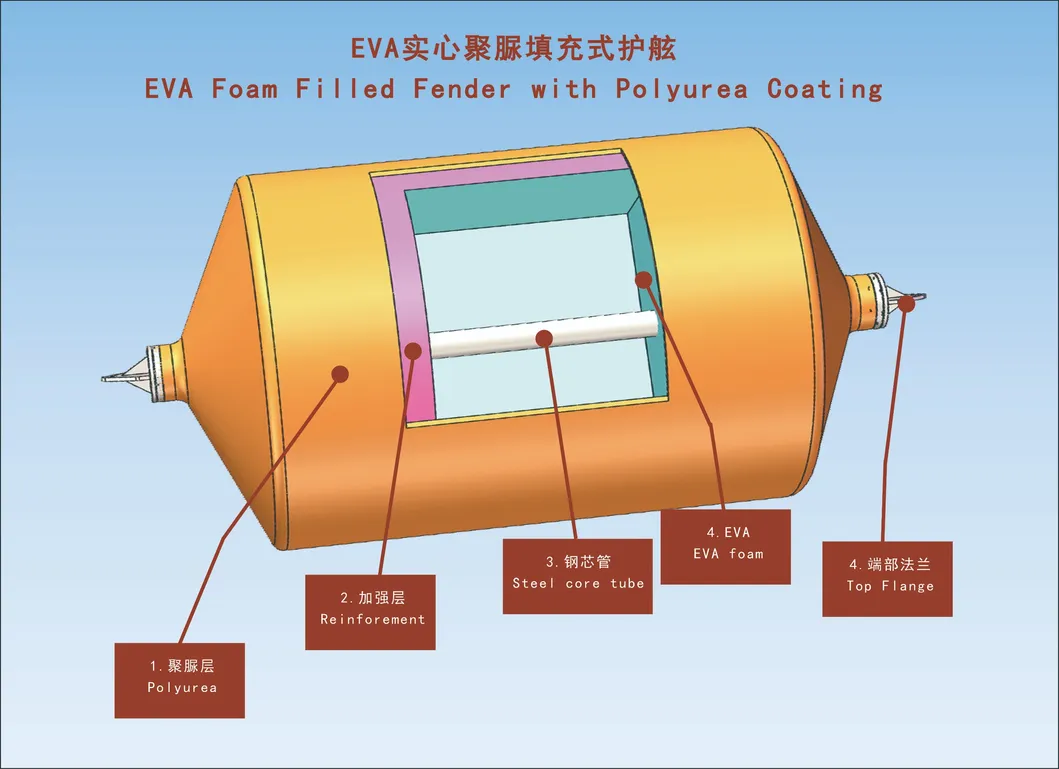

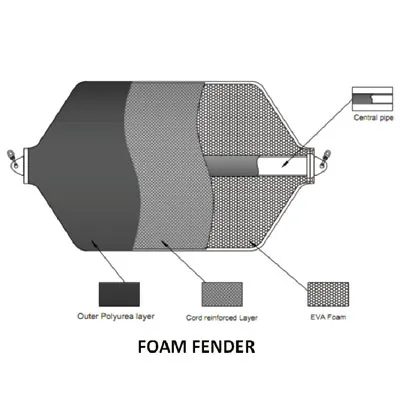

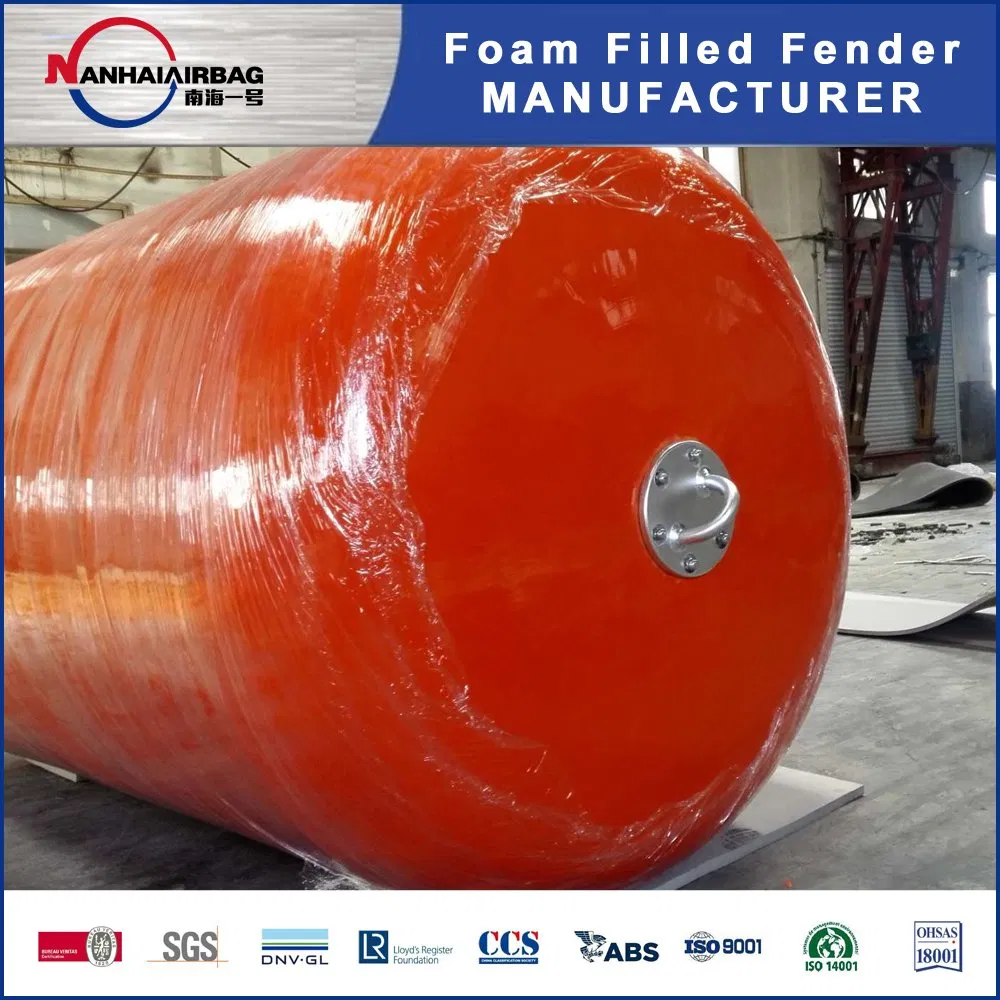

THE STRUCTURE OF NANHAI-FOAM FENDER


Polyethylene foam - EVA is a thermally laminated 100% closed-cell foam core with high energy absorption, low reaction force, long time used and will not burst. This manufacturing process does not use adhesives, and it is a decomposed environmentally friendly material.

Inner layer: Filled with Closed-cell EVA foam plastics core to absorb elastic energy, which never sink

Middle layer: Outer rubber and high strength polyamide cord fabric are adopted to better seal the inner EVA foam

Outer layer: Spraying with adjustable new polyurea elastic maerial, the polyurea coating is permanent and that protect the outer layer of fender from chemical corrosion resistance. It has more durability than rubber because it can reduce the chance of denting and scratches and will not get soften or fragile in hot or cold temperature

Ends: Equipped with galvanized flange, swivel and can add a protective layer consist of chain and tire net

Tyre net sheath: Receiving special treatment, the tyres all have the advantages of firmness, durability and a beautiful surface, which can extend the fender's service life

MAJOR STRENGTHS OF NANHAI-FOAM FENDER

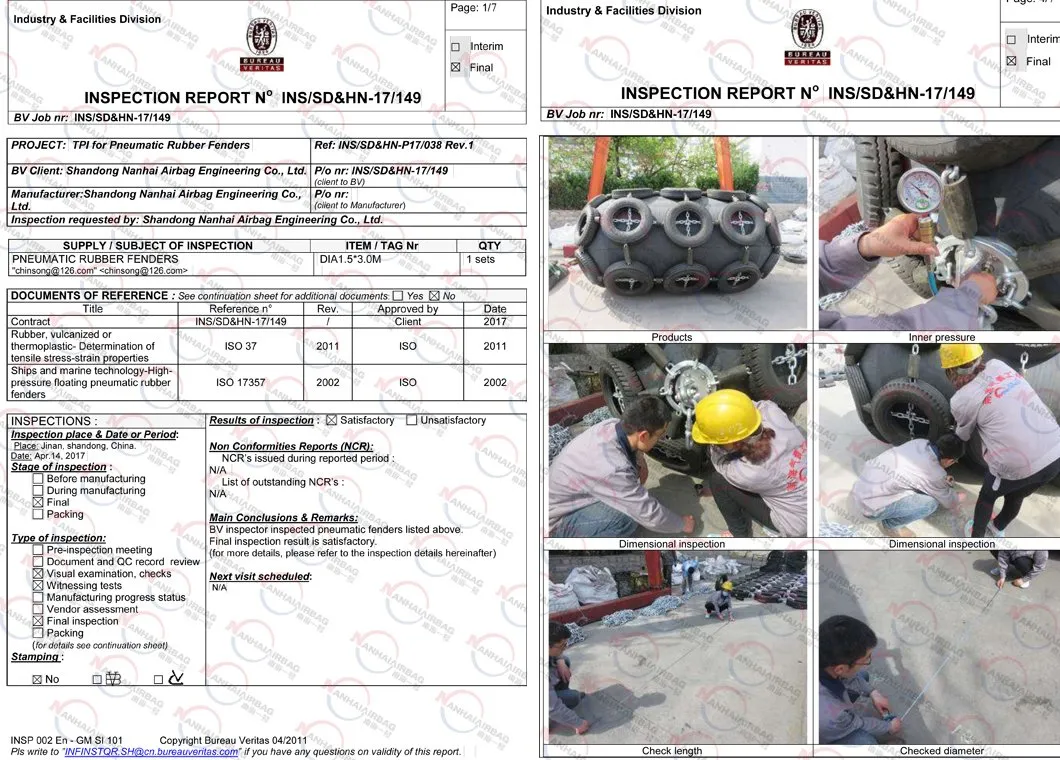

We have laid down a set of criteria according to years of experimental data and production experience, and commissioned third-party technical and quality department to test the EVA solid floating fender, to ensure the fender's performance and quality can meet the standard. All products have to pass strict inspection before they go out.

1. Strong floating performance, lower weight, excellent energy absorption, flexible install location without being influenced by tidal range

2. Maintainness free, do not need check or air inflation during use, and its lifetime can up to 10 -15 years

3. Polyurea protection layer has the resistance of friction, extrusion, oil, sea water and acid& alkali

4. Reliable performance, convenient installation, aesthetic functionalism, no risk of explosion and high safety

5. Better energy absrption performance and lower reaction force. The increase of reaction force is obvious at 60% deflection

6. The most widely used in ship fenders. With various specification and flexible design, can be produced asper client's special request

7. The fender's appearance can be customized to different colors. Products are smooth and beautiful with abvious marks

8. Hung by chains on both ends, can be easily installed and moved

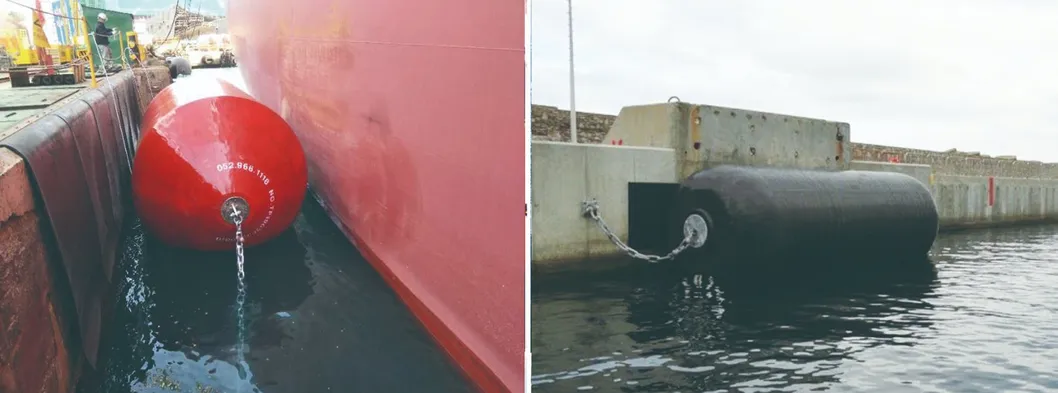

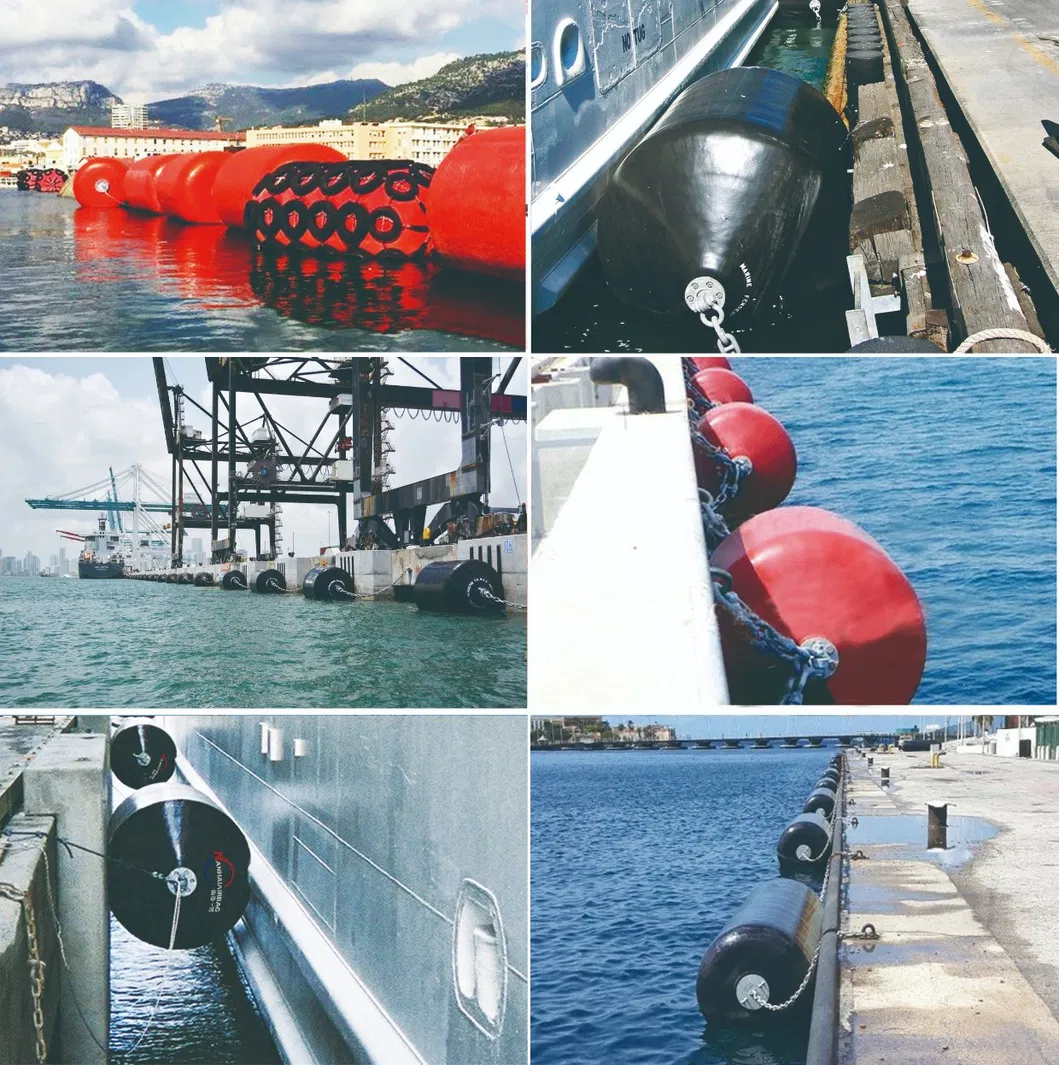

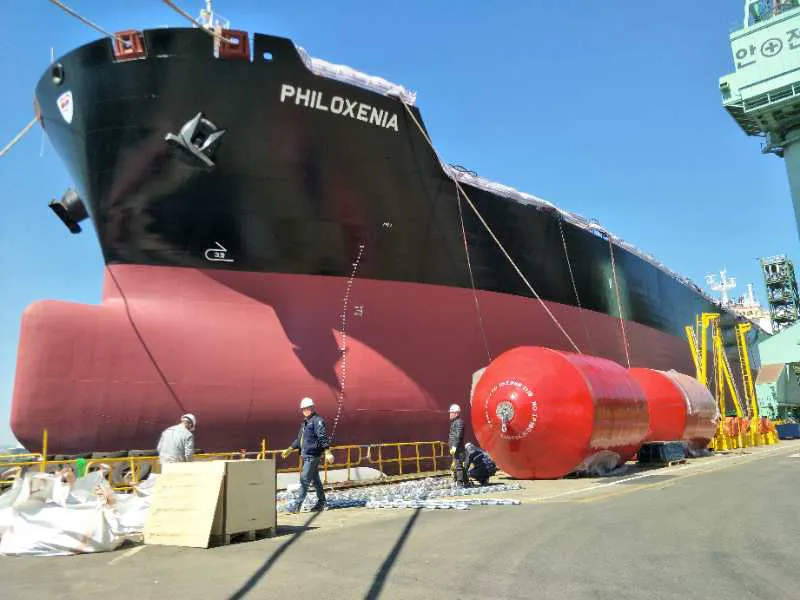

APPLICATION OF NANHAI-FOAM FENDER

1. STD & STS

2. Better applicability as STS fender

3. Should be applied at gravity pier dock, especially dock with large tide scope

4. The very large floating fender can increase the berthing depth to upgrade the dock

5. As pier fender to protect the pier and ship from damage

6. Applied in naval special warship berthing to provide safety

7. As the essential protective equipment, have flexible function of coping with the emergency

8. The floating fender can either be used aloneor to make up protection systems with other defences to set up good safety measures

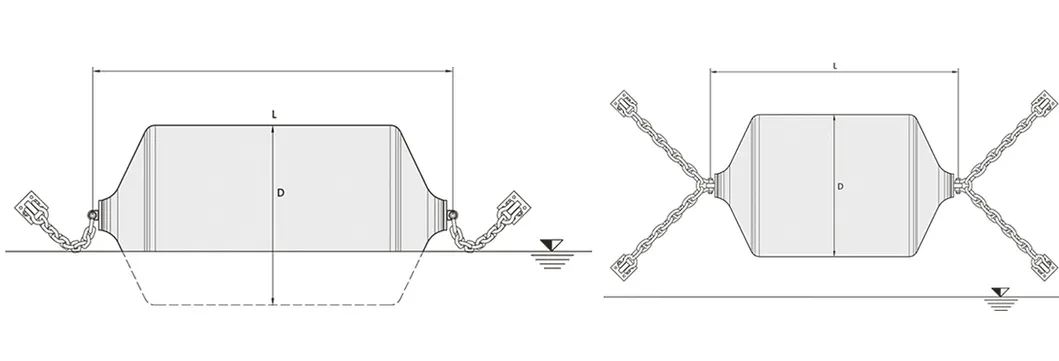

NANHAI-FOAM FENDER SPECIFICATION
